Note. This section
assumes you are
using the Standard
Preassembled Cabinet
from Wavetronix. If
you bought individual
Click modules instead,
see Click 100–400
Series User Guide and
support document
295, How to Assemble
the Power Plant. If
you are not using
Wavetronix devices,
contact your dealer or
visit the knowledge
base at www.
wavetronix.com.
20
SmartSensor HD User Guide
•

Setting up the pole-mount box

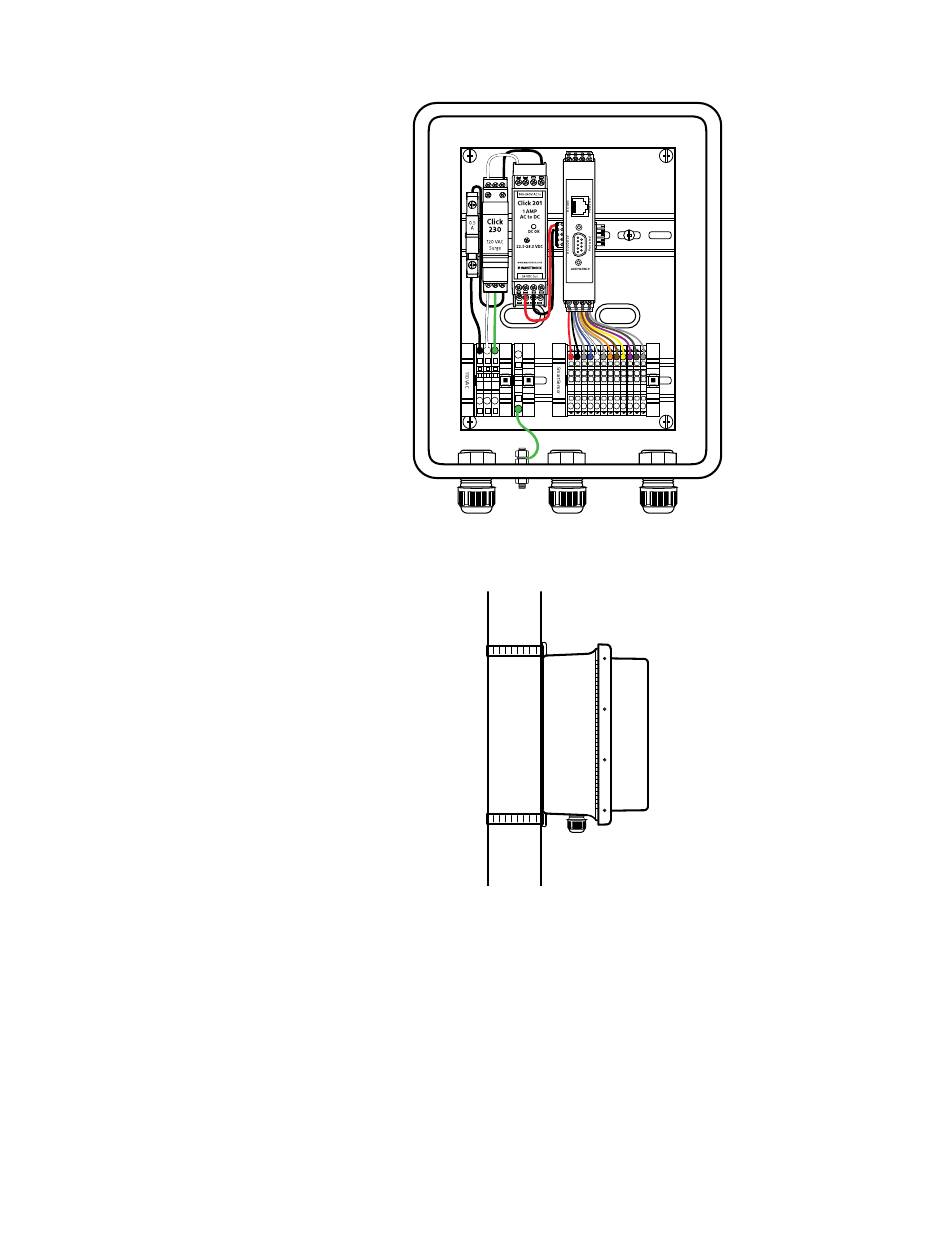

Figure 14. Standard Preassembled Cabinet (pole-mount box)
Figure 15. Attaching the pole-mount box
1
Find the mounting brackets that were included in the package and
attach them to the back of the Standard Preassembled Cabinet.
2
Use Band-It or a similar clamping system to attach the Standard Pre-
assembled Cabinet to the pole.
Lightning
Surge
Protection
W
Click!
200
L N G
+DC -DC GND 485- 485+ GND RTS CTS TD RD GND GND
