Using the Automatic Lane sidebar window

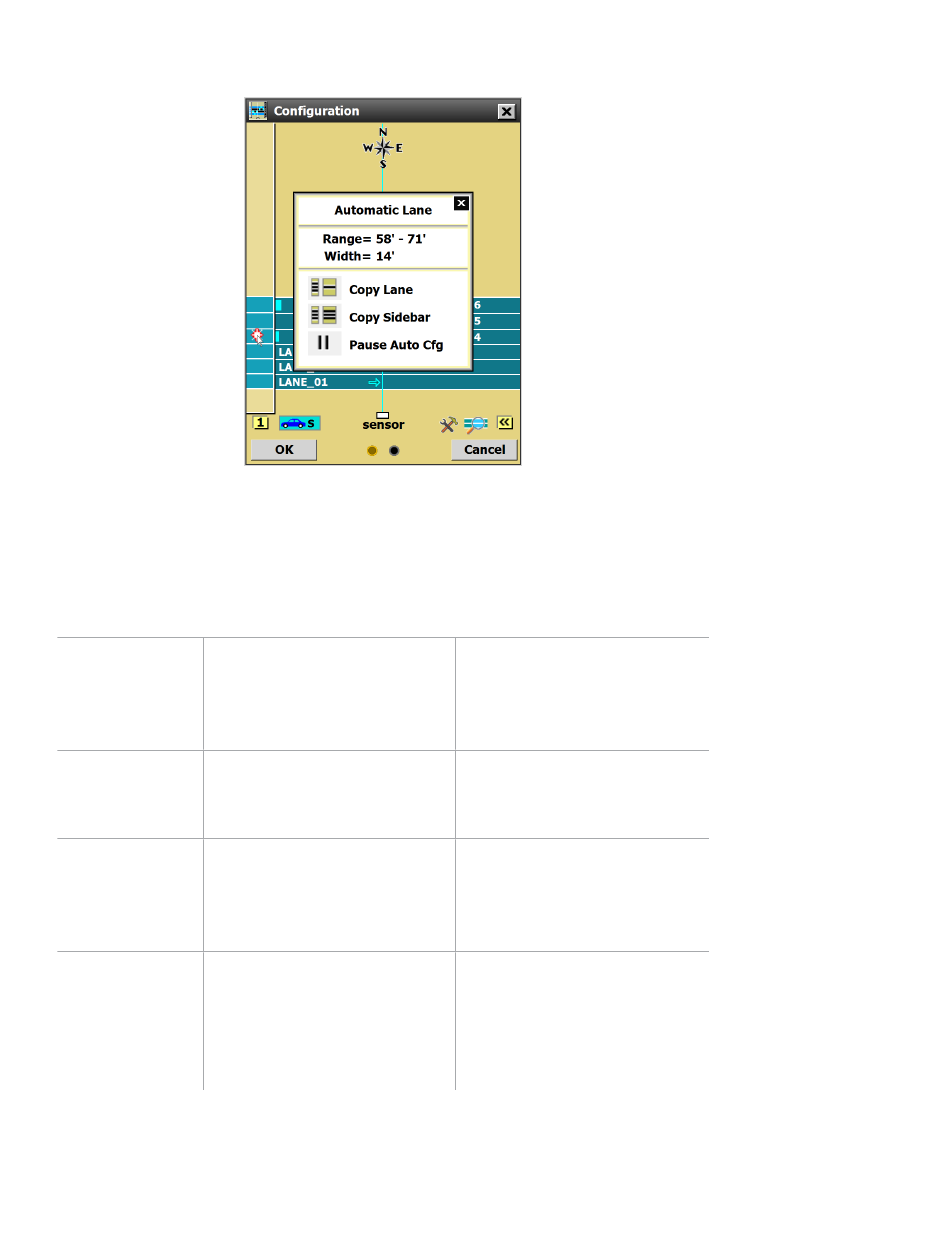

Figure 62. Sidebar 1 (automatic configuration) window
When sidebar 1 (automatic configuration) is open, click on one of the
lanes in the sidebar to open this window.
Setting Description
Range & Shows the size and
Width
placement of the lanes
(Range refers to the
distance from the sensor).
Copy Lane
Saves the lane you clicked
on to the edit area.
Copy Sidebar
Saves all the lanes currently
shown in the sidebar to the
edit area.
Pause Auto This temporarily halts the
Config
automatic configuration
process; no new lanes will
be placed until you click
again to resume.
Sidebar 1 shoulder area window
If you click the shoulder area, instead of a lane, it will open a window
with just the range/width of the shoulder and the Copy Sidebar option.
Details
Can't be changed.
An automatic lane will
appear blue; a saved lane
turns black.
This is the recommended
method for saving
automatically configured
lanes to your configuration.
Use this if, during the
configuration process,
there are traffic events you
don't want to be part of the
sensor's calculations.
