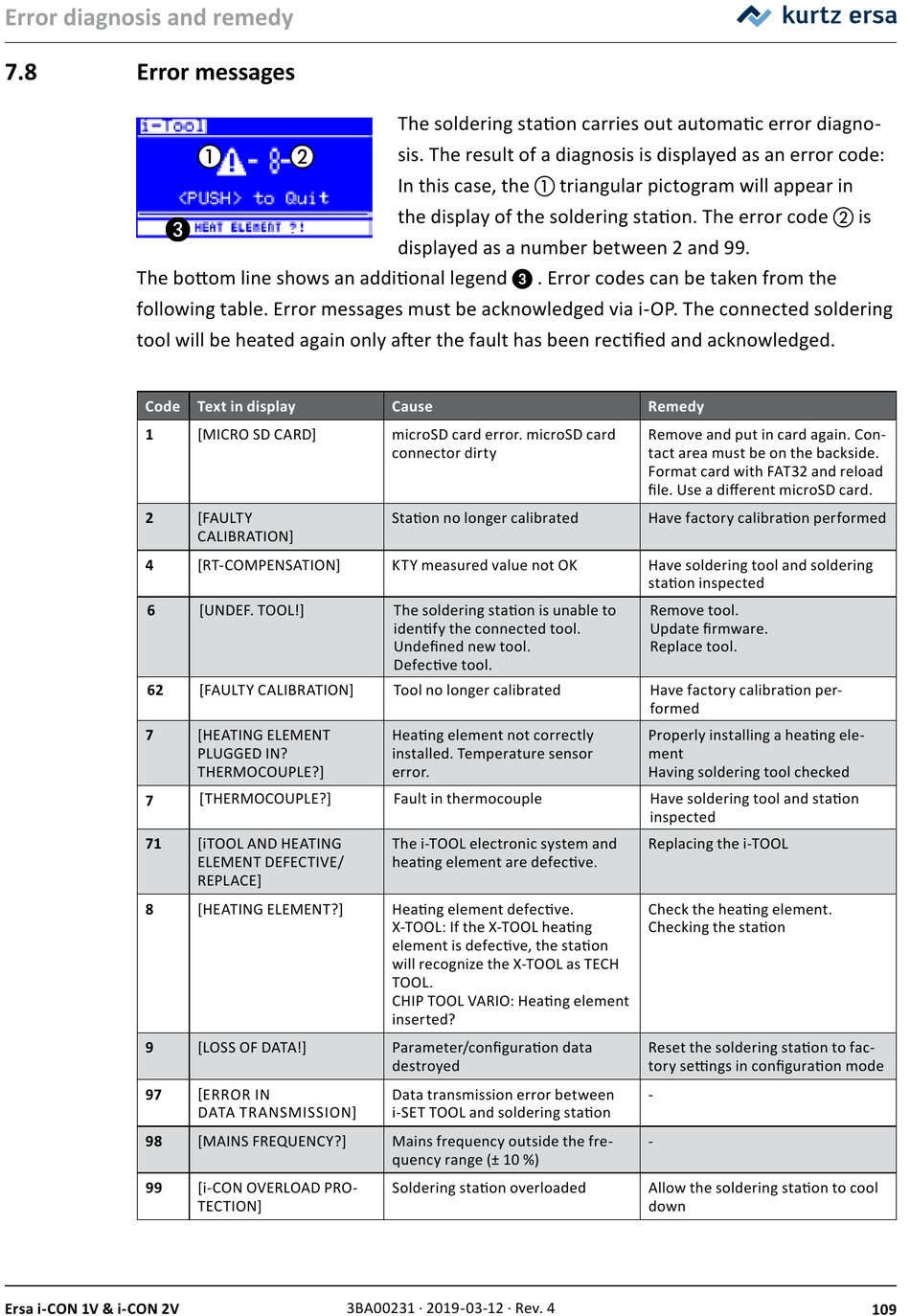

Error diagnosis and remedy
7.8

Error messages

The bottom line shows an additional legend ➌ . Error codes can be taken from the
following table. Error messages must be acknowledged via i-OP. The connected soldering
tool will be heated again only after the fault has been rectified and acknowledged.
Code
1
2
4
6
62
7
7
71
8
9
97
98
99
Ersa i-CON 1V & i-CON 2V
Text in display
[MICRO SD CARD]
[FAULTY
CALIBRATION]
[RT-COMPENSATION]
[UNDEF. TOOL!]
[FAULTY CALIBRATION]
[HEATING ELEMENT
PLUGGED IN?
THERMOCOUPLE?]
[THERMOCOUPLE?]
[iTOOL AND HEATING
ELEMENT DEFECTIVE/
REPLACE]
[HEATING ELEMENT?]
[LOSS OF DATA!]
[ERROR IN
DATA TRANSMISSION]
[MAINS FREQUENCY?]
[i-CON OVERLOAD PRO-
TECTION]
3BA00231 · 2019-03-12 · Rev. 4
The soldering station carries out automatic error diagno-
sis. The result of a diagnosis is displayed as an error code:
In this case, the a triangular pictogram will appear in
the display of the soldering station. The error code b is
displayed as a number between 2 and 99.
Cause
microSD card error. microSD card
connector dirty
Station no longer calibrated
KTY measured value not OK
The soldering station is unable to
identify the connected tool.
Undefined new tool.
Defective tool.
Tool no longer calibrated
Heating element not correctly
installed. Temperature sensor
error.
Fault in thermocouple
The i-TOOL electronic system and
heating element are defective.
Heating element defective.
X-TOOL: If the X-TOOL heating
element is defective, the station
will recognize the X-TOOL as TECH
TOOL.
CHIP TOOL VARIO: Heating element
inserted?
Parameter/configuration data
destroyed
Data transmission error between
i-SET TOOL and soldering station
Mains frequency outside the fre-
quency range (± 10 %)
Soldering station overloaded
Remedy
Remove and put in card again. Con-
tact area must be on the backside.
Format card with FAT32 and reload
file. Use a different microSD card.
Have factory calibration performed
Have soldering tool and soldering
station inspected
Remove tool.
Update firmware.
Replace tool.
Have factory calibration per-
formed
Properly installing a heating ele-
ment
Having soldering tool checked
Have soldering tool and station
inspected
Replacing the i-TOOL
Check the heating element.
Checking the station
Reset the soldering station to fac-
tory settings in configuration mode
-
-
Allow the soldering station to cool
down
109
