Functional description
6.7

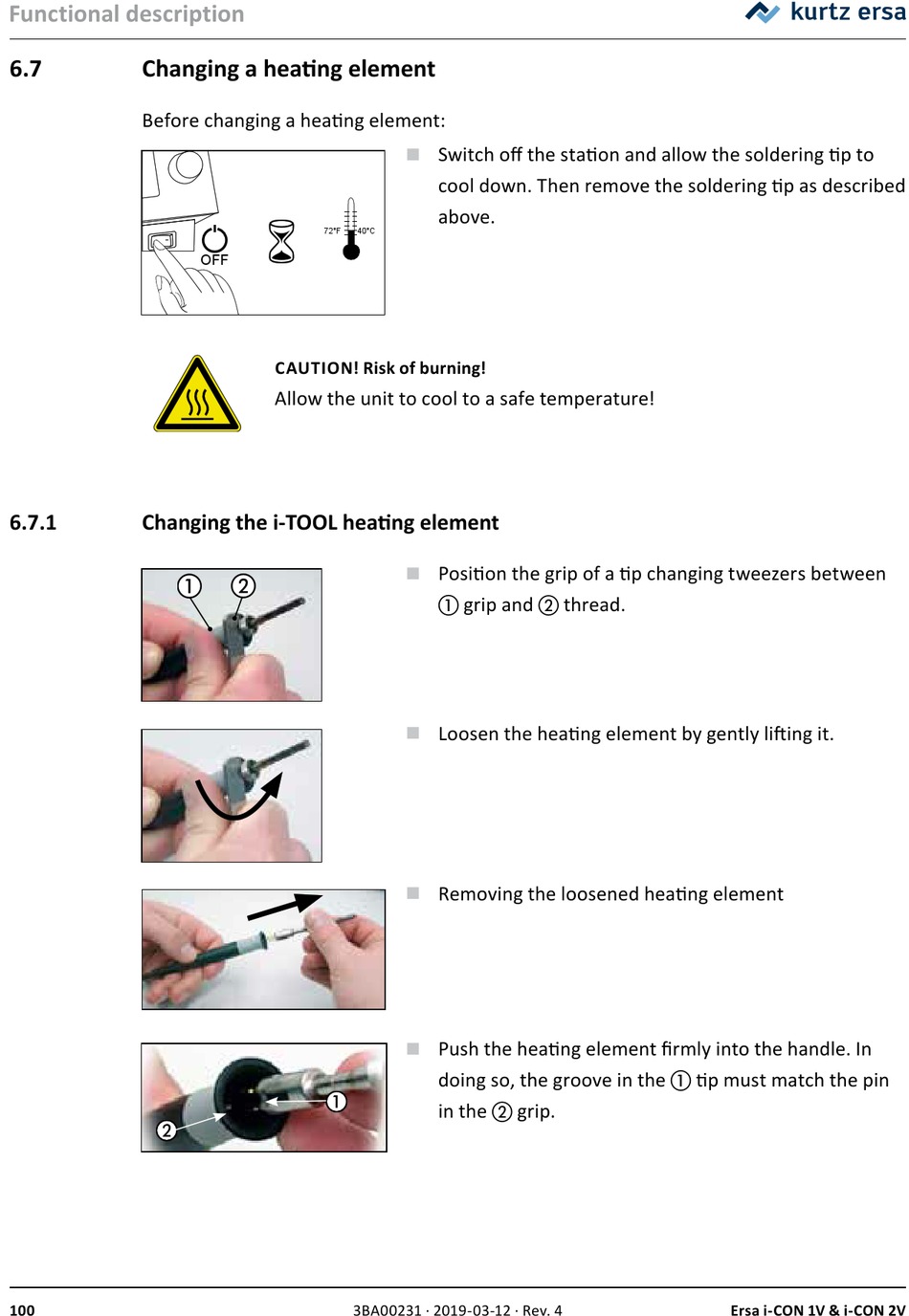

Changing a heating element

Before changing a heating element:
6.7.1

Changing the i-TOOL heating element

100
72°F 40°C
OFF
CAUTION! Risk of burning!
Allow the unit to cool to a safe temperature!
3BA00231 · 2019-03-12 · Rev. 4
■
Switch off the station and allow the soldering tip to
cool down. Then remove the soldering tip as described
above.
■
Position the grip of a tip changing tweezers between
a grip and b thread.
■
Loosen the heating element by gently lifting it.
■
Removing the loosened heating element
■
Push the heating element firmly into the handle. In
doing so, the groove in the a tip must match the pin
in the b grip.
