Functional description
6.6.2

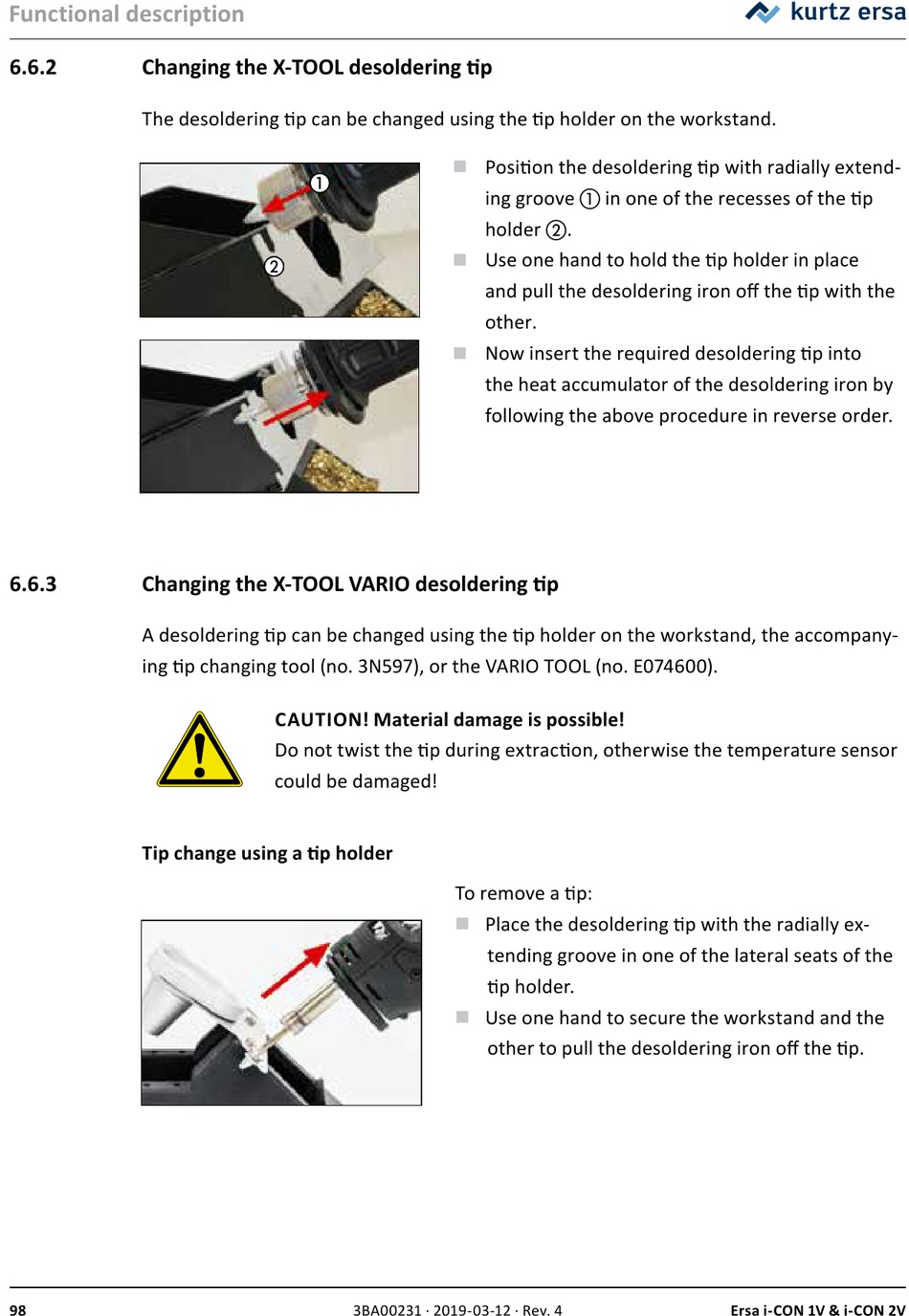

Changing the X-TOOL desoldering tip

The desoldering tip can be changed using the tip holder on the workstand.
6.6.3

Changing the X-TOOL VARIO desoldering tip

A desoldering tip can be changed using the tip holder on the workstand, the accompany-
ing tip changing tool (no. 3N597), or the VARIO TOOL (no. E074600).
Tip change using a tip holder
98
CAUTION! Material damage is possible!
Do not twist the tip during extraction, otherwise the temperature sensor
could be damaged!
3BA00231 · 2019-03-12 · Rev. 4
■
Position the desoldering tip with radially extend-
ing groove a in one of the recesses of the tip
holder b.
■
Use one hand to hold the tip holder in place
and pull the desoldering iron off the tip with the
other.
■
Now insert the required desoldering tip into
the heat accumulator of the desoldering iron by
following the above procedure in reverse order.
To remove a tip:
■
Place the desoldering tip with the radially ex-
tending groove in one of the lateral seats of the
tip holder.
■
Use one hand to secure the workstand and the
other to pull the desoldering iron off the tip.
Ersa i-CON 1V & i-CON 2V
