Functional description
6.3

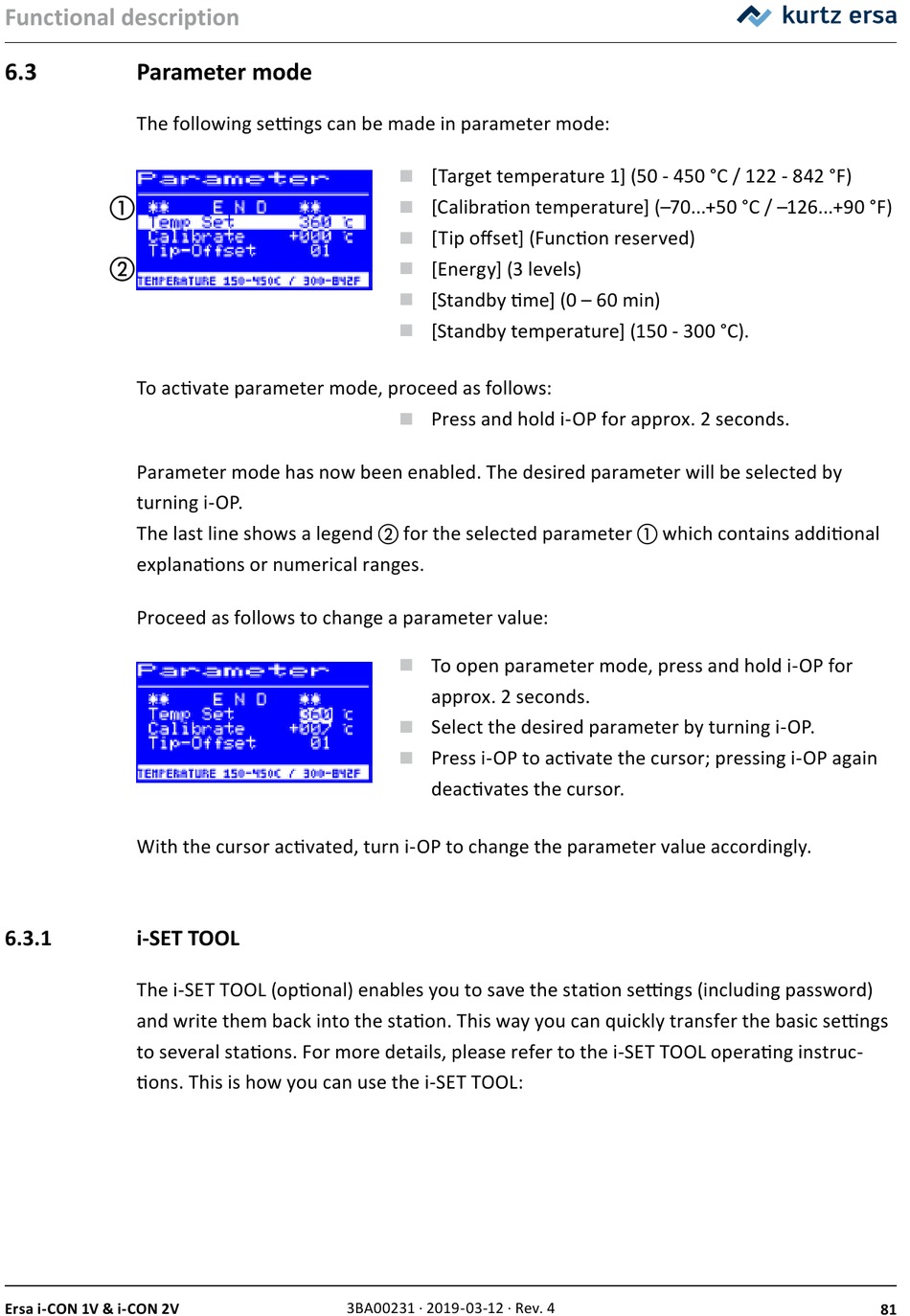

Parameter mode

The following settings can be made in parameter mode:
To activate parameter mode, proceed as follows:
Parameter mode has now been enabled. The desired parameter will be selected by
turning i-OP.
The last line shows a legend b for the selected parameter a which contains additional
explanations or numerical ranges.
Proceed as follows to change a parameter value:
With the cursor activated, turn i-OP to change the parameter value accordingly.
6.3.1

i-SET TOOL

The i-SET TOOL (optional) enables you to save the station settings (including password)
and write them back into the station. This way you can quickly transfer the basic settings
to several stations. For more details, please refer to the i-SET TOOL operating instruc-
tions. This is how you can use the i-SET TOOL:
Ersa i-CON 1V & i-CON 2V
■
[Target temperature 1] (50 - 450 °C / 122 - 842 °F)
■
[Calibration temperature] (–70...+50 °C / –126...+90 °F)
■
[Tip offset] (Function reserved)
■
[Energy] (3 levels)
■
[Standby time] (0 – 60 min)
■
[Standby temperature] (150 - 300 °C).
■
Press and hold i-OP for approx. 2 seconds.
■
To open parameter mode, press and hold i-OP for
approx. 2 seconds.
■
Select the desired parameter by turning i-OP.
■
Press i-OP to activate the cursor; pressing i-OP again
deactivates the cursor.
3BA00231 · 2019-03-12 · Rev. 4
81
