Functional description
6.7.2

Changing the CHIP TOOL heating element

6.7.3

Changing the X-TOOL heating element

6.7.4

Changing the CHIP TOOL VARIO heating element

On the CHIP TOOL VARIO a desoldering tip always consists of a heating element and a sol-
dering tip. A pair of desoldering tips should never be separated during use.
Ersa i-CON 1V & i-CON 2V
■
To change the heating element please proceed as described in the
operating instructions of "Ersa CHIP TOOL" (3BA00128-00).
■
Please return the tool to Ersa Service to have the heating element
replaced.
When aligning the tips with each other, the anti-turn locking device must
be always disengaged.
■
Overtightening the retaining screws may damage the heating element or
the clamping screws.
■
■
■
3BA00231 · 2019-03-12 · Rev. 4

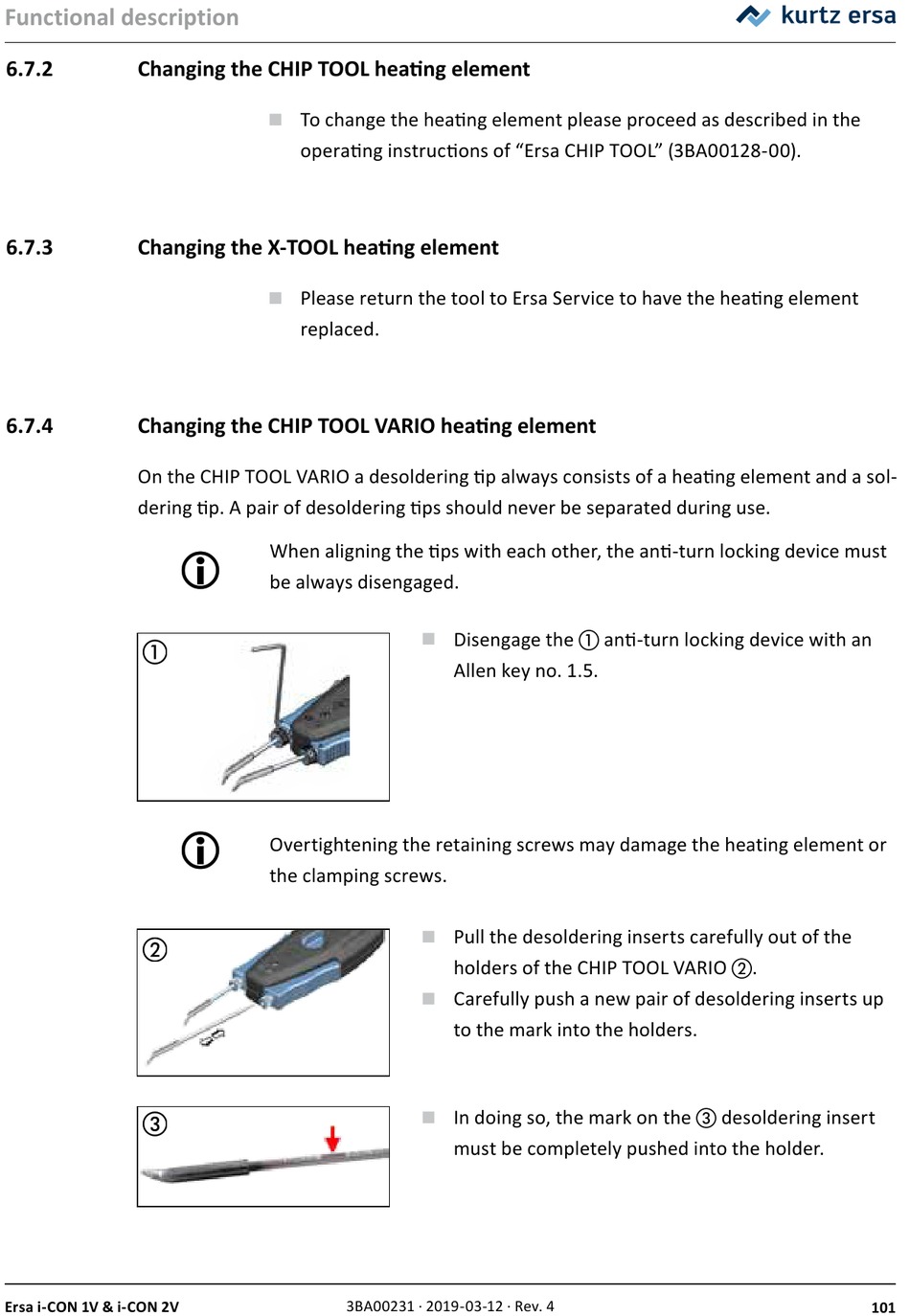

Disengage the a anti-turn locking device with an
Allen key no. 1.5.
Pull the desoldering inserts carefully out of the
holders of the CHIP TOOL VARIO b.
Carefully push a new pair of desoldering inserts up
to the mark into the holders.
In doing so, the mark on the c desoldering insert
must be completely pushed into the holder.
