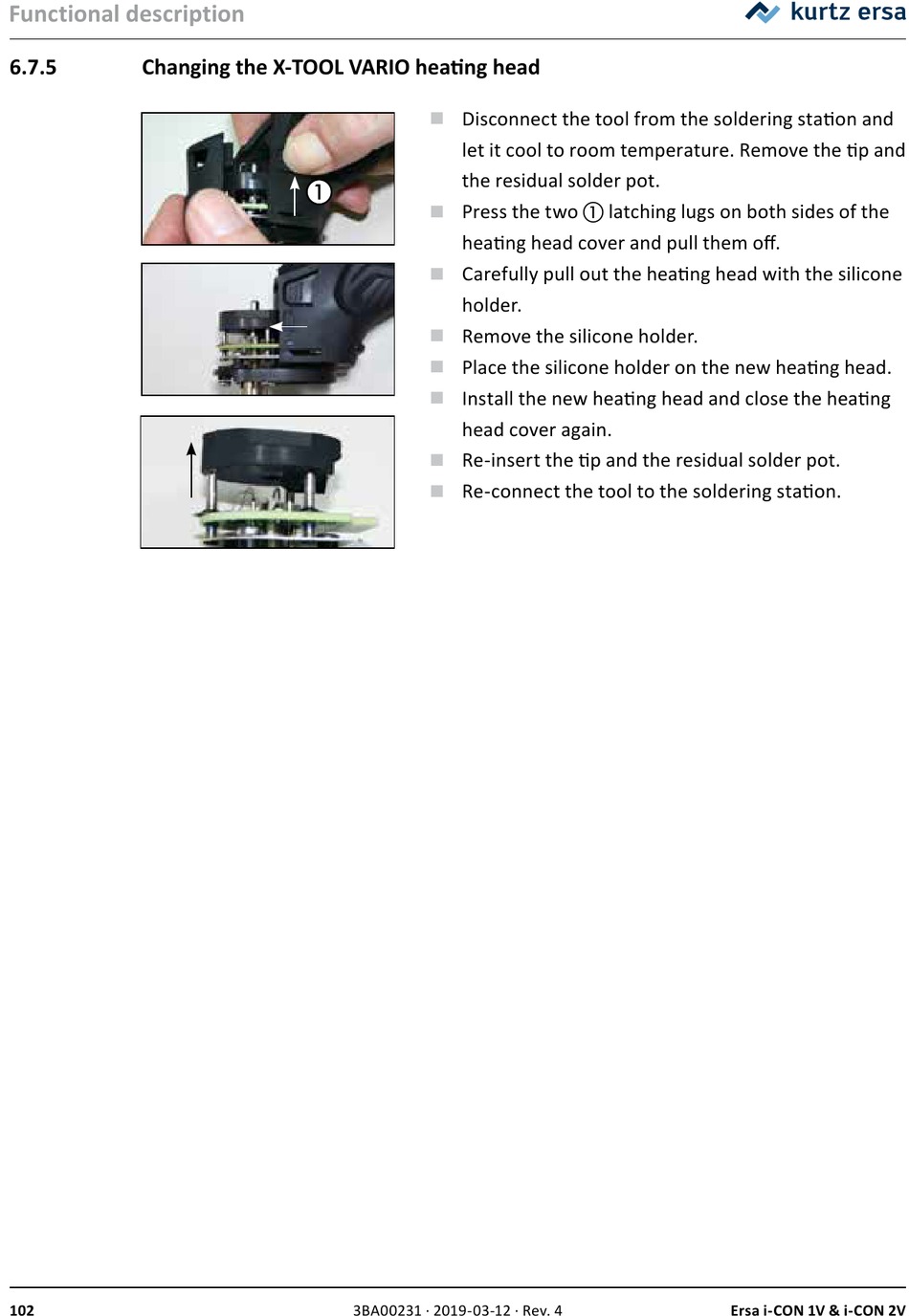

Changing the X-TOOL VARIO heating head

102
■
Disconnect the tool from the soldering station and
let it cool to room temperature. Remove the tip and
the residual solder pot.
■
Press the two a latching lugs on both sides of the
heating head cover and pull them off.
■
Carefully pull out the heating head with the silicone
holder.
■
Remove the silicone holder.
■
Place the silicone holder on the new heating head.
■
Install the new heating head and close the heating
head cover again.
■
Re-insert the tip and the residual solder pot.
■
Re-connect the tool to the soldering station.
