Clocks
Three different clock sources can be used to drive the system clock (SYSCLK):
•
HSI oscillator clock.
•
HSE oscillator clock.
• Main PLL (PLL) clock.
The devices have the two following secondary clock sources:
•
32 kHz low-speed internal RC (LSI RC) which drives the independent watchdog and,
optionally, the RTC used for Auto-wakeup from the Stop/Standby mode.
• 32.768 kHz low-speed external crystal (LSE crystal) which optionally drives the RTC
clock (RTCCLK).
Each clock source can be switched on or off independently when it is not used, to optimize
power consumption.
Refer to the RM0385 reference manual for the description of the clock tree.
3.1

HSE OSC clock

The high speed external clock signal (HSE) can be generated from two possible clock
sources:
•
HSE external user clock (see
• HSE external crystal/ceramic resonator (see
The resonator and the load capacitors have to be placed as close as possible to the
oscillator pins in order to minimize the output distortion and startup stabilization time. The
loading capacitance values must be adjusted according to the selected oscillator.

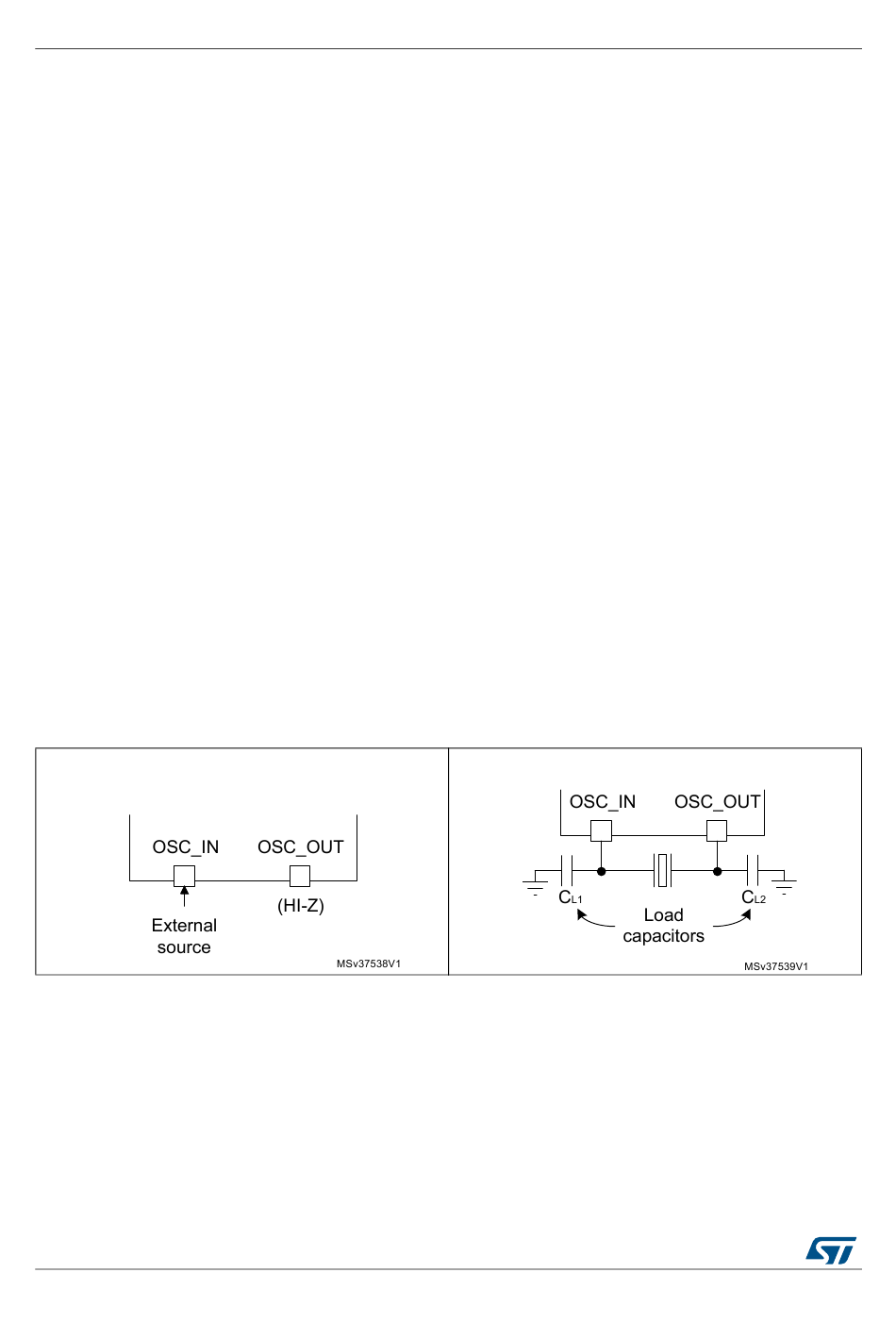

Figure 16. HSE external clock

3.1.1

External user clock (HSE bypass)

In this mode, an external clock source must be provided. The user selects this mode by
setting the HSEBYP and HSEON bits in the RCC clock control register (RCC_CR). The
external clock signal (square, sinus or triangle) with ~50% duty cycle has to drive the
OSC_IN pin while the OSC_OUT pin should be left HI-Z.
