Debug management
5.3.4
SWJ debug port connection with standard JTAG connector
Figure 22
connector.
32/54
shows the connection between the STM32F7 Series and a standard JTAG

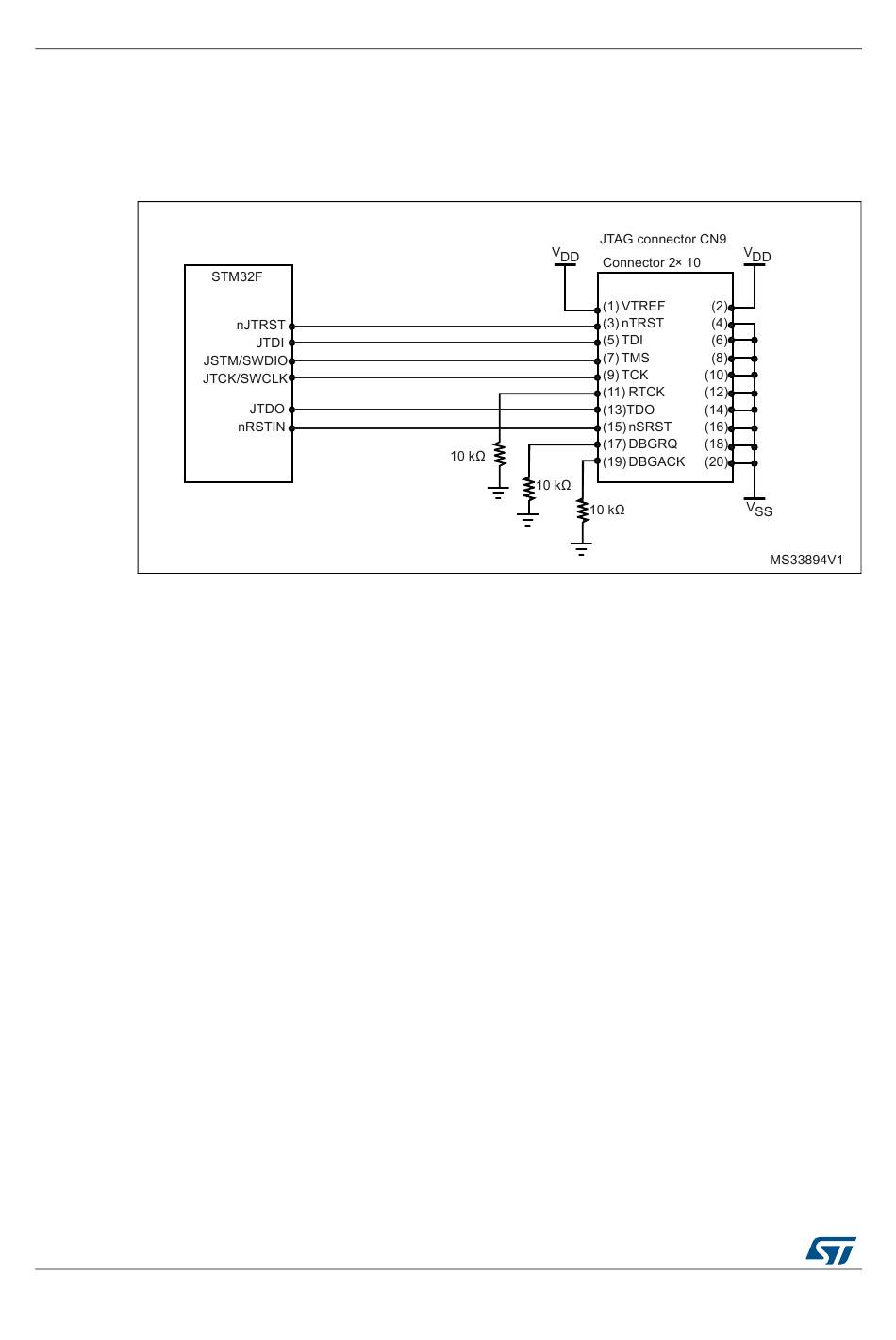

Figure 22. JTAG connector implementation
