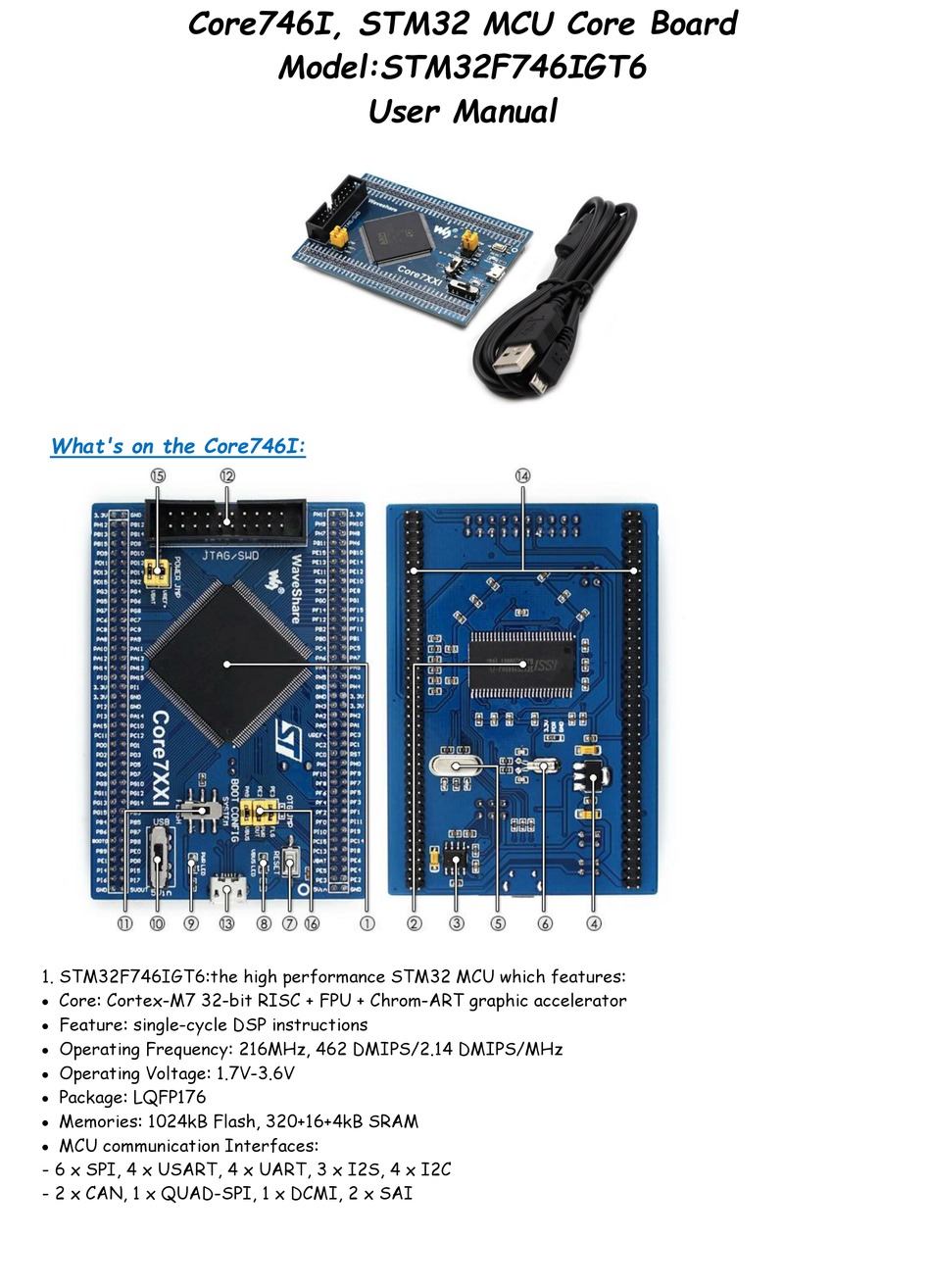

ST STM32F746IGT6 User Manual

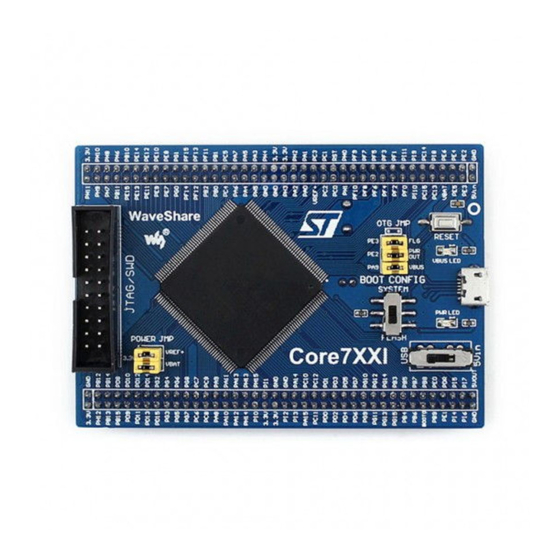

Core746I, STM32 MCU Core Board

What's on the Core746I:

1. STM32F746IGT6:the high performance STM32 MCU which features:
Core: Cortex-M7 32-bit RISC + FPU + Chrom-ART graphic accelerator

Feature: single-cycle DSP instructions

Operating Frequency: 216MHz, 462 DMIPS/2.14 DMIPS/MHz

Operating Voltage: 1.7V-3.6V

Package: LQFP176

Memories: 1024kB Flash, 320+16+4kB SRAM


MCU communication Interfaces:


- 6 x SPI, 4 x USART, 4 x UART, 3 x I2S, 4 x I2C
- 2 x CAN, 1 x QUAD-SPI, 1 x DCMI, 2 x SAI
Model:STM32F746IGT6
User Manual
