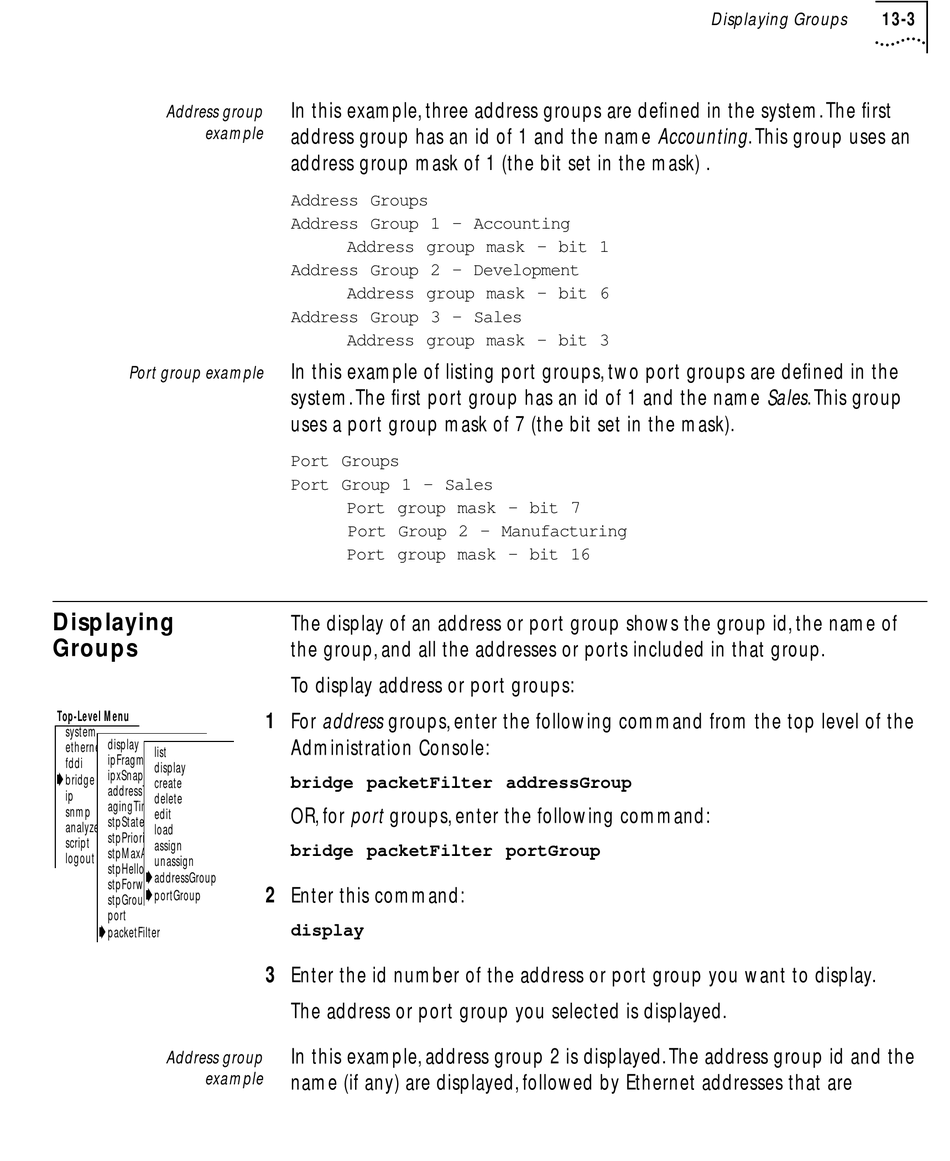

Address group
example
Port group example
Displaying
Groups
Top-Level Menu
system
display
ethernet
list
ipFragmentation
fddi
display
ipxSnapTranslation
bridge
create
addressThreshold
ip
delete
agingTime
snmp
edit
stpState
analyzer
load
stpPriority
script
assign
stpMaxAge
logout
unassign
stpHelloTime
addressGroup
stpForwardDelay
portGroup
stpGroupAddress
port
packetFilter
Address group
example
In this example, three address groups are defined in the system. The first
address group has an id of 1 and the name Accounting. This group uses an
address group mask of 1 (the bit set in the mask) .
Address Groups
Address Group 1 - Accounting
Address group mask - bit 1
Address Group 2 - Development
Address group mask - bit 6
Address Group 3 - Sales
Address group mask - bit 3
In this example of listing port groups, two port groups are defined in the
system. The first port group has an id of 1 and the name Sales. This group
uses a port group mask of 7 (the bit set in the mask).
Port Groups
Port Group 1 - Sales
Port group mask - bit 7
Port Group 2 - Manufacturing
Port group mask - bit 16
The display of an address or port group shows the group id, the name of
the group, and all the addresses or ports included in that group.
To display address or port groups:
1 For address groups, enter the following command from the top level of the
Administration Console:
bridge packetFilter addressGroup
OR, for port groups, enter the following command:
bridge packetFilter portGroup
2 Enter this command:
display
3 Enter the id number of the address or port group you want to display.
The address or port group you selected is displayed.
In this example, address group 2 is displayed. The address group id and the
name (if any) are displayed, followed by Ethernet addresses that are

Displaying Groups

13-3
