Setting the
Multicast Limit
Default value
Top-Level Menu
system
summary
display
ethernet
detail
ipFragmentation
fddi
multicastLimit
ipxSnapTranslation
bridge
stpState
addressThreshold
ip
stpCost
agingTime
snmp
stpState stpPriority
analyzer
address
stpPriority
script
stpMaxAge
logout
stpHelloTime
stpForwardDelay
stpGroupAddress
port
packetFilter

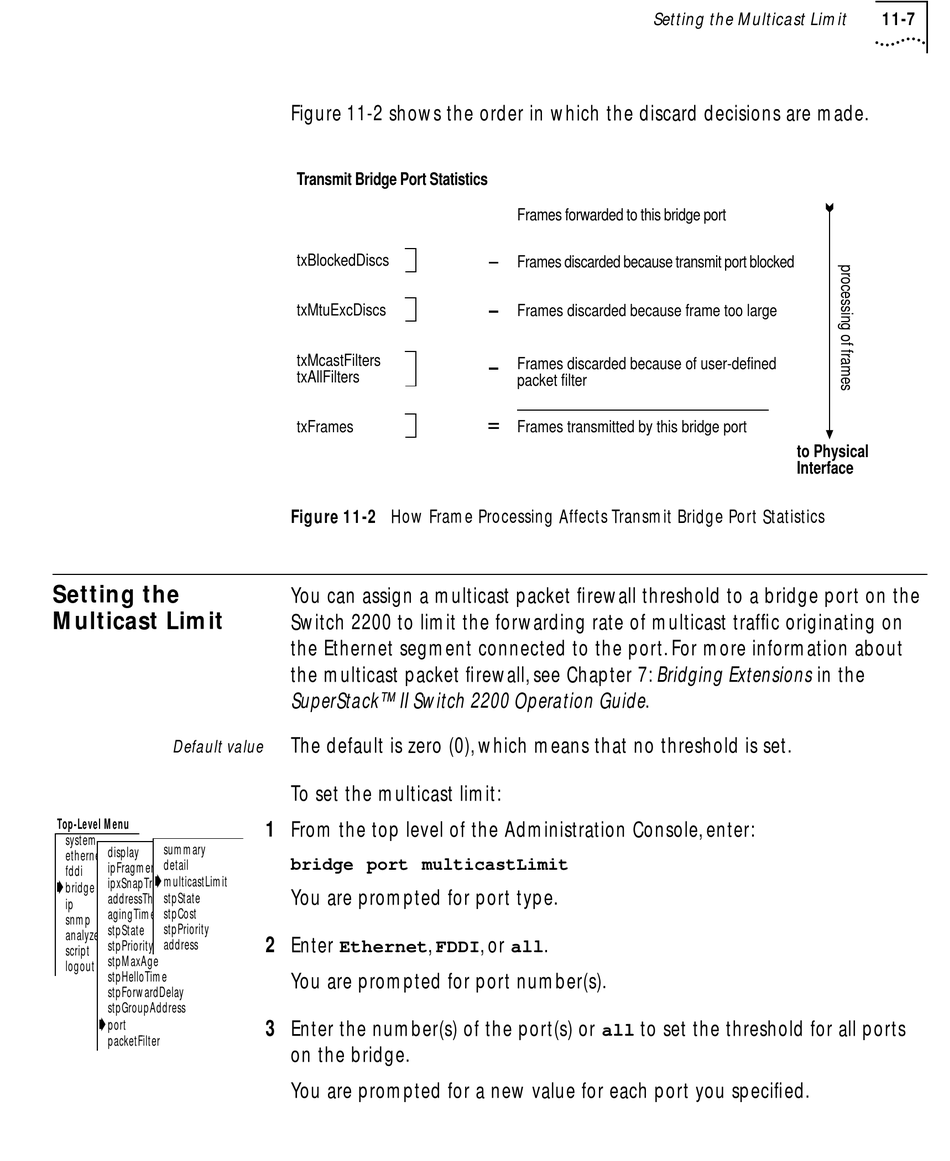

Figure 11-2 shows the order in which the discard decisions are made.
Transmit Bridge Port Statistics
txBlockedDiscs
txMtuExcDiscs
txMcastFilters
txAllFilters
txFrames
Figure 11-2 How Frame Processing Affects Transmit Bridge Port Statistics
You can assign a multicast packet firewall threshold to a bridge port on the
Switch 2200 to limit the forwarding rate of multicast traffic originating on
the Ethernet segment connected to the port. For more information about
the multicast packet firewall, see Chapter 7: Bridging Extensions in the
SuperStack™ II Switch 2200 Operation Guide.
The default is zero (0), which means that no threshold is set.
To set the multicast limit:
1 From the top level of the Administration Console, enter:
bridge port multicastLimit
You are prompted for port type.
2 Enter ,
Ethernet FDDI
You are prompted for port number(s).
3 Enter the number(s) of the port(s) or
on the bridge.
You are prompted for a new value for each port you specified.

Setting the Multicast Limit

Frames forwarded to this bridge port
Frames discarded because transmit port blocked
Frames discarded because frame too large
Frames discarded because of user-defined
packet filter
=
Frames transmitted by this bridge port
, or .
all
to set the threshold for all ports
all
11-7
to Physical
Interface
