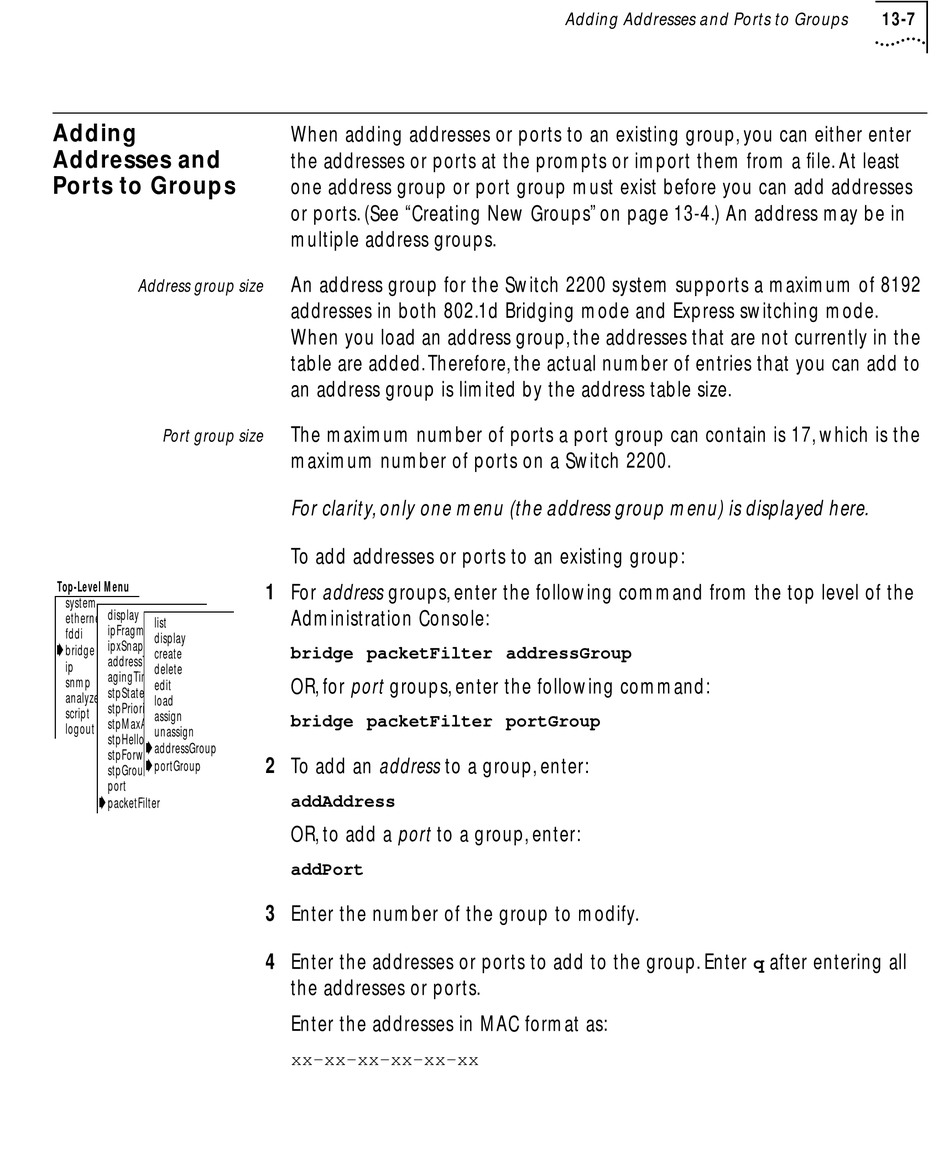

Adding
Addresses and
Ports to Groups
Address group size
Port group size
Top-Level Menu
system
display
ethernet
list
ipFragmentation
fddi
display
ipxSnapTranslation
bridge
create
addressThreshold
ip
delete
agingTime
snmp
edit
stpState
analyzer
load
stpPriority
script
assign
stpMaxAge
logout
unassign
stpHelloTime
addressGroup
stpForwardDelay
portGroup
stpGroupAddress
port
packetFilter
When adding addresses or ports to an existing group, you can either enter
the addresses or ports at the prompts or import them from a file. At least
one address group or port group must exist before you can add addresses
or ports. (See "Creating New Groups" on page 13-4.) An address may be in
multiple address groups.
An address group for the Switch 2200 system supports a maximum of 8192
addresses in both 802.1d Bridging mode and Express switching mode.
When you load an address group, the addresses that are not currently in the
table are added. Therefore, the actual number of entries that you can add to
an address group is limited by the address table size.
The maximum number of ports a port group can contain is 17, which is the
maximum number of ports on a Switch 2200.
For clarity, only one menu (the address group menu) is displayed here.
To add addresses or ports to an existing group:
1 For address groups, enter the following command from the top level of the
Administration Console:
bridge packetFilter addressGroup
OR, for port groups, enter the following command:
bridge packetFilter portGroup
2 To add an address to a group, enter:
addAddress
OR, to add a port to a group, enter:
addPort
3 Enter the number of the group to modify.
4 Enter the addresses or ports to add to the group. Enter
the addresses or ports.
Enter the addresses in MAC format as:
xx-xx-xx-xx-xx-xx

Adding Addresses and Ports to Groups

13-7
after entering all
q
