MCCT thermal power plant controller settings:
Below find the settings to make on the MCCT regulator to make Vgraph a private module:
From the Installer
Enab. V-GRAPH.
MCZN zone controllers settings:
Below find the settings to make on the MCZN regulators to make Vgraph a private module:
From the Installer
by setting the V-GRAPH mode parameter in AB.

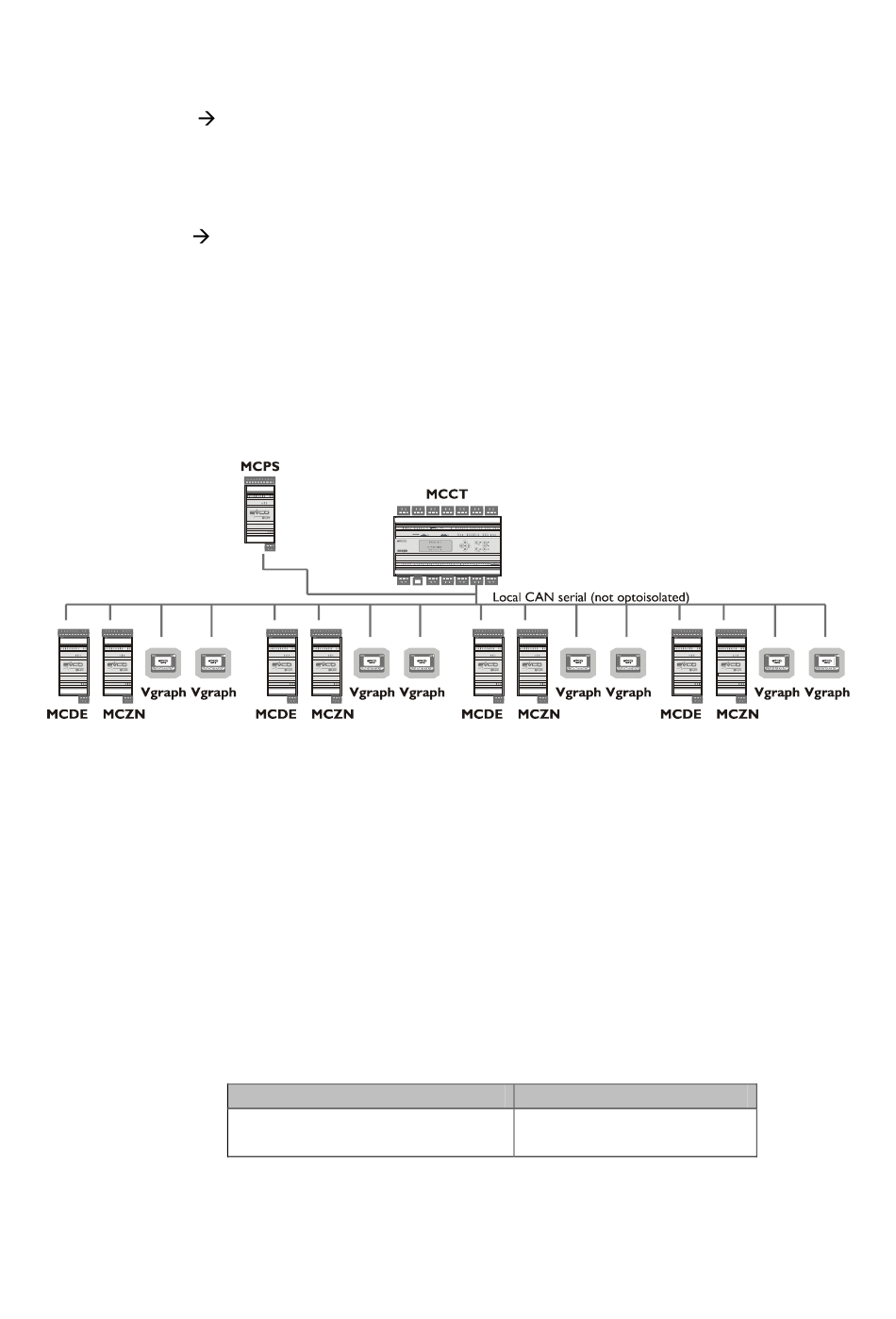

3.5.3 Zone private terminal
If the Vgraph display is configured as a private zone terminal (A+B), every Vgraph display will be
able to only show the preselected MCZN zone regulator, and only the zone selected (Zone A or
Zone B) managed by the MCZN controller.
As an example, an individually owned villa on two floors.
A Vgraph display will be installed for each zone controlled (living room, bedroom, bathroom),
which will establish temperatures and time bands for the Zone where the display is installed,
without possibility of displaying or modifying the settings of the other zones present.
Vgraph settings:
Below find the network settings to be made on Vgraph to make it a private zone terminal (for the
setting procedures, consult the Vgraph hardware manual):
CANbus address:
For connection to ZONE A:
For connection to ZONE B:
CANbus map:
C-PRO CLIMA SISTEMA INSTALLER MANUAL
General parameters disable the presence of the public V-graph display via
General parameters menu, enable the presence of the private V-graph display
100 + address of the MCZN zone regulator to which the
connection is to be made
110 + address of the MCZN zone regulator to which the
connection is to be made
Network node
1
MCZN associated
controller address
Page 23
