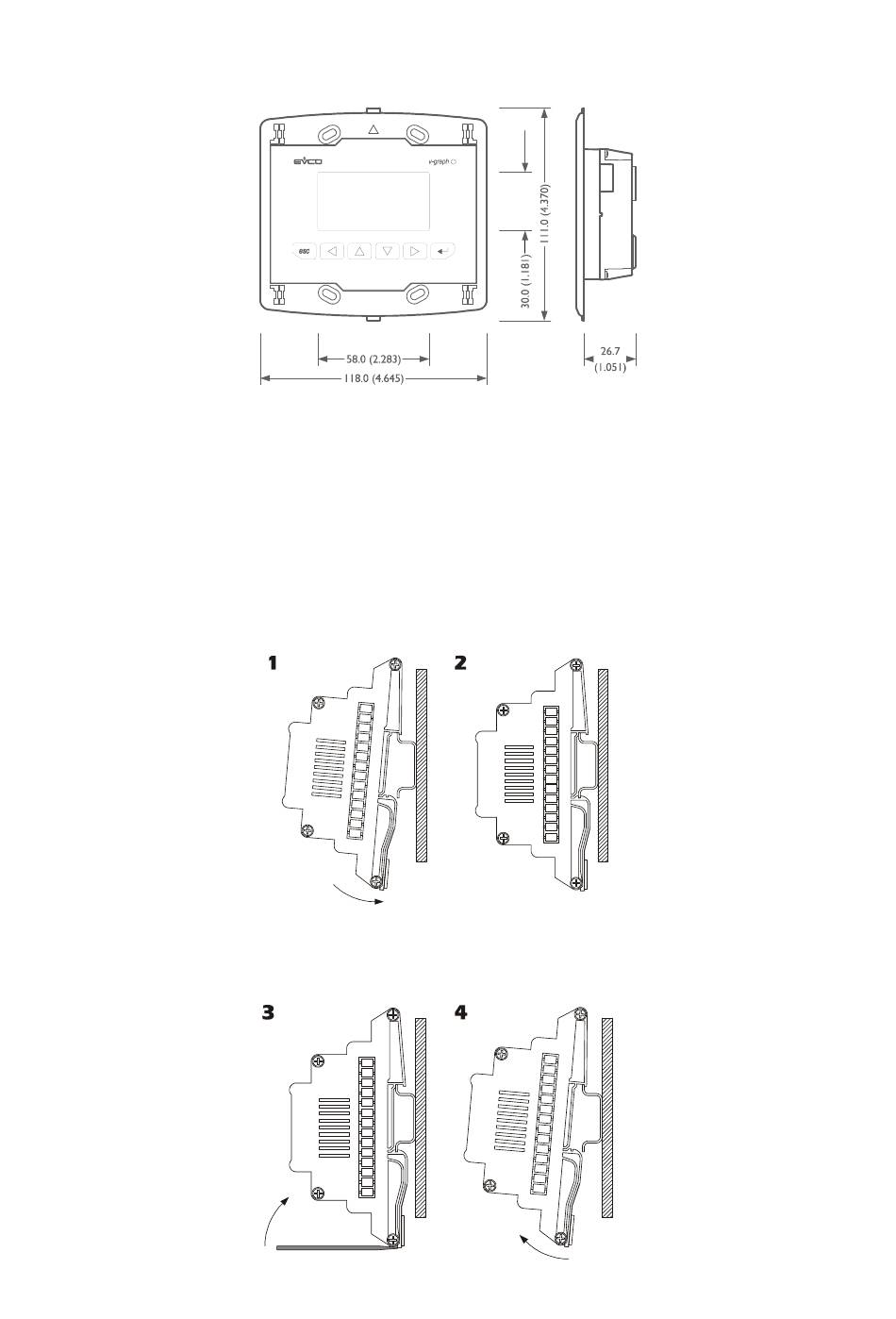

3.1.3 Graphical display dimensional drawing (Vgraph).

3.2 Assembly

3.2.1 Assembly of thermal power plant modules (MCCT), Zone (MCZN),
To install the thermal power plant, zone, Dehumidifier and solar panels module,
operate as indicated in the diagrams (points 1 and 2).
To remove thermal power plant, zone, dehumidifier and solar panels module, use a screwdriver and
operate as indicated in the diagrams (points 3 and 4).
C-PRO CLIMA SISTEMA INSTALLER MANUAL
Dehumidifier (MCDE) and solar panels (MCPS)
