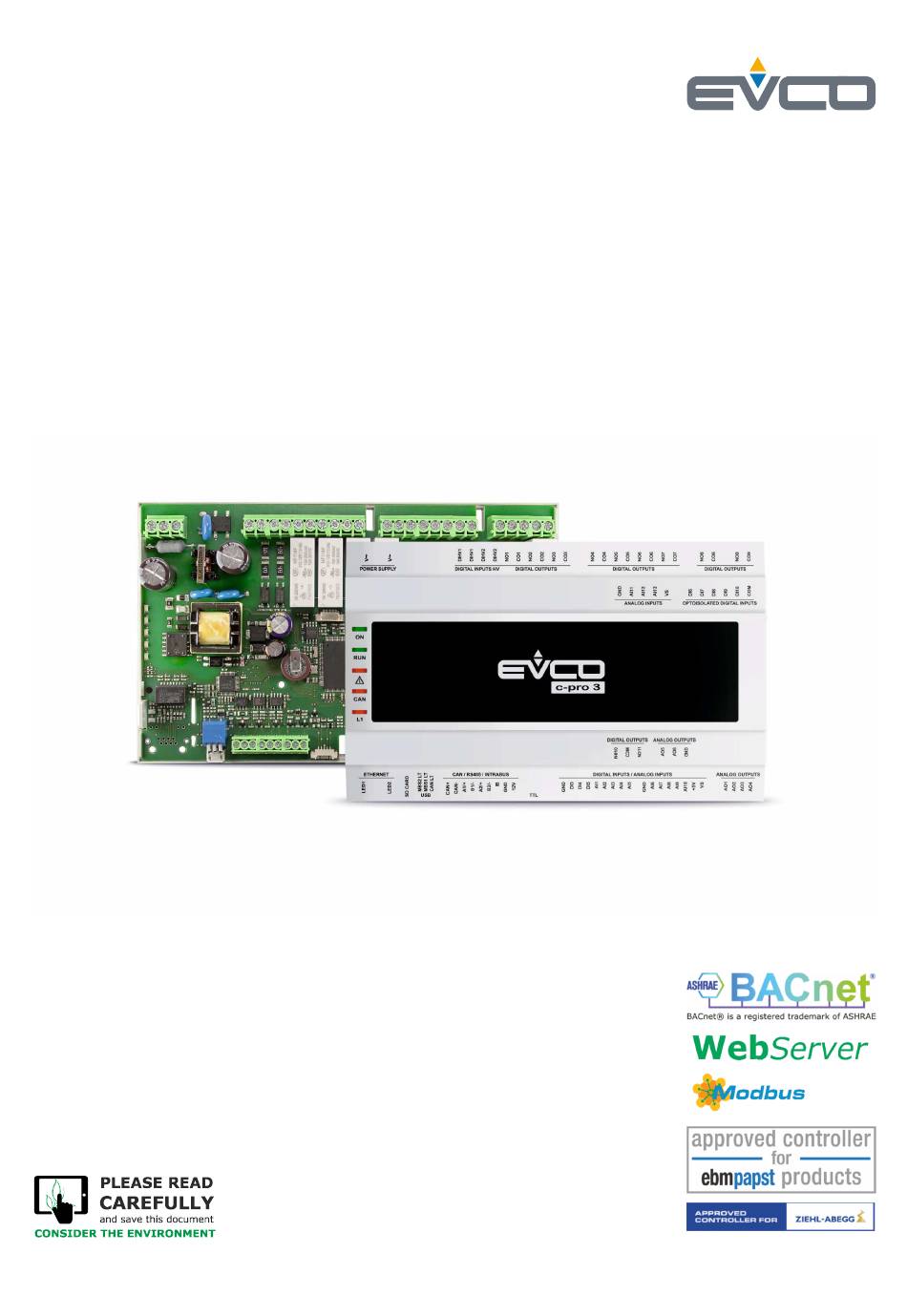

- Page 1 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 c-pro 3 giga Programmable controllers (up to 28 I/O) Hardware Manual | ENGLISH Code 144CP3GE104 page 1 of 32...
- Page 2 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 Read this document carefully before installation and before using the device and take all the prescribed precautions. Keep this document with the device for future reference. Only use the device in the ways described in this document.
- Page 3 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 Index INTRODUCTION ........................................4 MAIN FEATURES OF THE MODELS AVAILABLE AND PURCHASING CODES ......................... 5 MEASUREMENTS AND INSTALLATION ..................................7 Measurements of open frame models ................................7 Measurements of models with housing ................................
- Page 4 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 INTRODUCTION The range of c-pro 3-giga programmable controllers has up to 28 I/O, as well as a wide range of communications ports and protocols, making possible ad- vanced management of HVAC/R applications, also according to their use in local or remote control systems.
- Page 5 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 MAIN FEATURES OF THE MODELS AVAILABLE AND PURCHASING CODES FORMAT 10 DIN modules, open frame • • 10 DIN modules with housing • • USER INTERFACE Blind version •...
- Page 6 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 PURCHASING CODES EPG9O EPG9B EPG9OHX EPG9BHX Version BASIC BASIC NODE NODE NOTES the BACnet communication protocol is an alternative to the Web Server function. page 6 of 32...
-
Page 7: Measurements And Installation
EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 MEASUREMENTS AND INSTALLATION Measurements of open frame models Measurements are expressed in mm (inches). Measurements of models with housing Measurements are expressed in mm (inches). page 7 of 32... - Page 8 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 Installation On a DIN rail in a control panel. To install the device, proceed as shown in figures 1 and 2. To uninstall the device, first remove any plug-in screw terminal blocks at the bottom then proceed as shown in figures 3 and 4.

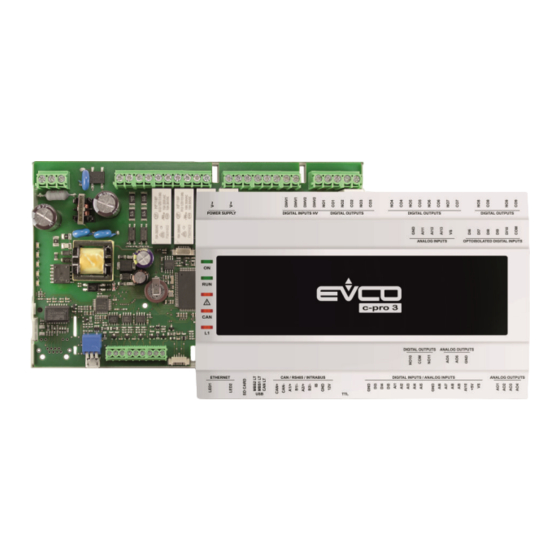

- Page 9 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 DESCRIPTION OPEN FRAME MODELS MODELS WITH HOUSING PART DESCRIPTION Power supply High voltage digital inputs Digital outputs (electro-mechanical relays) 1... 3 Digital outputs (electro-mechanical relays) 4... 7 Digital outputs (electro-mechanical relays) 8...
-
Page 10: Electrical Connection
EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 ELECTRICAL CONNECTION N.B. - use cables of an adequate section for the current running through them - to reduce any electromagnetic interference, connect the power cables as far away as possible from the signal cables and, if necessary, connect to a RS-... - Page 11 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 CONN. DESCRIPTION K8 digital output normally open contact (2 A res. @ 250 VAC) K8 digital output common contact K9 digital output normally closed contact K9 digital output normally open contact (3 A res. @ 250 VAC) K9 digital output common contact CONN.
- Page 12 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 CONN. DESCRIPTION reference (GND) analogue input 6 (for PTC, NTC or Pt 1000 probes, 0-5 V, 0-10 V, 0-20 mA or 4-20 mA transducers); AI6 can also be configured for dry contact digital input analogue input 7 (for PTC, NTC or Pt 1000 probes, 0-5 V, 0-10 V, 0-20 mA or 4-20 mA transducers);...
- Page 13 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 Example of electrical connection PRECAUTIONS FOR ELECTRICAL CONNECTION - if using an electrical or pneumatic screwdriver, adjust the tightening torque - if the device is moved from a cold to a warm place, humidity may cause condensation to form inside. Wait for about an hour before switching on the power - make sure that the supply voltage, electrical frequency and power are within the set limits.
- Page 14 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 CONFIGURATION Initial information To configure the device, users will need a programmable controller with a built-in or remote user interface. Example of configuration using the remote EPJgraph user interface Make sure neither the device nor the remote user interface is powered up.
- Page 15 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 Touch the LEFT and ENTER keys for 2 s: the dis- From point 26, touch the UP or DOWN key to play will show the “Network Status (CAN)”...
- Page 16 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 To copy the device configuration from a USB flash drive: From point 26, connect the USB flash drive to the USB port of the device (using the connecting cable 0810500025: see the section ACCESSORIES).
-
Page 17: Signalling Leds
EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 SIGNALLING LEDS SLOW FLASH NORMAL FLASH RAPID FLASH device powered device not powered application software compiled application software compiled application software running application software com- - device not compatible with... -
Page 18: Configuration Parameters
EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 CONFIGURATION PARAMETERS Configuration parameters of the “Info” menu PARAMETER MIN. MAX. U.M. DEF. DESCRIPTION PROJ read-only parameter information concerning the application project (project, version and re- vision) - Page 19 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 NTC probe 0-20mA 0-20 mA transducer 4-20mA 4-20 mA transducer 0-5V 0-5 V ratiometric transducer 0-10V 0-10 V transducer PT1000 Pt 1000 probe NTCK2 type 2 NTC probe...
- Page 20 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 freq 2000 1000 frequency of PWM signal of analogue output 1 delay ph. ms/10 shift of phase cutting impulse of analogue output 1 - - - - - -...
- Page 21 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 it is necessary to set a password to access each level Ena BkMem RTC - - - - - - - - - enable the clock and backup memory functions...
- Page 22 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 Configuration parameters of the “UART1” sub-menu of the “Networks” menu The parameters are only visible if the application software is set up for the RS-485 (MODBUS MASTER/SLAVE, BACnet MS/TP) port to be configured to support the MODBUS communication protocol.
- Page 23 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 Configuration parameters of the “UART2” sub-menu of the “Networks” menu The parameters are only visible if the application software is set up for the RS-485 MODBUS slave port to be configured to support the MODBUS communication proto- col.
- Page 24 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 Configuration parameters of the “Password” menu PARAM. MIN. MAX. U.M. DEF. DESCRIPTION Level 1: -32768 32768 - - - value of password to access level 1 - - -...
- Page 25 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 Configuration parameters of the “Diagnostics” menu PARAM. MIN. MAX. U.M. DEF. DESCRIPTION Memory read-only parameter status of non-volatile memory no error error read-only parameter clock status no error...
- Page 26 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 ACCESSORIES Connecting cable for Personal Computer INTRABUS/RS-485 serial interface 0810500023 EVIF22ISX Makes it possible to connect to a personal computer using a USB. Makes it possible to convert the INTRABUS signal into an RS-485 MODBUS Length: 1 m (3.28 ft).
- Page 27 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 USB flash drive EVUSB4096M For uploading and downloading data. 4 GB of memory. Connection kit CJAV47 Allows cabling in models with housing. page 27 of 32...
-
Page 28: Technical Specifications
EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 TECHNICAL SPECIFICATIONS Purpose of the control device Function controller Construction of the control device Built-in electronic device Housing Grey, self-extinguishing Category of heat and fire resistance Measurements 10 DIN modules: 179.0 x 110.0 x 26.0 mm (7 1/16 x 1 5/16 x 1 in) for open... - Page 29 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 5 for PTC, NTC or Pt 1000 probes (can be configured also for dry contact digital 5 for PTC, NTC or Pt 1000 probes, 0-5 V, 0-10 V, 0-20 mA or 4-20 mA transduc-...
- Page 30 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 The device guarantees: - reinforced insulation between the SELV circuits and relay outputs - reinforced insulation between the “groups” of relay outputs - main insulation between relay outputs of the same group - reinforced insulation between the powered parts and the SELV circuits - reinforced insulation between “group 1”...
- Page 31 EVCO. The customer (manufacturer, installer or end user) assumes all responsibility for the configuration of the device. EVCO accepts no liability for any possible errors in this document and reserves the right to make any changes at any time without prejudice to the essential functional and safety features of the equipment.
- Page 32 EVCO S.p.A. c-pro 3 giga | Hardware Manual ver. 1.0 | Code 144CP3GE104 EVCO S.p.A. Via Feltre 81, 32036 Sedico (BL) ITALY phone +39 0437 8422 fax +39 0437 83648 email info@evco.it web www.evco.it page 32 of 32...
