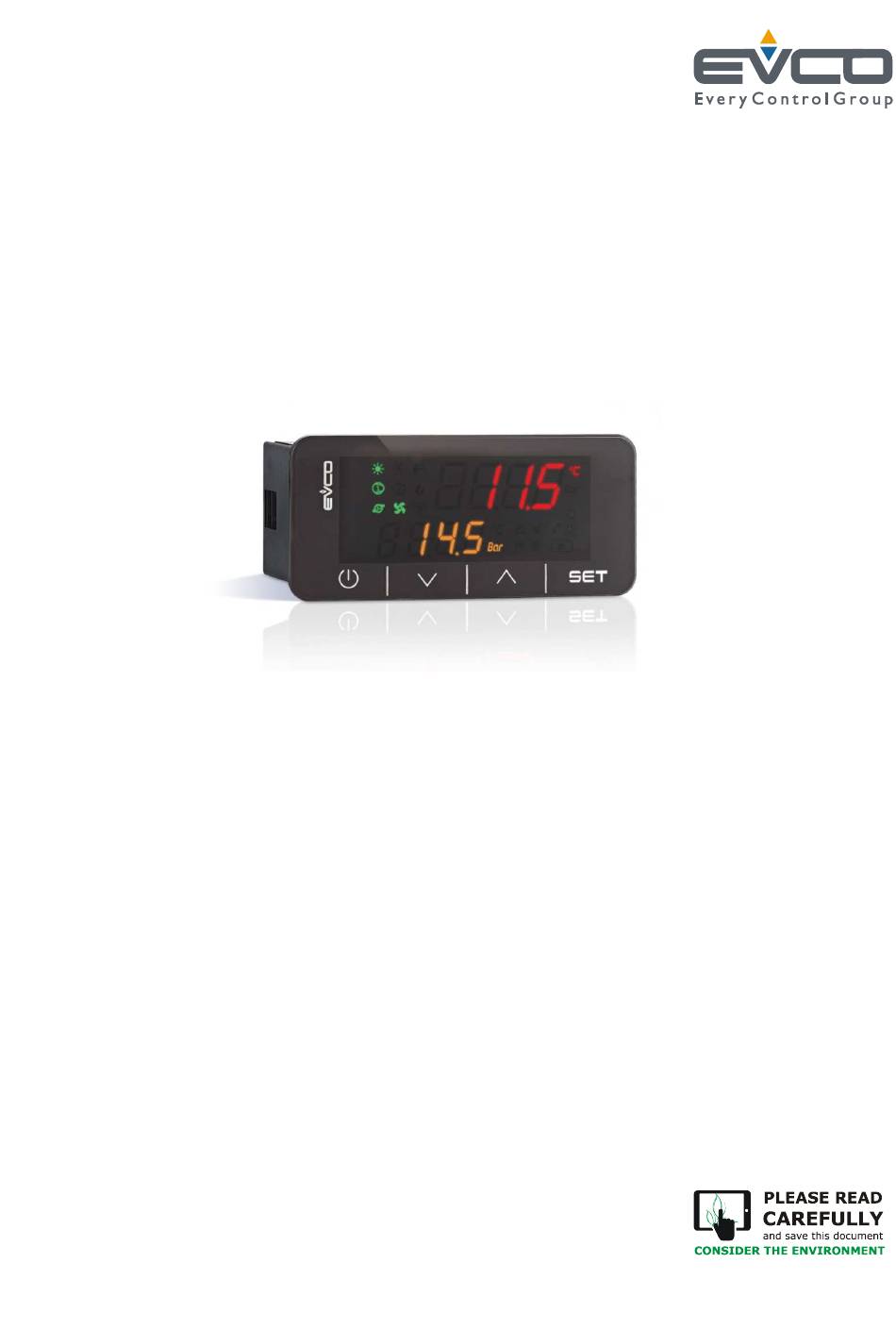

- Page 1 c-pro 3 nano Programmable controllers (up to 25 I/O) Hardware Manual | ENGLISH Code 114CP3NE104 TheInnovationEvolution...
- Page 2 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 IMPORTANT Read this document carefully before installation and before using the device and take all the prescribed precautions. Keep this document with the device for future consultation.
- Page 3 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 Index INTRODUCTION ................5 Initial information..............5 Main features of the models available and purchasing codes ..6 DESCRIPTION ................7 MEASUREMENTS AND INSTALLATION ..........7 Measurements ................. 7 Installation ................
- Page 4 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 page 4 of 26...
-
Page 5: Initial Information
EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 INTRODUCTION Initial information c-pro 3 nano is a range of extremely compact programmable controllers with numerous inputs and outputs (up to 25) and with an enhanced memory capacity to meet the management needs of the HVAC/R sector and OEM companies in particular. - Page 6 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 Main features of the models available and purchasing codes The table below shows the main features of the models available and the purchasing codes. MAIN FEATURES MODELS AVAILABLE AND PURCHASING CODES...
-
Page 7: Measurements And Installation
EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 DESCRIPTION MEASUREMENTS AND INSTALLATION The picture below shows the appearance of the devices. Measurements The picture below shows the measurements of the devices. Measurements are expressed in mm (inches). -
Page 8: Electrical Connection
EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 The tables below describe the connectors. ELECTRICAL CONNECTION N.B. Connector 1 - Do not supply further devices with the same transformer. DESCRIPTION - Use cables of an adequate section for the current running analogue input 6 (for PTC, NTC or Pt 1000 probes;... -
Page 9: Connection To The Power Supply
EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 Connection to the power supply dry contact digital input) The picture below shows the c-pro 3 nano plus connection to the power supply. digital input 5 (dry contact) analogue input 9 (for NTC probes, 0-5 V ratiometric transducers, 0- 10 V, 0-20 mA or 4-20 mA transducers;... - Page 10 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 Analogue output wiring diagram RS-485 MODBUS port wiring diagram The picture below shows the c-pro 3 nano plus analogue output connection. The picture below shows an example of c-pro 3 nano plus RS-485 MODBUS port connection.
- Page 11 - Disconnect the power supply before doing any type of maintenance. - Do not use the device as safety device. - For repairs and for further information, contact the EVCO sales network. 4.11 USB flash drive connection The picture below shows a USB flash drive connection to the c-pro 3 nano plus.
-
Page 12: First Time Use
EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 FIRST-TIME USE DEVICE CONFIGURATION Proceed as follows. N.B. Install following the instructions given in the section MEASUREMENTS - The use of the DOWN key as an entity in the application software AND INSTALLATION. - Page 13 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 If option available, to set the language for viewing the application software Lower line Hour (00… 23) proceed as follows. Touch the SET key. Touch the UP or DOWN key to select the current viewing label, for example the label “EnG”...
- Page 14 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 To download the device configuration using a USB flash drive proceed as To upload the device configuration using a USB flash drive proceed as follows. follows. Connect a USB flash drive to the device as shown in the section Connect a USB flash drive to the device as shown in the section USB flash drive connection.
- Page 15 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 List of hardware parameters The table below shows the hardware parameters of the device. The hardware parameter values are overwritten by the parameter values of the application software.
- Page 16 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 0-20 0-20 mA 0-20mA 4-20 4-20 mA 4-20mA AI 2 0-5 V ratiometric type of probe analogue input 2 Parameters AI 2 0-5V 0-10 0-10 V 0-10V...
- Page 17 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 AI 7 Pt10 Pt 1000 type of probe analogue input 7 Parameters AI 7 PT1000 electric heater reading RESIST not available Parameters AI 8 Pt10 Pt 1000...
- Page 18 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 0-20 0-20 mA Parameters 0-20mA AO 3 010V 4-20 4-20 mA type of signal analogue output 3 only available AO 3 0-10V 4-20mA for c-pro 3 nano...
- Page 19 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 nEt > CAn Networks > CAN nLoG NetworkNode CAN network device node [1]... [32] not available for Logic c-pro 3 nano basic nEt > CAn Networks > CAN...
- Page 20 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 read-only parameter nEt > CAn > CAn dbg Networks > CAN UArn warning Bus > Debug - - - - CAN communication BUS status WARNING Bus Status...
- Page 21 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 nEt > CAn > CAn dbg Networks > CAN Bus > Debug tHEr - - - - number of transmission errors read-only parameter Cnt Tx Err not available for...
- Page 22 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 ACCESSORIES EVDFAN1 Phase cutting speed regulator for single-phase fans 0810500023 Makes it possible to regulate a single-phase fan speed with a PWM command USB extension cable signal.
-
Page 23: Technical Specifications
EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 TECHNICAL SPECIFICATIONS insulated Protect the power supply with a 2 A-T 250 VAC fuse. Purpose of the control device Function controller Earthing methods for the control Construction of the control device... - Page 24 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 Auxiliary power supply: If the device has a power supply of If the device has a power supply of 12 VAC, 12 VDC +10% -15%, 120 24 VAC/DC, 12 VDC, 120 mA max.
- Page 25 This document and the solutions contained therein are the intellectual property of EVCO and thus protected by the Italian Intellectual Property Rights Code (CPI). EVCO imposes an absolute ban on the full or partial reproduction and disclosure of the content other than with the express approval of EVCO. The customer (manufacturer, installer or end-user) assumes all responsibility for the configuration of the device.
- Page 26 EVCO S.p.A. c-pro 3 nano | Hardware Manual ver. 1.0 | Code 114CP3NE104 EVCO S.p.A. Via Feltre 81, 32036 Sedico Belluno ITALY Tel. 0437/8422 | Fax 0437/83648 info@evco.it | www.evco.it page 26 of 26...
