3.5 Displays network configuration

For the final user, the c-pro CLIMA system envisions the use of a series of user terminals installed
in zone, from which it is possible to display temperature, humidity, state of the zone and set the
work set-points, time bands, etc.
The maximum number of user terminals that can be set in the system depends mainly on the
configuration of the terminal selected by the installer, from the following possibilities:
• Public terminal
• Module private terminal
• Zone private terminal
Depending on the type of terminal desired, settings must be made in the MCZN zone controller and
in the Vgraph user terminal, illustrated in the following paragraphs.
3.5.1 Public terminal

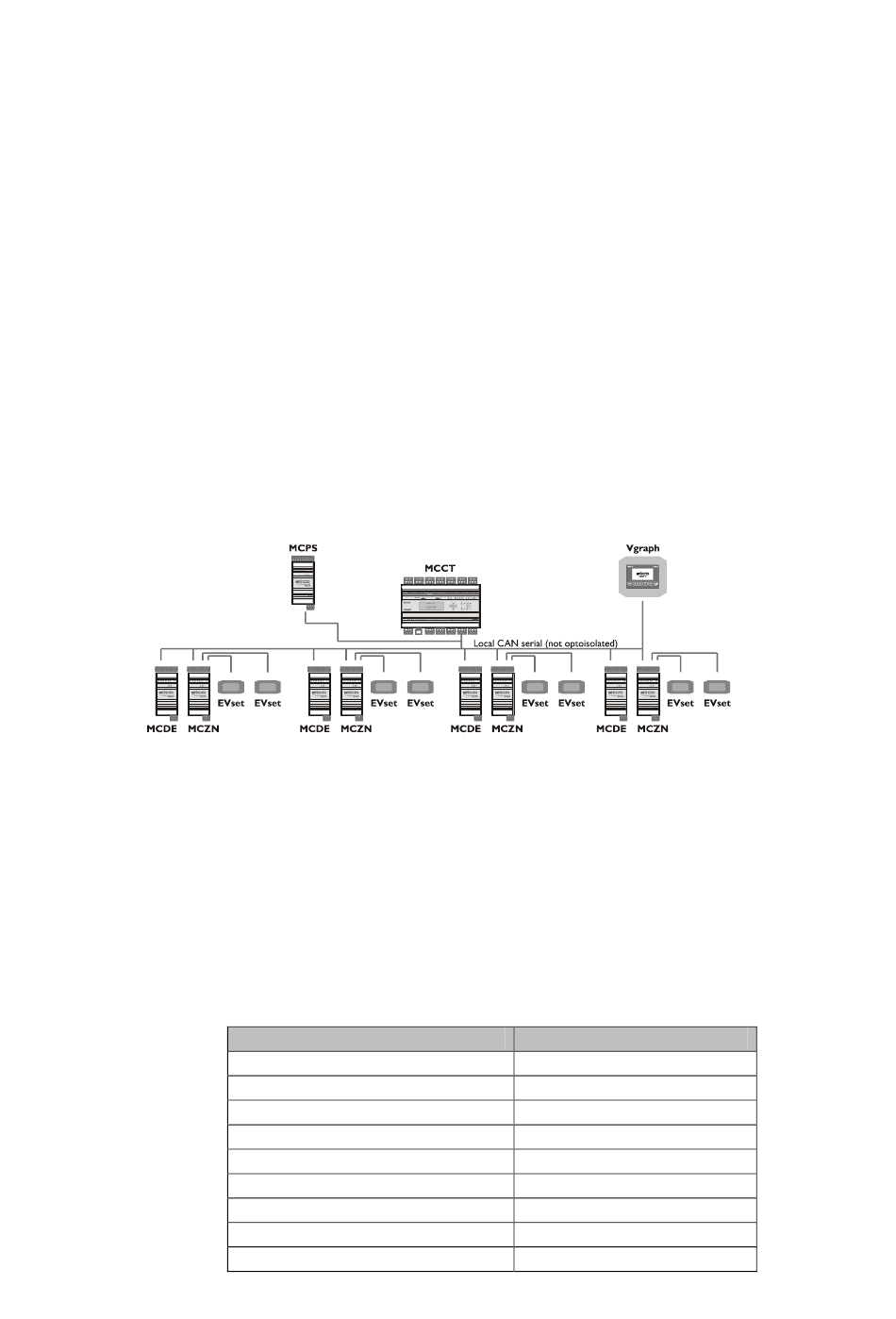

If the Vgraph display is configured as a public terminal (universal), a unique Vgraph display can
show all MCZN zone controllers present in the system and all zones managed by the MCZN
controllers (called Zone A, Zone B).
A hotel is given as an example.
The unique Vgraph display will be installed in an area with access to authorised staff only, which
will establish the temperatures and time bands predefined for every Zone (hotel room) managed.
The hotel client will only have the possibility to change the room temperature, using the EVSET
remote set-point variator (installed in the room), by ±3-5°C (from parameter).
Vgraph settings:
Below find the network settings to be made on Vgraph to make it a public terminal (for the setting
procedures, consult the Vgraph hardware manual):
CANbus address: 99
CANbus map:
C-PRO CLIMA SISTEMA INSTALLER MANUAL
(maximum n°1 display for the entire system)
(maximum n°8 displays for the entire system)
(maximum n°8 displays for the entire system)
Network node
1
2
3
4
5
6
7
8
10
Page 21
Address
2
3
4
5
6
7
8
9
1
