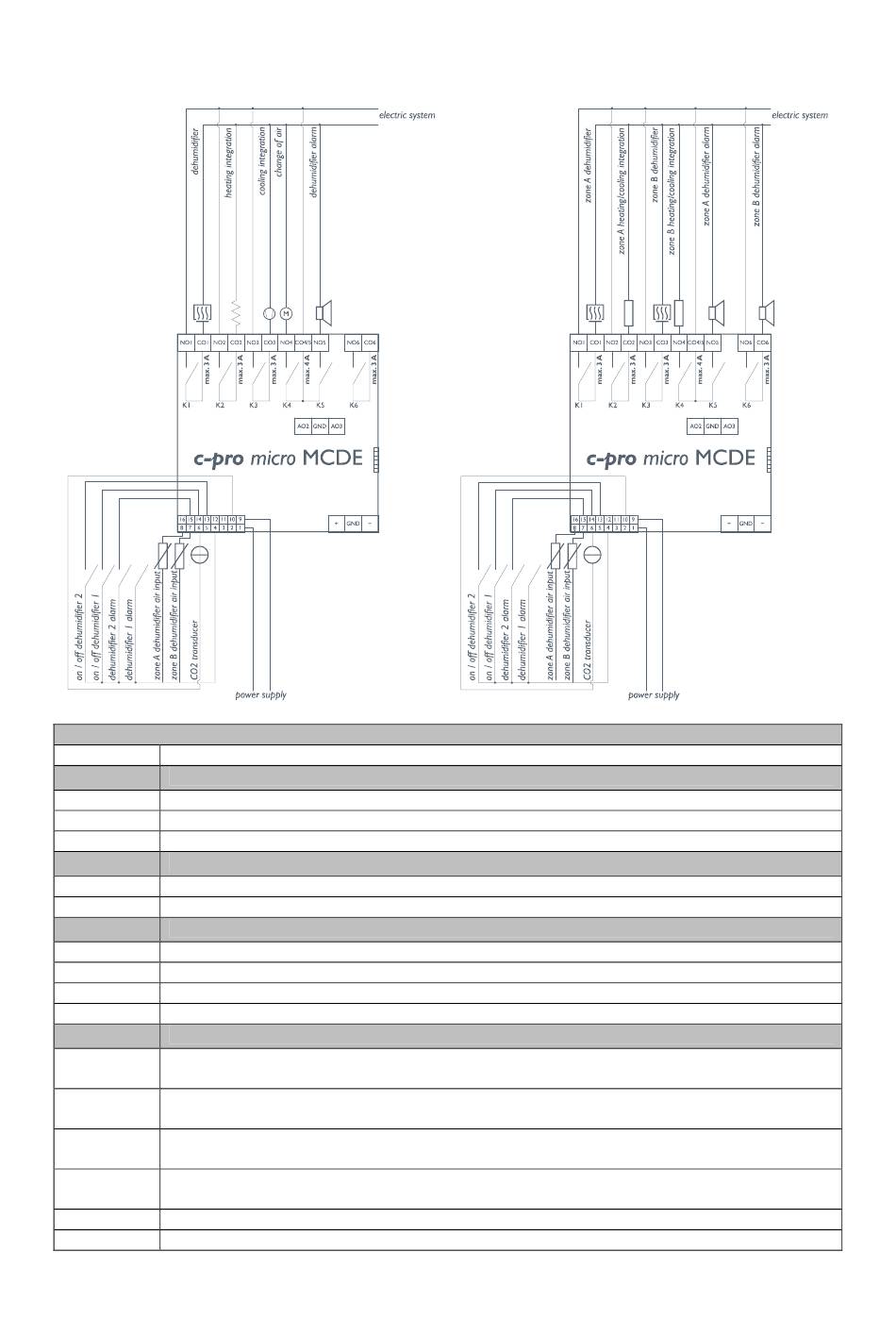

3.3.3 Dehumidifier electric connections (MCDE).
C-PRO Micro zones controller
I/O
Analogue inputs (NTC / 0-5V / 4-20mA)
Zone A dehumidifier input temperature
A/I 1 DE
A/I 2 DE
Zone B dehumidifier input temperatures
A/I 3 DE
CO2 transducer (0-5 V or 4-20 mA)
Serial ports
TTL (485)
TTL with EVIF external interface becomes RS485 Modbus RTU
At the c-pro CLIMA system modules
CANbus
Digital inputs (ON-OFF pocoverial-free contact)
Zone A dehumidifier alarm
D/I 1 DE
D/I 2 DE
Zone B dehumidifier alarm
D/I 3 DE
Zone A dehumidifier ON-OFF
Zone B dehumidifier ON-OFF
D/I 4 DE
Digital outputs (Relay)
D/O 1 DE
Dehumidifier (Type 1)
Zone A dehumidifier (Type 2)
D/O 2 DE
Heating integration (Type 1)
Zone A heating/cooling integration (Type 2)
Cooling integration (Type 1)
D/O 3 DE
Zone B dehumidifier (Type 2)
D/O 4 DE
Renew damper
Zone B heating/cooling integration (Type 2)
D/O 5 DE
Zone A dehumidifier alarm
Zone B dehumidifier alarm
D/O 6 DE
C-PRO CLIMA SISTEMA INSTALLER MANUAL
Page 15
