Evco EV3221 Manual

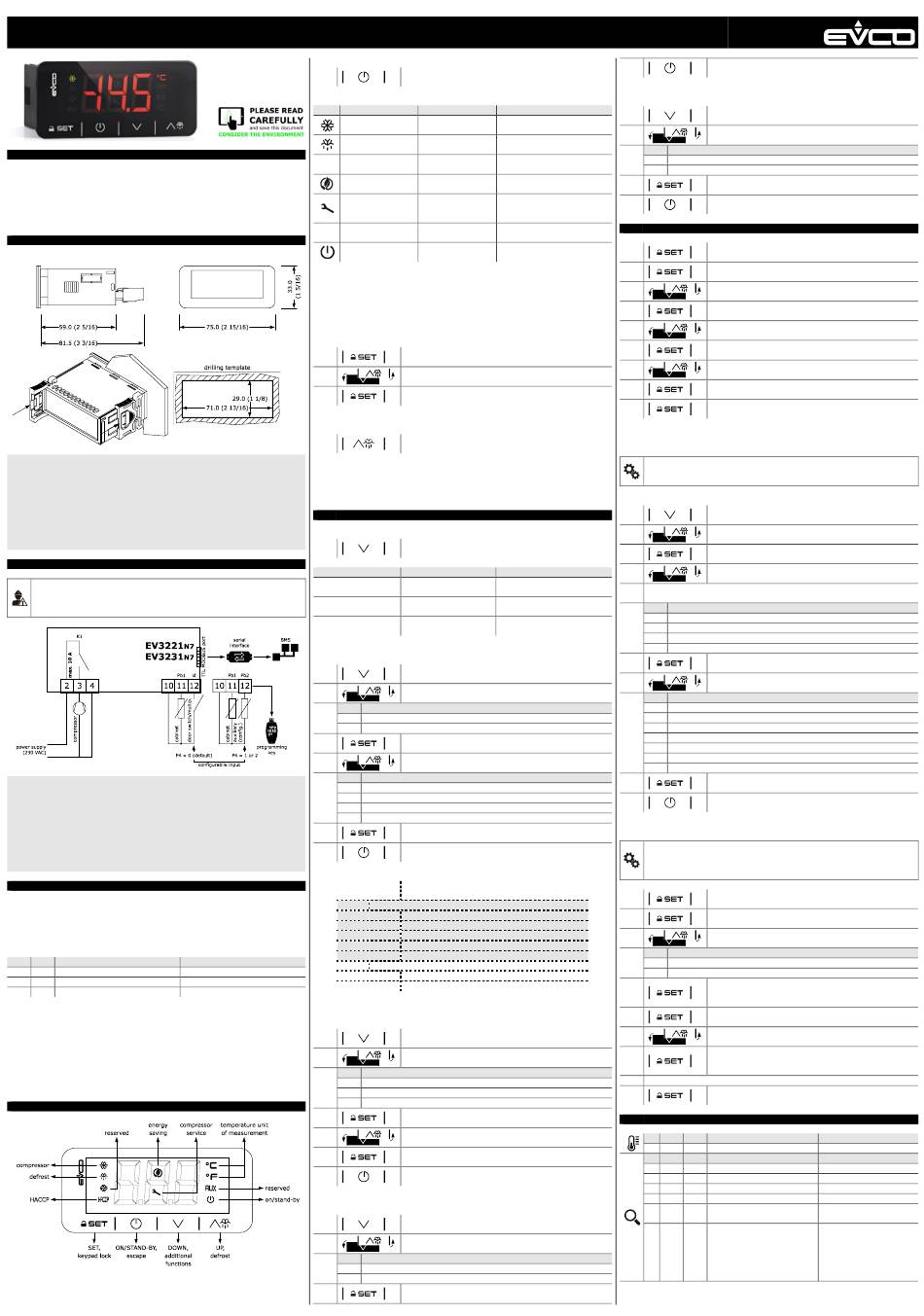

EVCO S.p.A. | EV3221 & EV3231 | Instruction sheet ver. 1.0 | Code 1043221E103 | Page 1 of 2 | PT 30/16

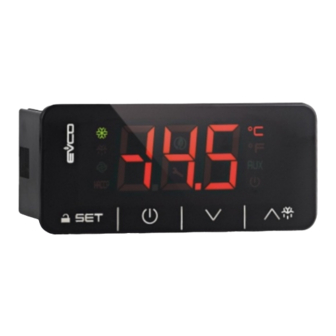

EV3221 & EV3231
E ENGLISH
- controllers for normal temperature units
- power supply 230 VAC
- cabinet probe (PTC/NTC)
- compressor relay 16 A res. @ 250 VAC or 30 A res. @ 250 VAC (according to the
model)
- TTL MODBUS slave port for BMS
- cooling or heating operation.
1

MEASUREMENTS AND INSTALLATION

Measurements in mm (inches). To be fitted to a panel, snap-in brackets provided.

INSTALLATION PRECAUTIONS

- The thickness of the panel must be between 0.8 and 2.0 mm (1/32 and 1/16 in)
- Ensure that the working conditions are within the limits stated in the TECHNICAL
SPECIFICATIONS section.
- Do not install the device close to heat sources, equipment with a strong magnetic field,
in places subject to direct sunlight, rain, damp, excessive dust, mechanical vibrations
or shocks.
- In compliance with safety regulations, the device must be installed properly to ensure
adequate protection from contact with electrical parts. All protective parts must be
fixed in such a way as to need the aid of a tool to remove them.
2

ELECTRICAL CONNECTION

N.B.
- Use cables of an adequate section for the current running through them.
- To reduce any electromagnetic interference connect the power cables as far away
as possible from the signal cables.

PRECAUTIONS FOR ELECTRICAL CONNECTION

- If using an electrical or pneumatic screwdriver, adjust the tightening torque.
- If the device has been moved from a cold to a warm place, the humidity may have
caused condensation to form inside. Wait about an hour before switching on the
power.
Make sure that the supply voltage, electrical frequency and power are within the set
-
limits. See the section TECHNICAL SPECIFICATIONS.
Disconnect the power supply before doing any type of maintenance.
-
Do not use the device as safety device.
-
For repairs and for further information, contact the EVCO sales network.
-
3 FIRST-TIME
1. Install following the instructions given in the section MEASUREMENTS AND INSTALLA-
TION.
2. Power up the device as shown in the section ELECTRICAL CONNECTION and an internal
test will be run.
The test normally takes a few seconds, when it is finished the display will switch off.
3. Configure the device as shown in the section Setting configuration parameters.
Recommended configuration parameters for first-time use.
PAR. DEF. PARAMETER
SP 0.0 setpoint
P0 1 probe type
P2 0 temperature unit of measurement
Then check that the remaining settings are appropriate; see the section CONFIGURA-
TION PARAMETERS.
4. Disconnect the device from the mains.
5. Make the electrical connection as shown in the section ELECTRICAL CONNECTION with-
out powering up the device.
6. For the connection in an RS-485 network connect the interface EVIF22TSX or
EVIF23TSX, to activate real time functions connect the module EVIF23TSX; see the
relevant instruction sheets.
7. Power up the device.
4

USER INTERFACE AND MAIN FUNCTIONS

Controllers for refrigerated cabinets, undercounters and islands,
4.1

Switching the device on/off

1.
If the device is switched on, the display will show the P5 value ("cabinet temperature" default);
if the display shows an alarm code, see the section ALARMS.
LED ON
compressor on
defrost active
saved HACCP alarm
HACCP
energy saving active
request for compres-
sor service
view temperature
°C/°F
device off
If 30 s have elapsed without the keys being pressed, the display will show the "Loc" label and
the keypad will lock automatically.
4.2 Unlock keypad
Touch a key for 1 s: the display will show the label "UnL".
4.3

Set the setpoint

Check that the keypad is not locked.
1.
2.
3.
4.4

Activate manual defrost

Check that the keypad is not locked and that overcooling is not active.
1.
If P4 = 1, defrost is activated provided that the evaporator temperature is lower than the d2
threshold.
4.5 Silence buzzer (if present and A13 = 1)
Touch a key.
5 ADDITIONAL FUNCTIONS
5.1 Activate/deactivate overcooling, overheating and manual energy saving
Check that the keypad is not locked.
1.
FUNCTION
overcooling
overheating
energy saving
5.2 View/delete HACCP alarm information
Check that the keypad is not locked.
1.
2.
LAB.
LS
rLS
3.
4.
COD.
AL
AH
id
PF
5.
6.
Example of alarm information (e.g. a high temperature alarm).
8.0
Sta
MIN... MAX.
dur
r1... r2
0 = PTC 1 = NTC
0 = °C 1 = °F
5.3 View/delete compressor functioning hours and view compressor start-up
number
Check that the keypad is not locked.
1.
2.
LAB.
CH
rCH
nS1
3.
4.
5.
6.
5.4

View the temperature detected by the probes

Check that the keypad is not locked.
1.
2.
LAB.
Pb1
Pb2
3.
with energy-saving strategies
If POF = 1, touch the ON/STAND-BY key for 2 s.
OFF FLASHING
compressor off - compressor protection active
- setpoint setting active
- dripping active
- new HACCP alarm saved
- -
- - settings active
- access to additional functions
active
- overcooling or overheating active
device on device on/off active
Touch the SET key.
Touch the UP or DOWN key within 15 s to set the value within
the limits r1 and r2 (default "-50... 50")
Touch the SET key (or do not operate for 15 s).
Touch the UP key for 2 s.
Touch the DOWN key.
CONDITION CONSEQUENCE
r5 = 0, r8 = 1 and defrost the setpoint becomes "setpoint -
not active r6", for the r7 duration
r5 and r8 = 1 the setpoint becomes "setpoint +
r6", for the r7 duration
r5 = 0 and r8 = 2 the setpoint becomes "setpoint +
r4", at maximum for HE2 duration
Touch the DOWN key for 4 s.
Touch the UP or DOWN key within 15 s to select a label.
DESCRIPTION
view HACCP alarm information
delete HACCP alarm information
Touch the SET key.
Touch the UP or DOWN key to select an alarm code (when label
"LS" is selected) or to set "149" (when label "rLS" is selected).
DESCRIPTION
low temperature alarm
high temperature alarm
door switch alarm
power failure alarm (only if module EVIF23TSX is connected)
Touch the SET key.
Touch the ON/STAND-BY key (or do not operate for 60 s) to exit
the procedure.
critical value (cabinet/ calculated product temperature)
was 8.0 °C/°F
(only if module EVIF23TSX is connected)
y15 alarm signalled in 2015
n03 alarm signalled in March
d26 alarm signalled on 26 March 2015
h16 alarm signalled at 16:00
n30 alarm signalled at 16:30
h01 alarm lasted 1h
n15 alarm lasted 1h 15 min
Touch the DOWN key for 4 s.
Touch the UP or DOWN key within 15 s to select a label.
DESCRIPTION
view compressor functioning hours (hundreds)
delete compressor functioning hours
compressor start-up number (thousands)
Touch the SET key.
Touch the UP or DOWN key to set "149" (when label "rCH" is se-
lected).
Touch the SET key.
Touch the ON/STAND-BY key (or do not operate for 60 s) to exit
the procedure.
Touch the DOWN key for 4 s.
Touch the UP or DOWN key within 15 s to select a label.
DESCRIPTION
cabinet temperature
auxiliary temperature (if P4 = 1 or 2)
Touch the SET key.
Touch the ON/STAND-BY key (or do not operate for 60 s) to exit
4.
the procedure.
5.5 View the project number and the firmware revision
Check that the keypad is not locked.
1. Touch the DOWN key for 4 s.
2. Touch the UP or DOWN key within 15 s to select a label.
LAB. DESCRIPTION
PrJ view the project number
rEU view the firmware revison
3. Touch the SET key.
Touch the ON/STAND-BY key (or do not operate for 60 s) to exit
4.
the procedure.
6

SETTINGS

6.1

Setting configuration parameters

1. Touch the SET key for 4 s: the display will show the label "PA".
2. Touch the SET key.
Touch the UP or DOWN key within 15 s to set the PAS value (de-
3.
fault "-19").
Touch the SET key (or do not operate for 15 s): the display will
4.
show the label "SP".
5. Touch the UP or DOWN key to select a parameter.
6. Touch the SET key.
7. Touch the UP or DOWN key within 15s to set the value.
8. Touch the SET key (or do not operate for 15 s).
Touch the SET key for 4 s (or do not operate for 60 s) to exit the
9.
procedure.
6.2 Set the date, time and day of the week (only if module EVIF23TSX is con-
nected)
N.B.
Do not disconnect the device from the mains within two minutes since the setting of
the time and day of the week.
Check that the keypad is not locked.
1. Touch the DOWN key for 4 s.
2. Touch the UP or DOWN key within 15 s to select the label "rtc".
Touch the SET key: the display will show the label "yy" followed
3.
by the last two figures of the year.
4. Touch the UP or DOWN key within 15 s to set the year.
5. Repeat actions 3. and 4. to set the next labels.
LAB. DESCRIPTION OF THE NUMBERS FOLLOWING THE LABEL
n month (01... 12)
d day (01... 31)
h time (00... 23)
n minute (00... 59)
Touch the SET key: the display will show the label for the day of
6.
the week.
Touch the UP or DOWN key within 15s to set the day of the
7.
week.
LAB. DESCRIPTION
Mon Monday
tuE Tuesday
UEd Wednesday
thu Thursday
Fri Friday
Sat Saturday
Sun Sunday
8. Touch the SET key: the device will exit the procedure.
9. Touch the ON/STAND-BY key to exit the procedure beforehand.
6.3

Restore the factory settings (default) and store customized settings as default

N.B.
- Check that the factory settings are appropriate; see the section CONFIGURATION
PARAMETERS.
- the storing of customized settings overwrites the default.
1. Touch the SET key for 4 s: the display will show the label "PA".
2. Touch the SET key.
3. Touch the UP or DOWN key within 15 s to set the value.
VAL. DESCRIPTION
149 value to restore the factory settings (default)
161 value to store customized settings as default
Touch the SET key (or do not operate for 15 s): the display will
4. show the label "dEF" (when value "149" is set) or the label
"MAP" (when value "161" is set).
5. Touch the SET key.
6. Touch the UP or DOWN key within 15 s to set "4".
Touch the SET key (or do not operate for 15 s): the display will
7. show for 4 s "- - -" flashing, then the device will exit the proce-
dure.
8. Interrupt the power supply to the device.
Touch the SET key 2 s before action 6. to exit the procedure be-
9.
forehand.
7 Configuration Parameters
N. PAR. DEF. SETPOINT
1 SP 0.0 setpoint
N. PAR. DEF. ANALOGUE INPUTS
2 CA1 0.0 cabinet probe offset
3 CA2 0.0 auxiliary probe offset
4 P0 1 probe type
5 P1 1 enable °C decimal point
6 P2 0 temperature unit of measure-
ment
7 P4 0 configurable input function
0 = digital input
switch/multipurpose
input)
1... 2 = analogue input (aux-
iliary probe)
MIN... MAX.
r1... r2; see r0
MIN... MAX.
-25... 25 °C/°F
-25... 25 °C/°F
0 = PTC 1 = NTC
0 = NO 1 = YES
0 = °C 1 = °F
0 = door switch/multipur-
(door pose input
1 = evaporator probe
2 = condenser probe
