MVI56E-FLN ♦ ControlLogix Platform
FA Control Network Ethernet Communication Module

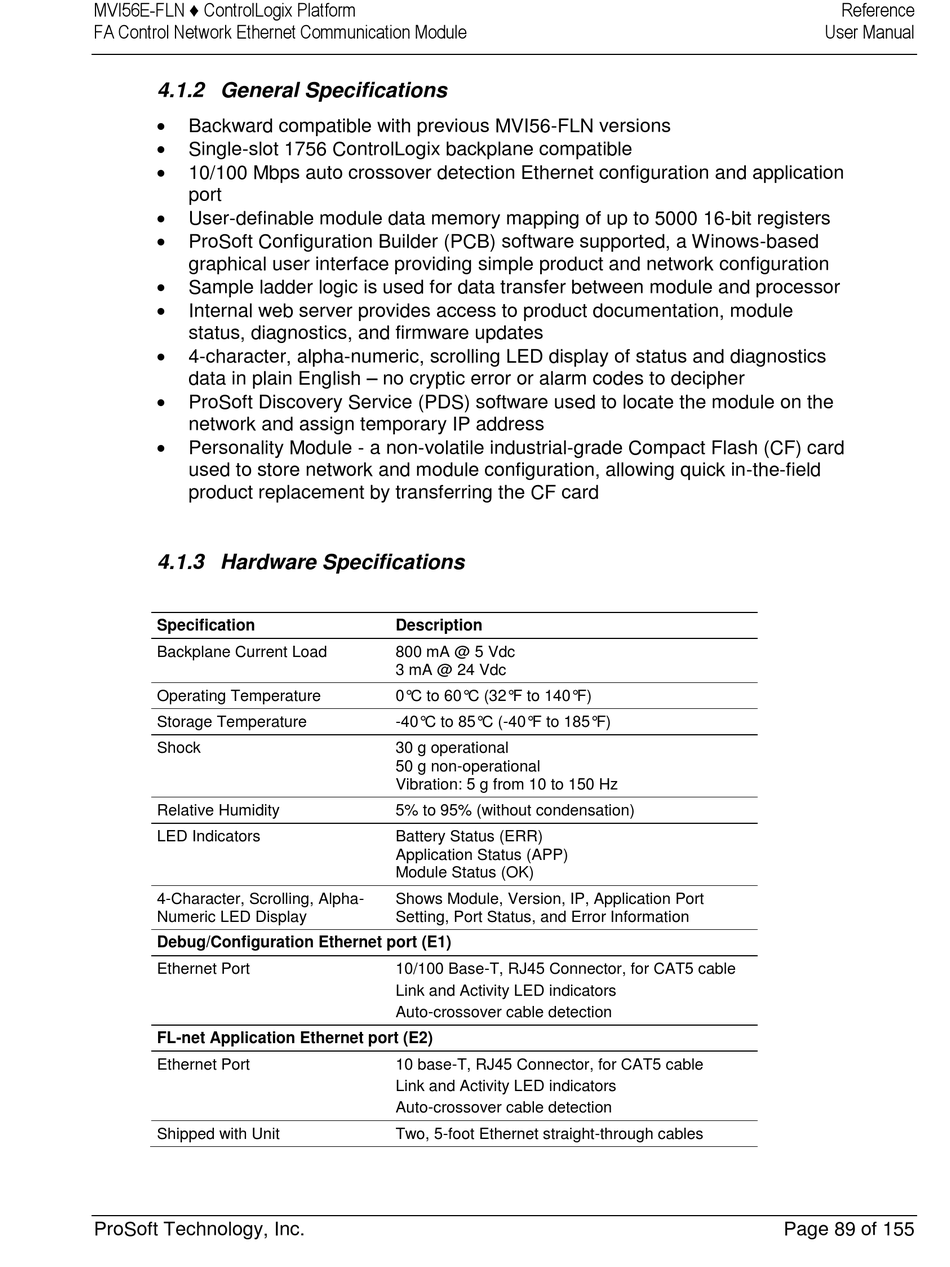

4.1.2 General Specifications


Backward compatible with previous MVI56-FLN versions

Single-slot 1756 ControlLogix backplane compatible

10/100 Mbps auto crossover detection Ethernet configuration and application
port

User-definable module data memory mapping of up to 5000 16-bit registers

ProSoft Configuration Builder (PCB) software supported, a Winows-based
graphical user interface providing simple product and network configuration

Sample ladder logic is used for data transfer between module and processor

Internal web server provides access to product documentation, module
status, diagnostics, and firmware updates

4-character, alpha-numeric, scrolling LED display of status and diagnostics
data in plain English – no cryptic error or alarm codes to decipher

ProSoft Discovery Service (PDS) software used to locate the module on the
network and assign temporary IP address

Personality Module - a non-volatile industrial-grade Compact Flash (CF) card
used to store network and module configuration, allowing quick in-the-field
product replacement by transferring the CF card

4.1.3 Hardware Specifications

Specification
Backplane Current Load
Operating Temperature
Storage Temperature
Shock
Relative Humidity
LED Indicators
4-Character, Scrolling, Alpha-
Numeric LED Display
Debug/Configuration Ethernet port (E1)
Ethernet Port
FL-net Application Ethernet port (E2)
Ethernet Port
Shipped with Unit
ProSoft Technology, Inc.
Description
800 mA @ 5 Vdc
3 mA @ 24 Vdc
0°C to 60°C (32°F to 140°F)
-40°C to 85°C (-40°F to 185°F)
30 g operational
50 g non-operational
Vibration: 5 g from 10 to 150 Hz
5% to 95% (without condensation)
Battery Status (ERR)
Application Status (APP)
Module Status (OK)
Shows Module, Version, IP, Application Port
Setting, Port Status, and Error Information
10/100 Base-T, RJ45 Connector, for CAT5 cable
Link and Activity LED indicators
Auto-crossover cable detection
10 base-T, RJ45 Connector, for CAT5 cable
Link and Activity LED indicators
Auto-crossover cable detection
Two, 5-foot Ethernet straight-through cables
