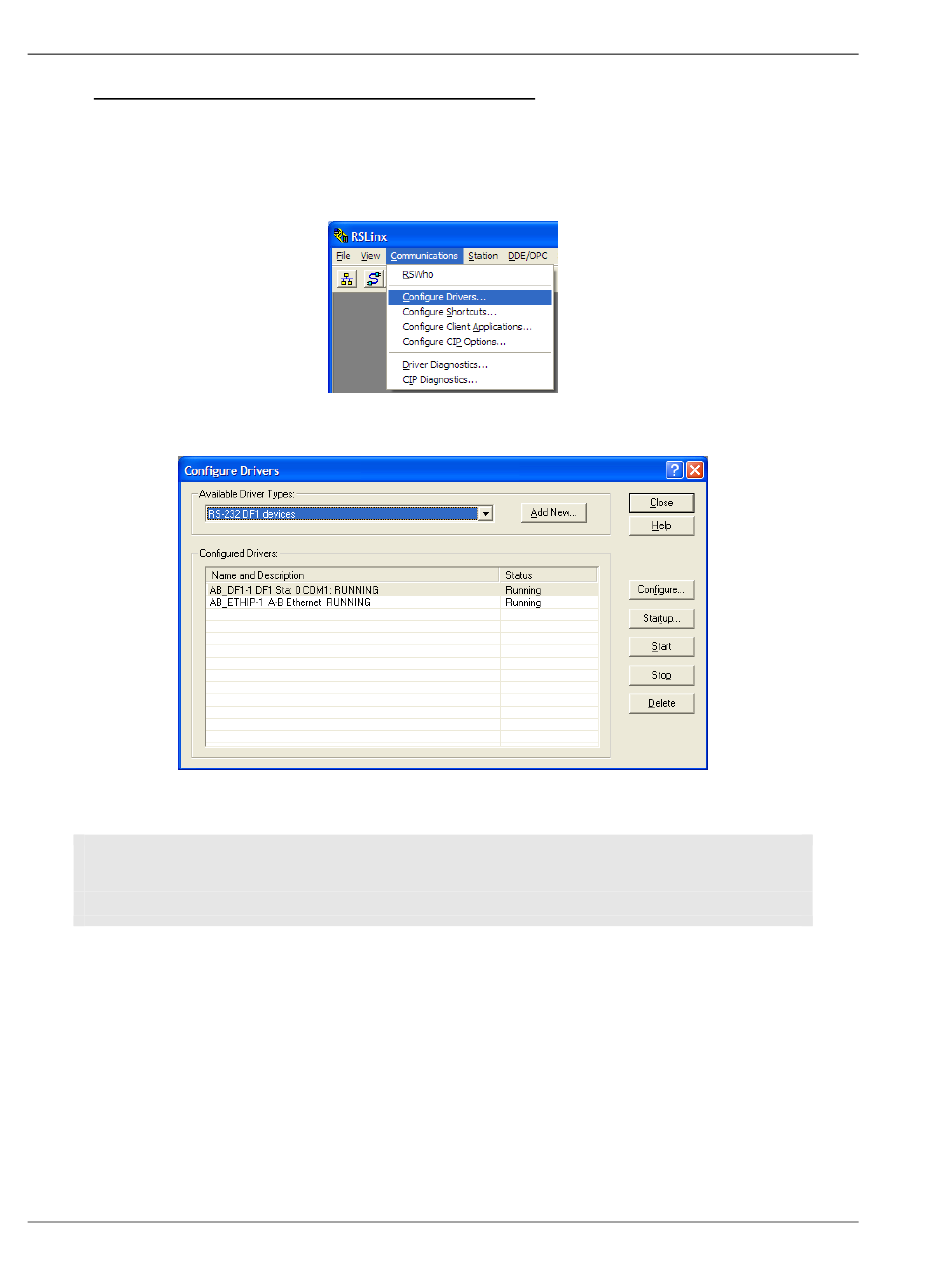

Configuring the RSLinx Driver for the PC COM Port
If RSLogix is unable to establish communication with the processor, follow these
steps.
1 Open RSLinx.
2 Open the C
This action opens the Configure Drivers dialog box.
Note: If the list of configured drivers is blank, you must first choose and configure
a driver from the Available Driver Types list. The recommended driver type to
choose for serial communication with the processor is RS-232 DF1 Devices.
Page 26 of 155
menu, and choose C
OMMUNICATIONS
MVI56E-FLN ♦ ControlLogix Platform
FA Control Network Ethernet Communication Module
D
ONFIGURE RIVERS
