2.5.2 The Diagnostics Menu

The following sections describe several items in the Diagnostics menu useful for
verifying communication in a newly set-up module. For information on the
remaining menu items, see Diagnostics Menu Items.

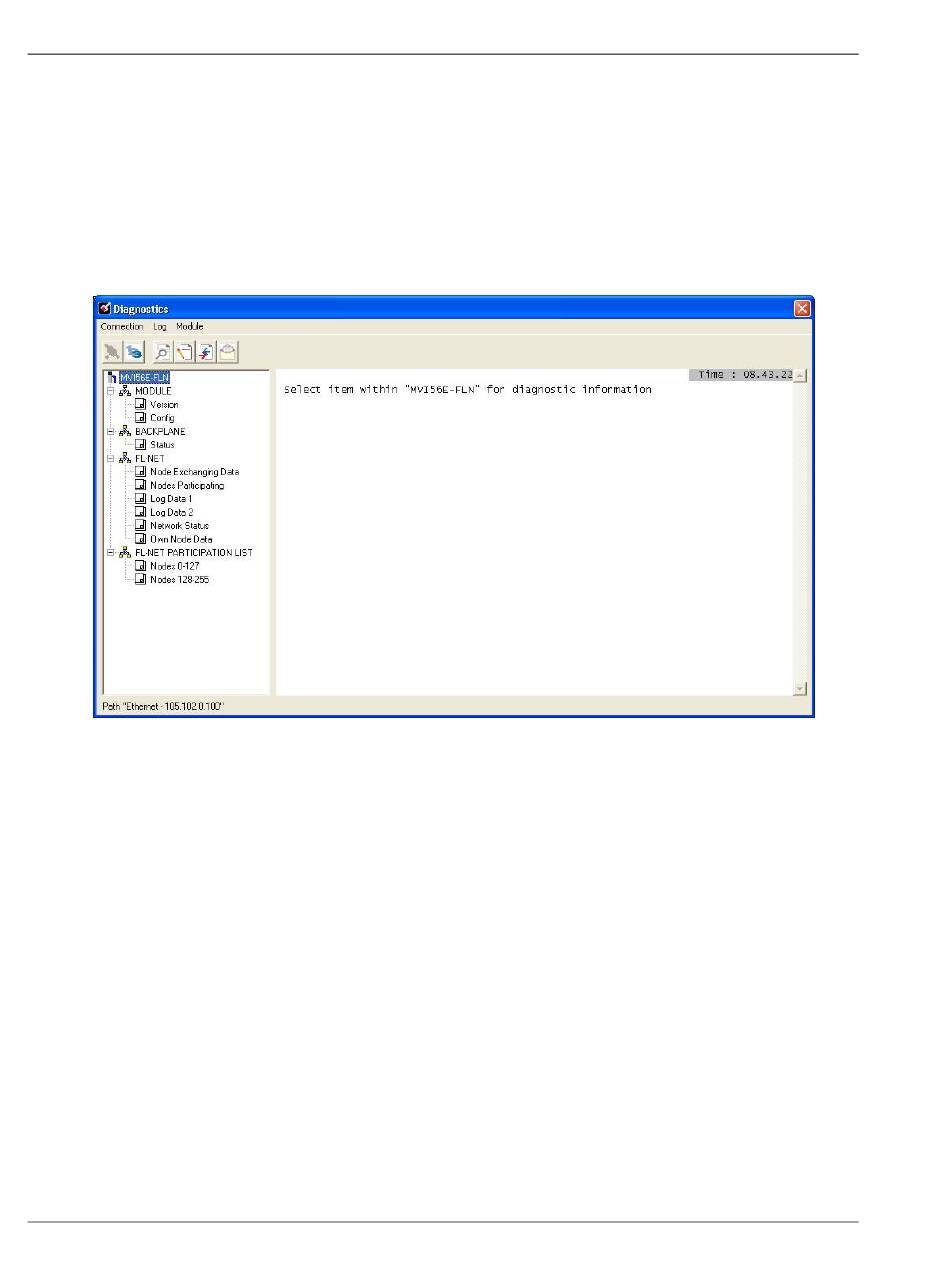

The Diagnostics menu for this module is arranged as a tree structure, with the
Main menu at the top of the tree, and one or more submenus for each menu
command. The first menu you see when you connect to the module is the Main
menu.
