Diagnostics Menu Items; Monitoring Module Information - ProSoft MVI56E-FLN User Manual

Diagnostics and Troubleshooting
User Manual
3.2

Diagnostics Menu Items

This section describes PCB Diagnostics menu items that were not addressed in
the chapter on Configuring the MVI56E-FLN Module. For general information on
accessing the Diagnostics menu, please refer to Using the Diagnostic Menu in
Prosoft Configuration Builder. For specific information on items in the FL-NET
submenu, please see The Diagnostics Menu (page 54).

3.2.1 Monitoring Module Information

Use the MODULE menu to view configuration and hardware information for the
MVI56E-FLN module's backplane and Ethernet application port.

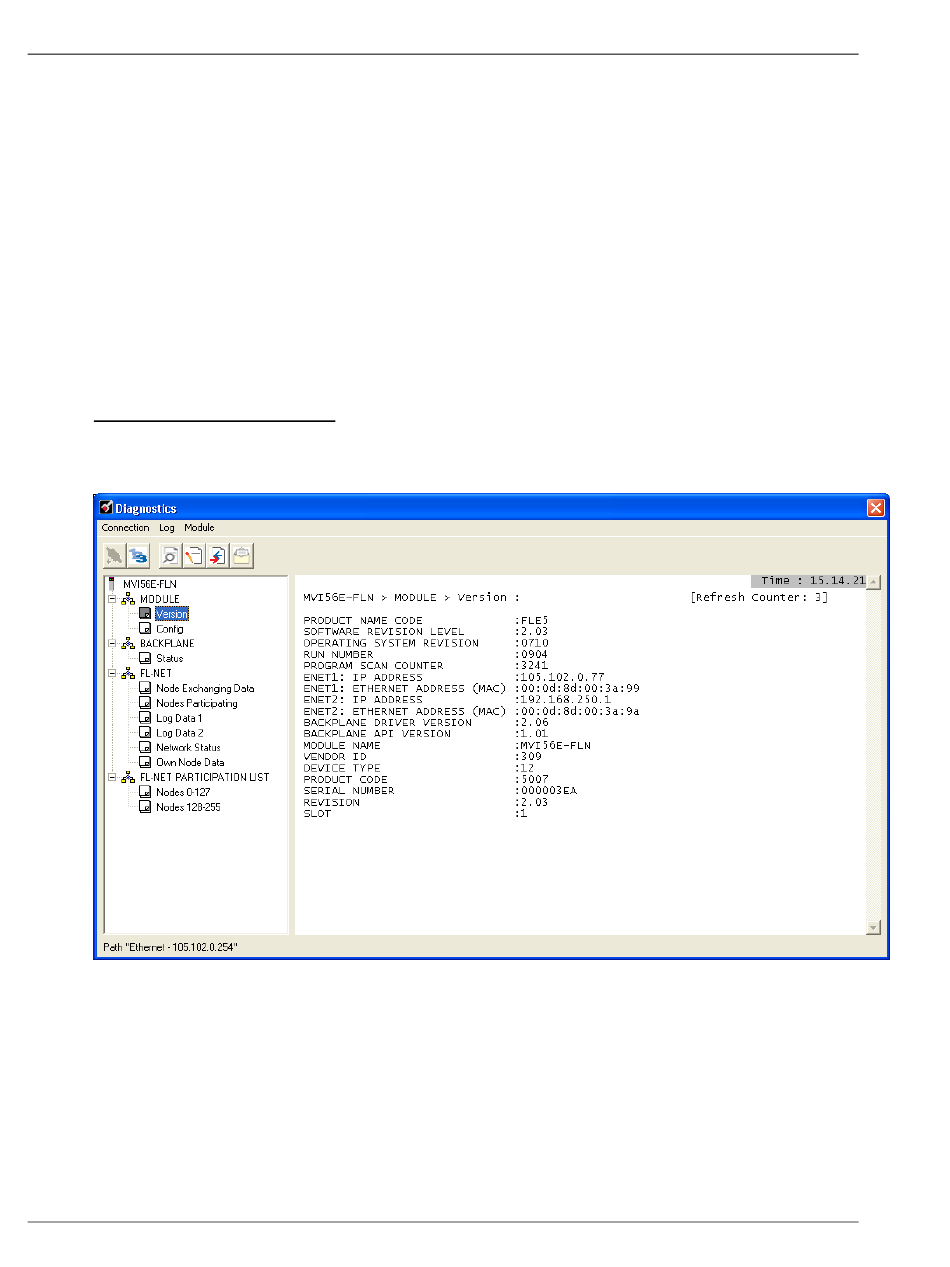

Viewing Version Information
From the MODULE submenu select V
firmware information.
The values on this menu correspond with the contents of the module's general
product information registers.
