Configuring the FL-net Device

2.4.1 Setting Up the FL/ET-T-V2 Module

Setting Operation Mode Switch

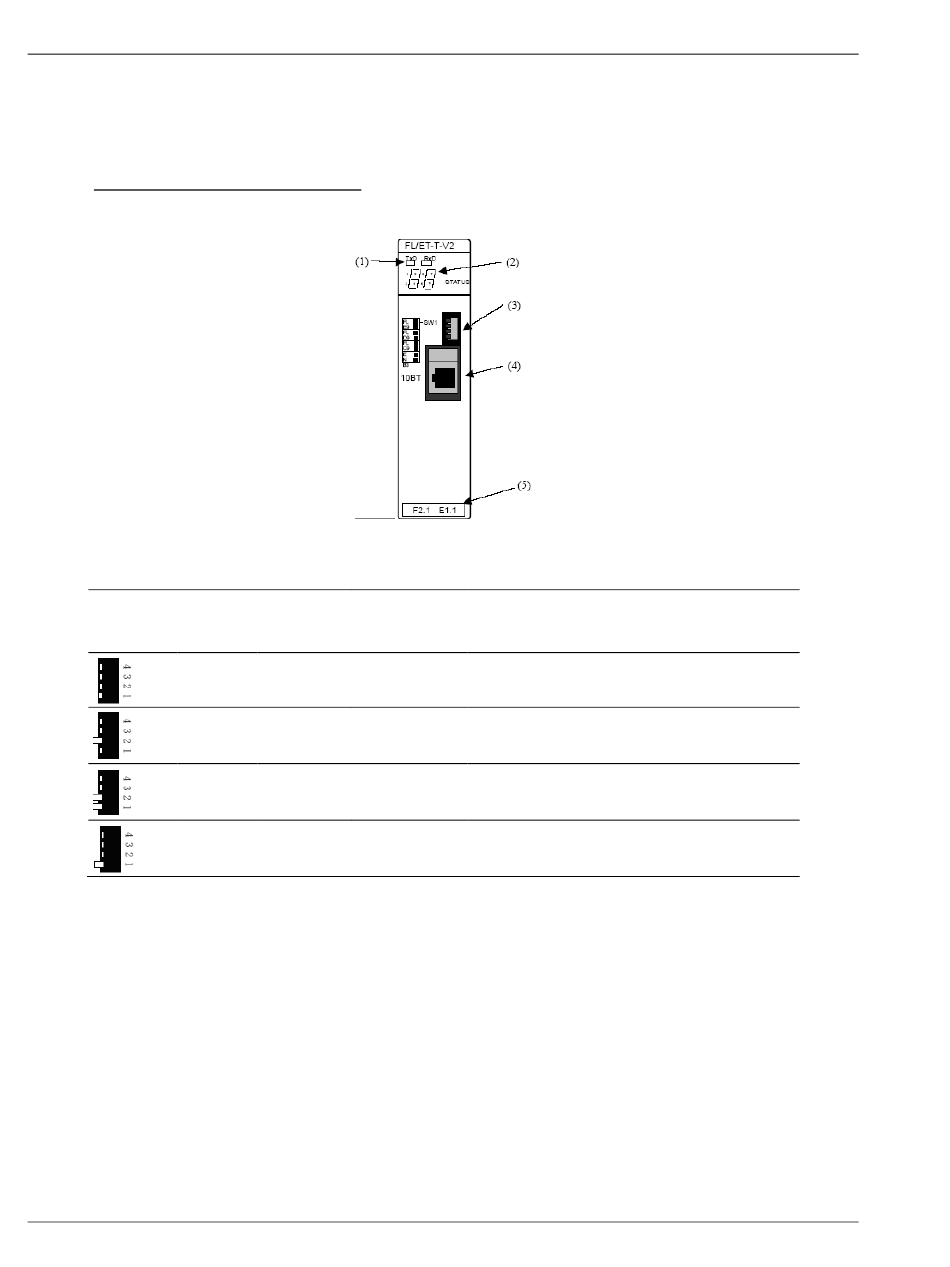

Select the correct operation mode through the switch (item 3 below)
The following options are available. This procedure will consider the first option
(ID Code = C9 - 8kbytes of Link Memory Capacity)
Switch Positions
1 & 2 off
1 off, 2
on
1 & 2 on
1 on, 2
off
Page 44 of 155
I/O module Link Memory
ID Code Capacity
C9 8 kbytes
D9 16 kbytes
E9 32 kbytes
B3 4 kbytes
MVI56E-FLN ♦ ControlLogix Platform
FA Control Network Ethernet Communication Module
Data Link Capacity (maximum number of
total words in reception and transmission
areas)
Relay link: 2048 points (128 words) (*2)
Register link: 2048 words (*1)
Relay link: 2048 points (128 words) (*2)
Register link: 6144 words (* 1)
Relay link: 2048 points (128 words) (*2)
Register link: 8192 words (*1)
The module is operated as Ethernet.
ProSoft Technology, Inc.
