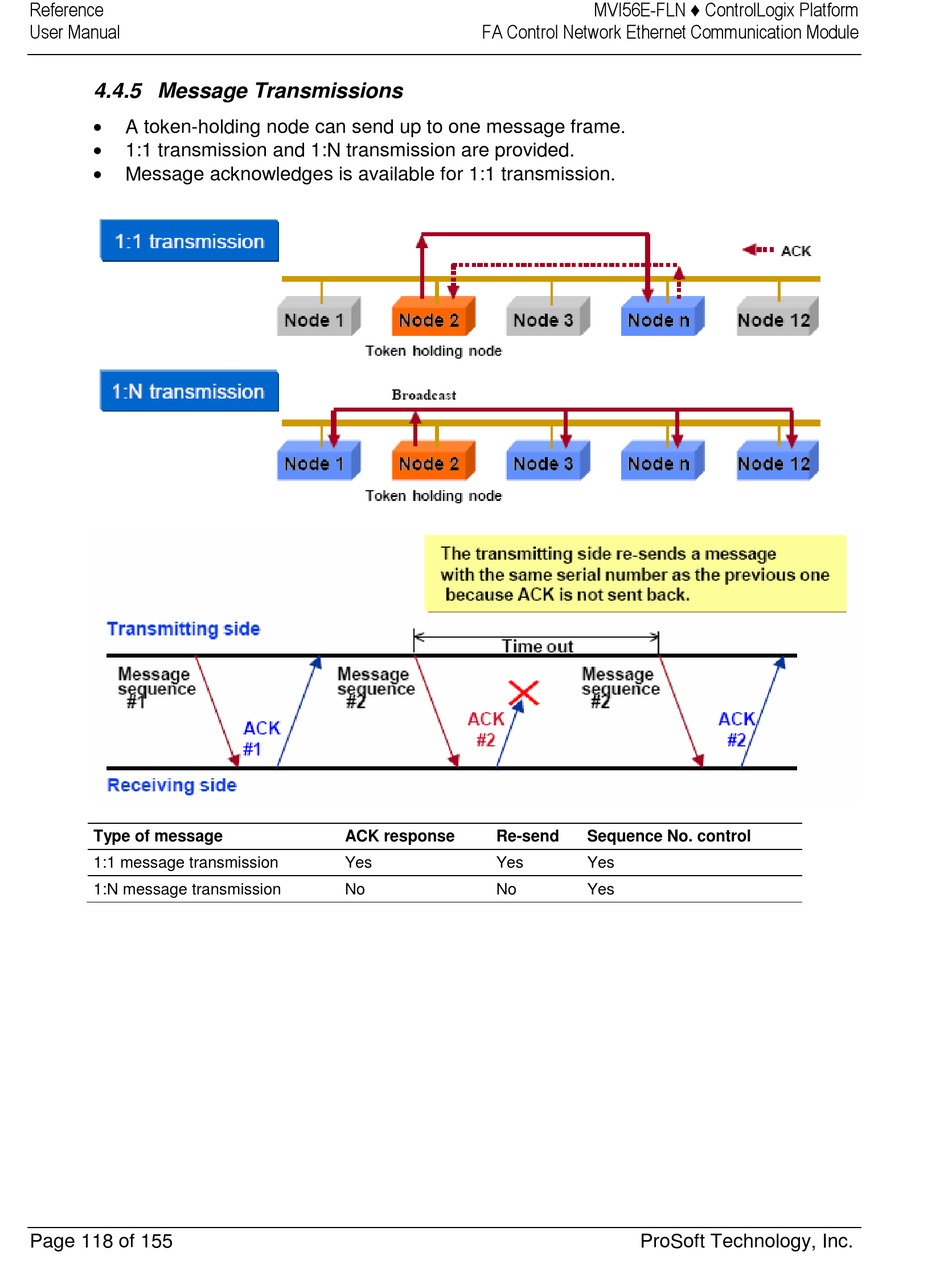

4.4.5 Message Transmissions


A token-holding node can send up to one message frame.

1:1 transmission and 1:N transmission are provided.

Message acknowledges is available for 1:1 transmission.
Type of message
1:1 message transmission
1:N message transmission
Page 118 of 155
FA Control Network Ethernet Communication Module
ACK response Re-send
Yes Yes
No No
MVI56E-FLN ♦ ControlLogix Platform
Sequence No. control
Yes
Yes
