MVI56E-FLN ♦ ControlLogix Platform
FA Control Network Ethernet Communication Module
If the Test Connection procedure fails, you will see an error message. To correct
the error, follow these steps.
1
Click OK to dismiss the error message.
2
On the Download dialog box, click B
Discovery Service.
3

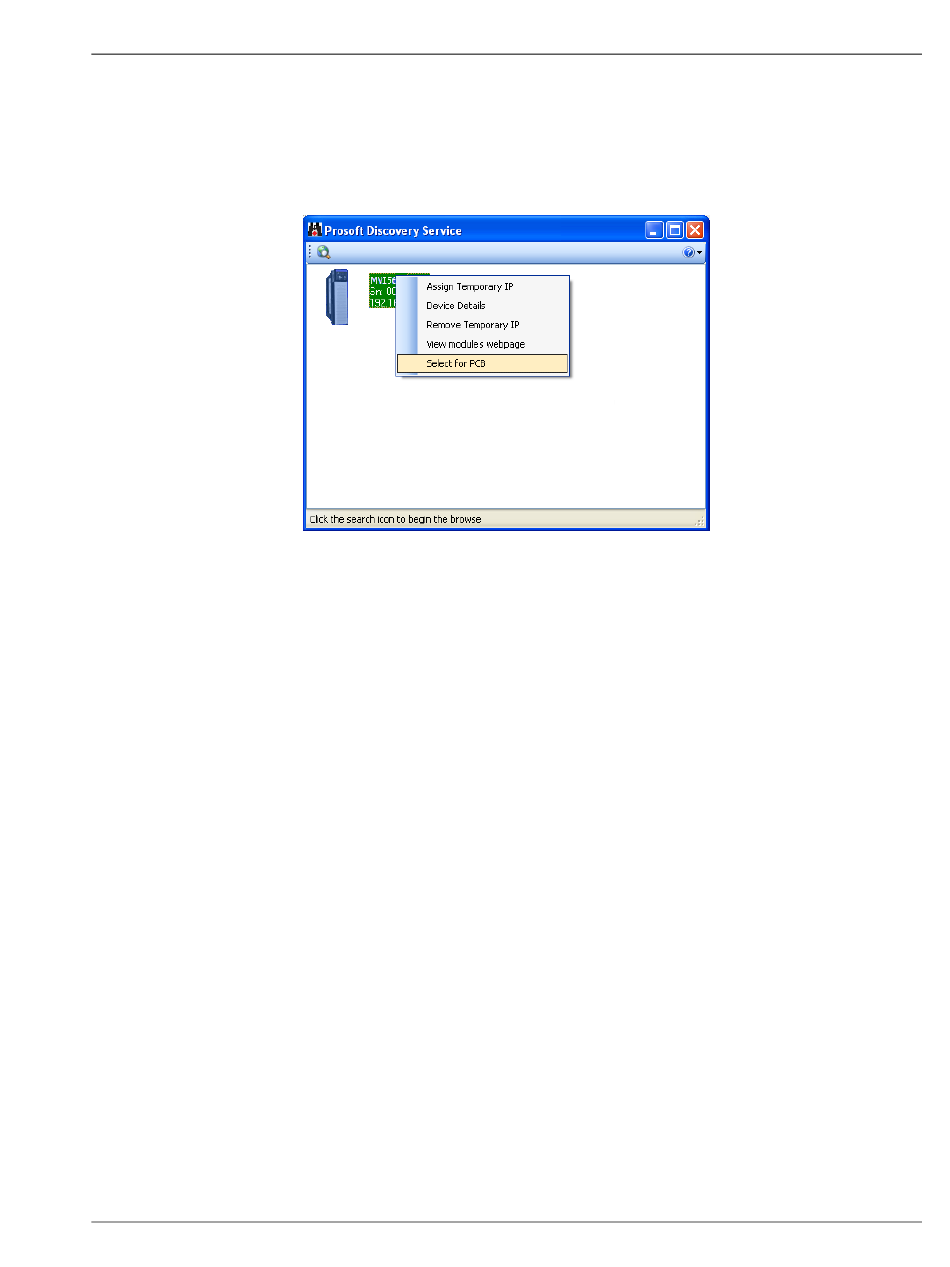

Select the module, and then click the right mouse button to open a shortcut
menu. On the shortcut menu, choose S
4
Close ProSoft Discovery Service.
5
Click D
OWNLOAD
ProSoft Technology, Inc.
ROWSE
to transfer the configuration to the module.
Configuring the MVI56E-FLN Module
D
to open ProSoft
EVICES
PCB.
ELECT FOR
User Manual
Page 43 of 155
