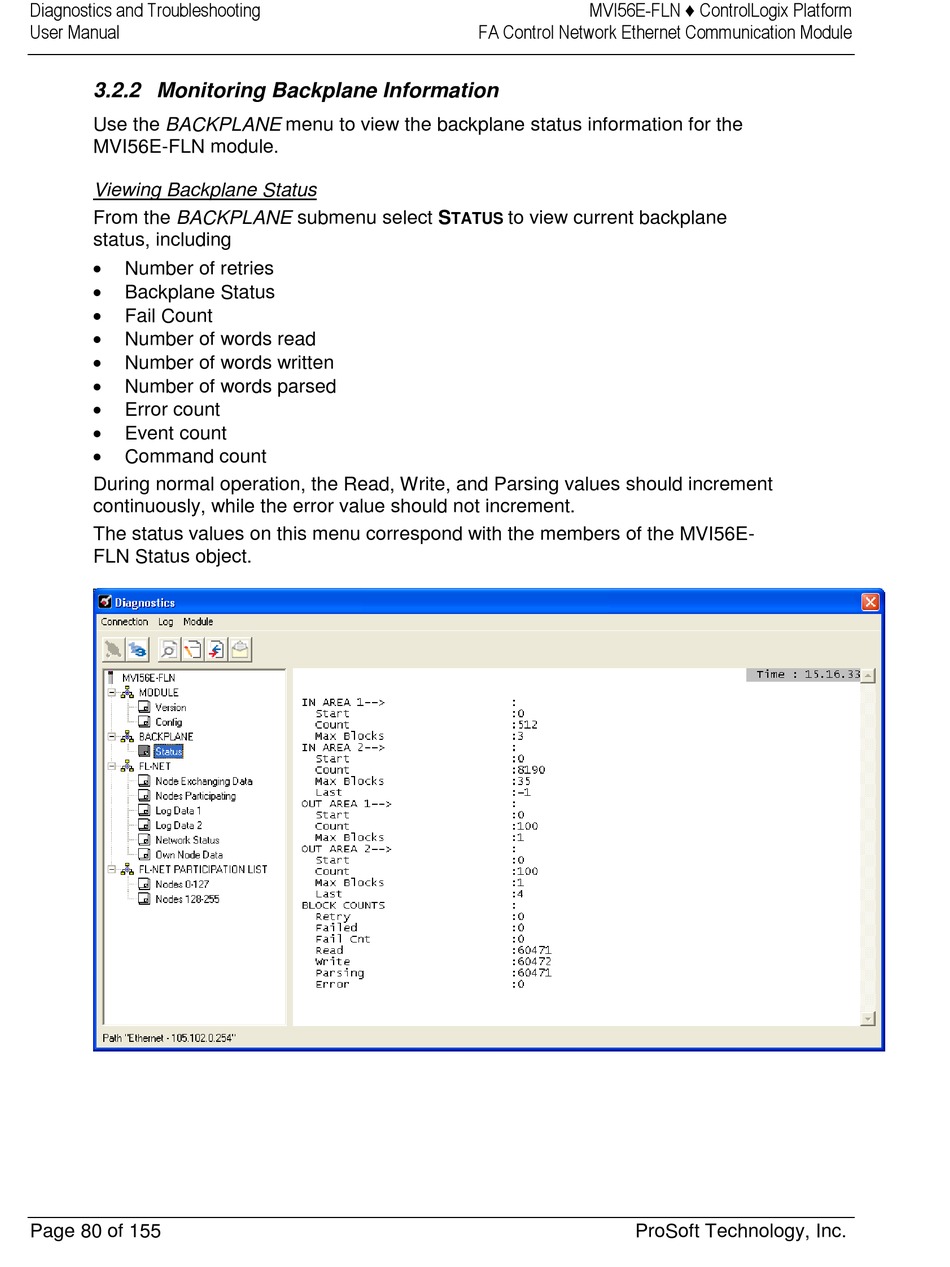

3.2.2 Monitoring Backplane Information

Use the BACKPLANE menu to view the backplane status information for the
MVI56E-FLN module.
Viewing Backplane Status
From the BACKPLANE submenu select S
status, including

Number of retries

Backplane Status

Fail Count

Number of words read

Number of words written

Number of words parsed

Error count

Event count

Command count
During normal operation, the Read, Write, and Parsing values should increment
continuously, while the error value should not increment.
The status values on this menu correspond with the members of the MVI56E-
FLN Status object.
