MVI56E-FLN ♦ ControlLogix Platform
FA Control Network Ethernet Communication Module

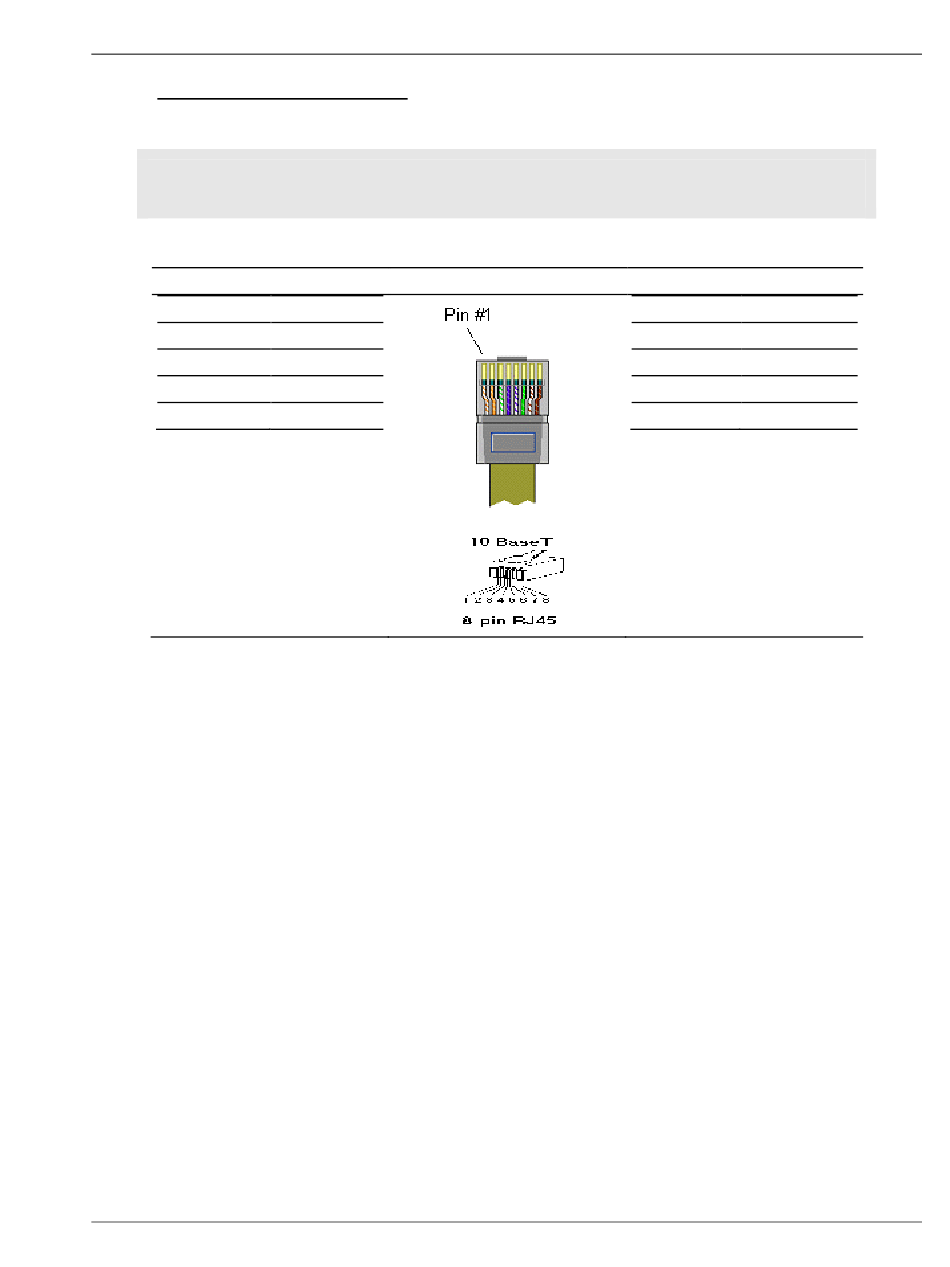

Ethernet Cable Configuration
Note: The standard connector view shown is color-coded for a straight-through
cable.
Crossover cable
RJ-45 PIN
1 Rx+
2 Rx-
3 Tx+
6 Tx-
ProSoft Technology, Inc.
RJ-45 PIN
3 Tx+
6 Tx-
1 Rx+
2 Rx-
Straight- through cable
RJ-45 PIN
RJ-45 PIN
1 Rx+
1 Tx+
2 Rx-
2 Tx-
3 Tx+
3 Rx+
6 Tx-
6 Rx-
Page 143 of 155
Reference
User Manual
