ProSoft MVI56E-FLN User Manual page 41

MVI56E-FLN ♦ ControlLogix Platform
FA Control Network Ethernet Communication Module

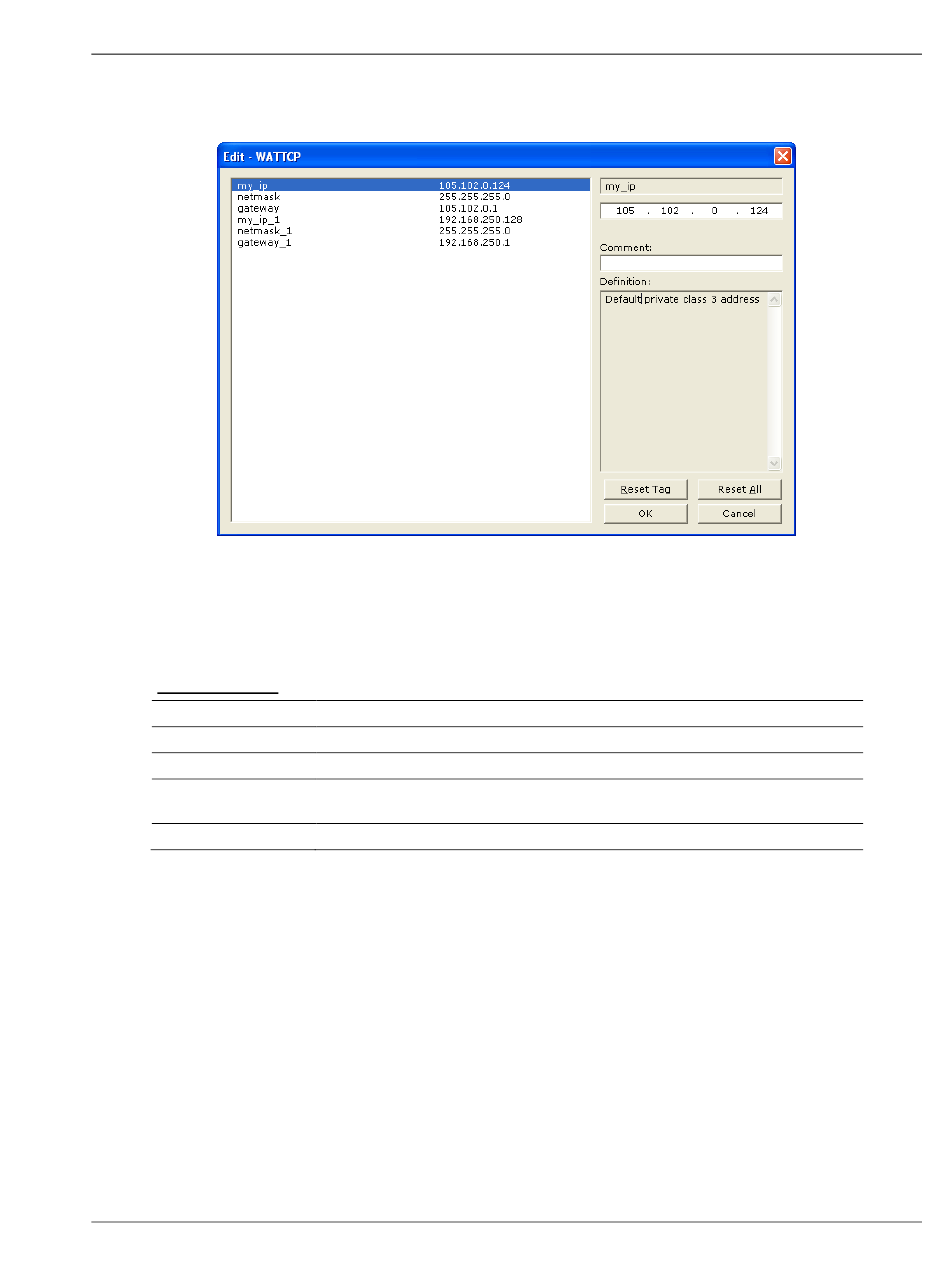

2 Double-click the E
dialog box.
3 Edit the values.
4 When you are finished editing, click OK to save your changes and return to
the ProSoft Configuration Builder main window.
Node Number
Node number
1 to 249
250 to 254
255
0
A device's node number is the last octet of its IP address.
Without a node number, the node is inoperable. If, while joining a network, a
node detects another node with an identical node number, it will not transmit any
data on the network.
ProSoft Technology, Inc.
C
THERNET ONFIGURATION
Applications
Used for standard FL-net (Version 2.00) devices.
Used for FL-net (Version 2.00) maintenance purposes.
Reserved for internal system use (used for broadcasting not available to
users).
Reserved for internal system use.
Configuring the MVI56E-FLN Module
icon. This action opens the Edit
User Manual
Page 41 of 155
