Connecting Your PC to the Module

The E1 port is for configuration only and cannot be used on the FL-net network.
The E2 port is for exclusive use on the FL-net network and cannot be used for
configuration.

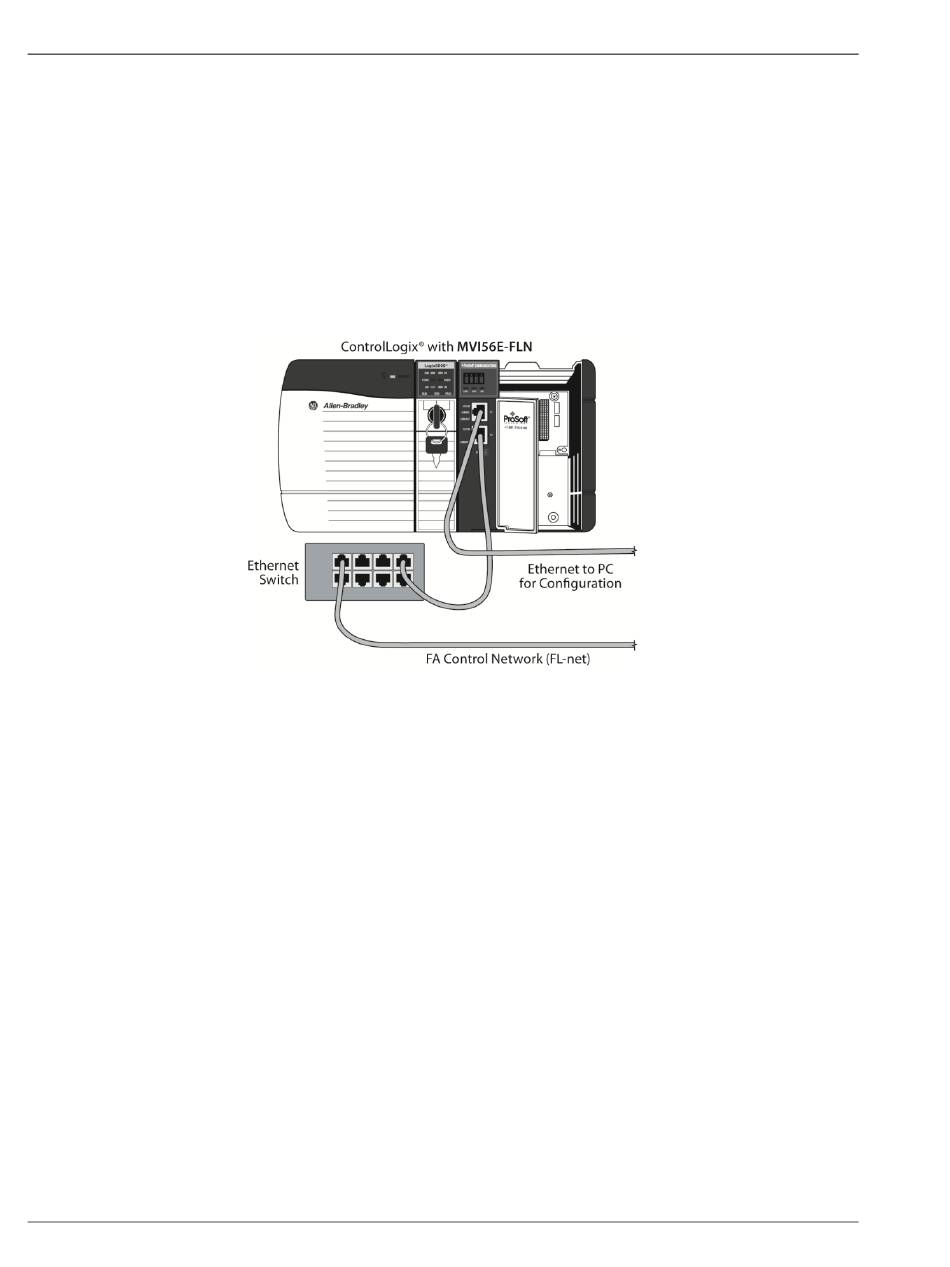

To configure the module, once it is securely mounted, connect one end of an
Ethernet cable to the Config (E1) port and connect the other end to an Ethernet
hub or switch which is accessible from the same network as your personal
computer (PC). You can also connect directly from the Ethernet port on your PC
to the Config (E1) port on the module by using an Ethernet crossover cable (not
included).
