MVI56E-FLN ♦ ControlLogix Platform
FA Control Network Ethernet Communication Module
Transferring Data from MVI56E-FLN (Area 2) to FL/ET-T-V2 module (Register
Area)

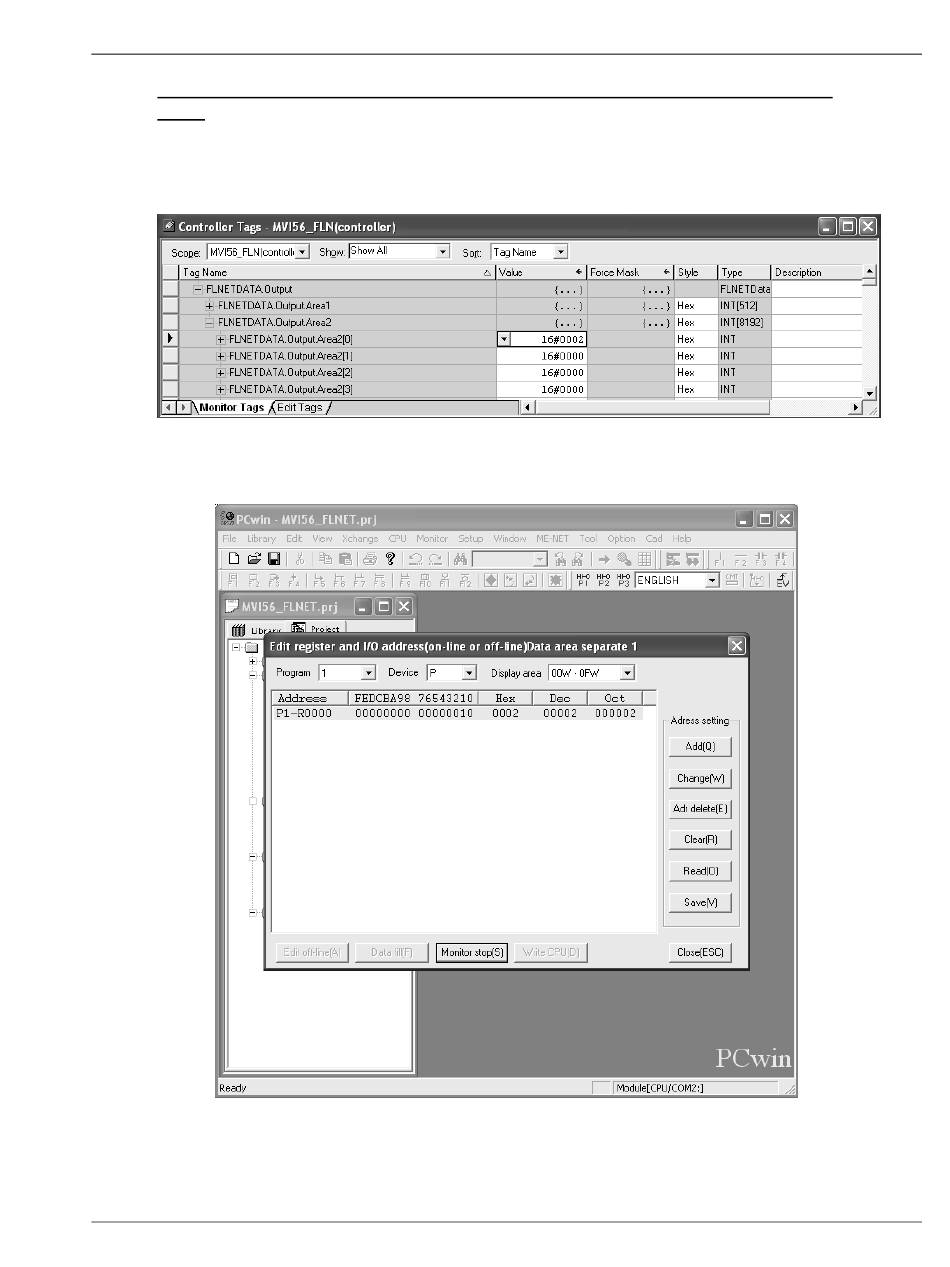

Use the FLNETDATA.Output.Area2 controller tags to transfer data from the
module Area 1 to the remote FL-net node Relay link area. For this example, use
the values in the following illustration:
Use the PCWin Register Address Monitor to monitor the value set by the module
(address R000 for our example).
