MVI56E-FLN ♦ ControlLogix Platform
FA Control Network Ethernet Communication Module
2.5

Verifying Communication

This section shows how to monitor the communication status of the configured
FL-net network (assuming that both the FL/ET-T-V2 module and the MVI56E-
FLN module were configured according to the previous sections).

2.5.1 Using the Diagnostics Menu in ProSoft Configuration Builder

To connect to the module's Configuration/Debug Ethernet port:

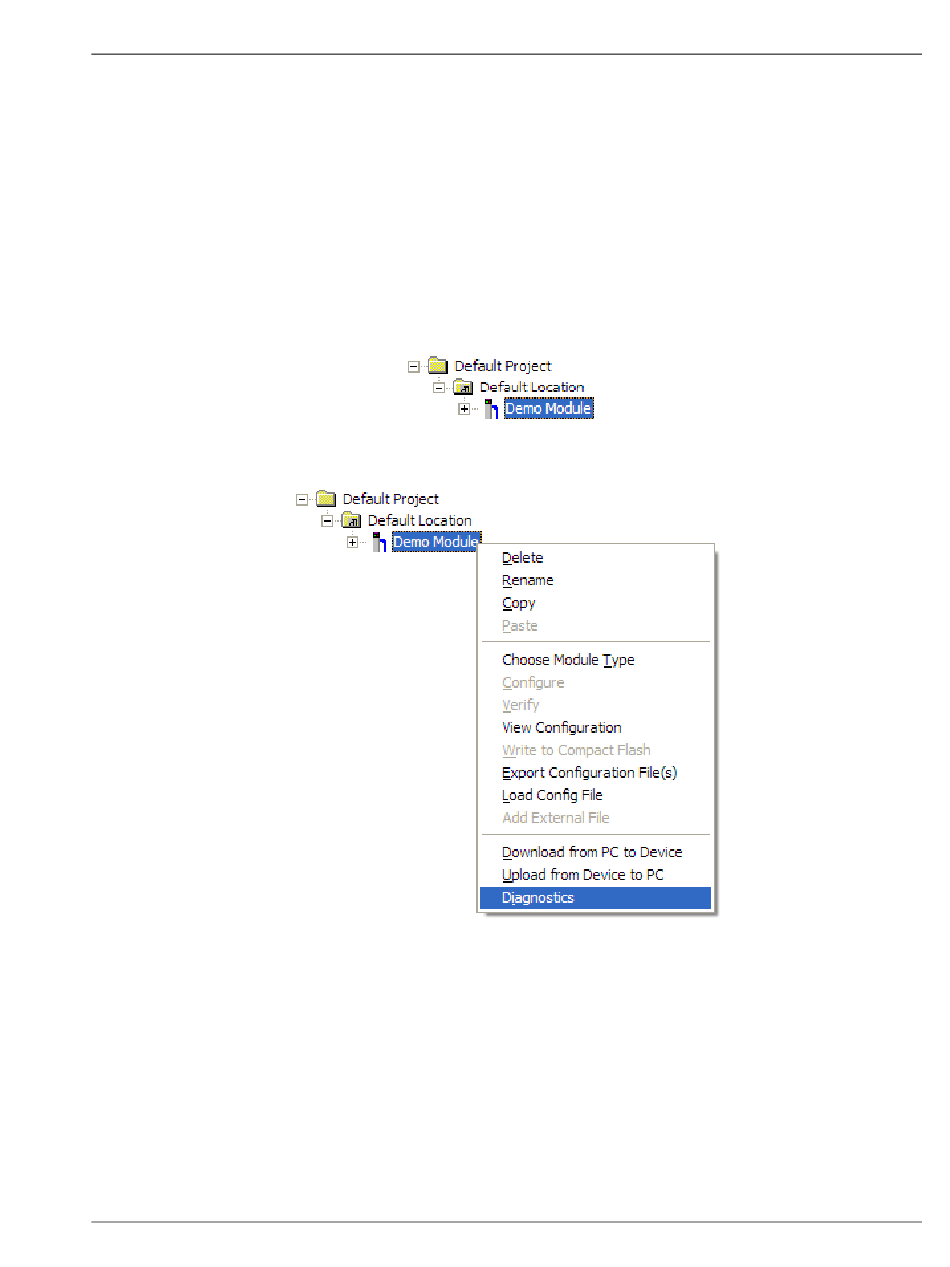

1 In ProSoft Configuration Builder, select the module, and then click the right
mouse button to open a shortcut menu.
2 On the shortcut menu, choose D
This action opens the Diagnostics dialog box.
ProSoft Technology, Inc.
.
IAGNOSTICS
Configuring the MVI56E-FLN Module
User Manual
Page 51 of 155
