MVI56E-FLN ♦ ControlLogix Platform
FA Control Network Ethernet Communication Module
2

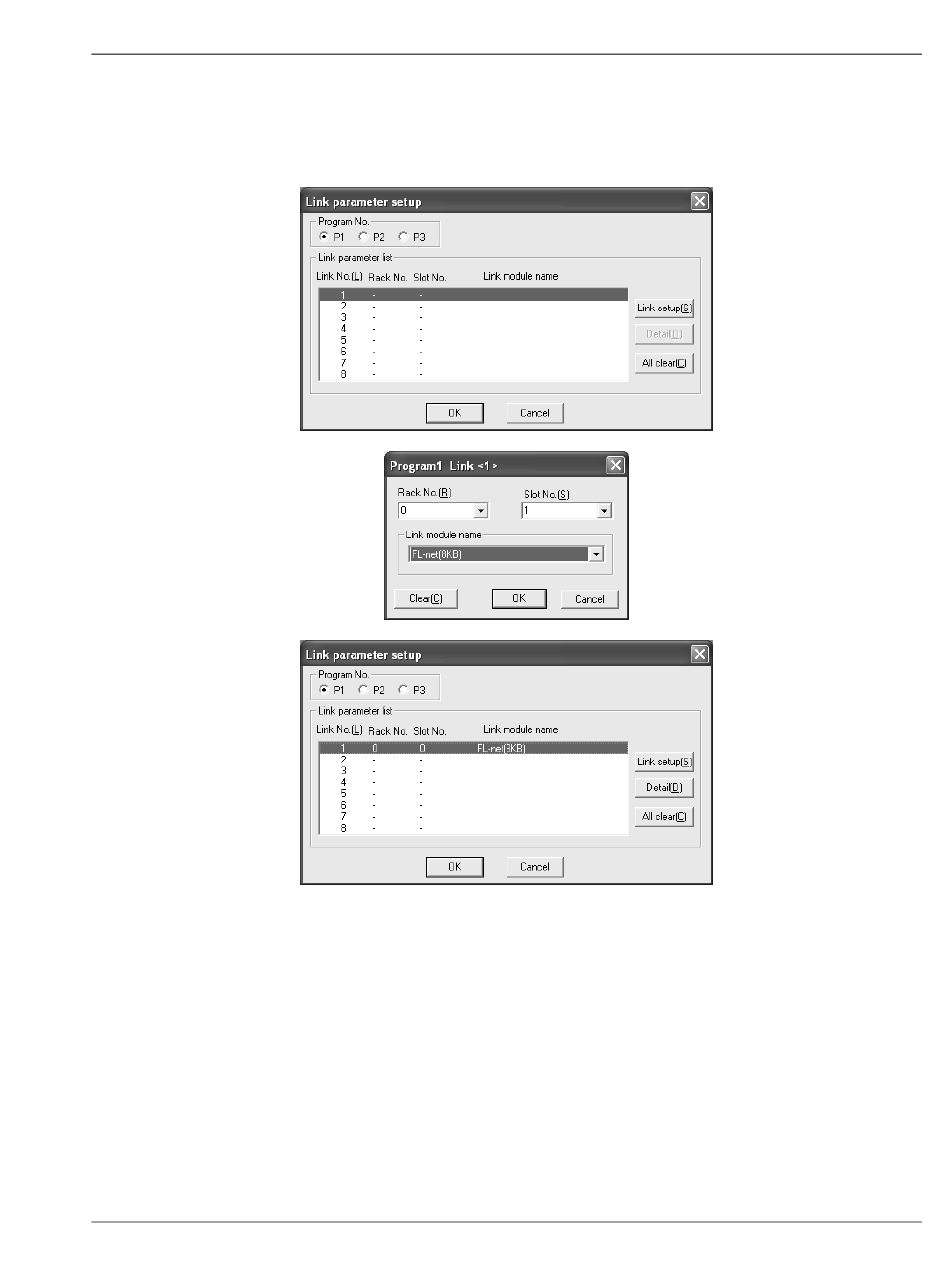

Select the link number to assign to the FL/ET-T-V2 module. For this example,
use Link No 1 for the FL/ET-T-V2 module. Double click the link row and
configure the correct slot, rack and module for link 1 as shown in the following
illustrations:
ProSoft Technology, Inc.
Configuring the MVI56E-FLN Module
User Manual
Page 47 of 155
