MVI56E-FLN ♦ ControlLogix Platform
FA Control Network Ethernet Communication Module

1.10 Using the RSLogix 5000 Sample Project

1.10.1 Opening the Sample Ladder Logic

The sample program for your MVI56E-FLN module includes custom tags, data
types and ladder logic for data I/O and status monitoring. For most applications,
you can run the sample ladder program without modification, or, for advanced
applications, you can incorporate the sample program into your existing
application.
The version number appended to the file name corresponds with the firmware
version number of your ControlLogix processor. The firmware version and
sample program version must match.
Determining the Firmware Version of Your Processor
Important: The RSLinx service must be installed and running on your computer
in order for RSLogix to communicate with the processor. Refer to your RSLinx
and RSLogix documentation for help configuring and troubleshooting these
applications.
1
Connect an RS-232 serial cable from the COM (serial) port on your PC to the
communication port on the front of the processor.
2
Start RSLogix 5000 and close any existing project that may be loaded.
3
Open the C
establish communication with the processor. This may take a few moments.
4

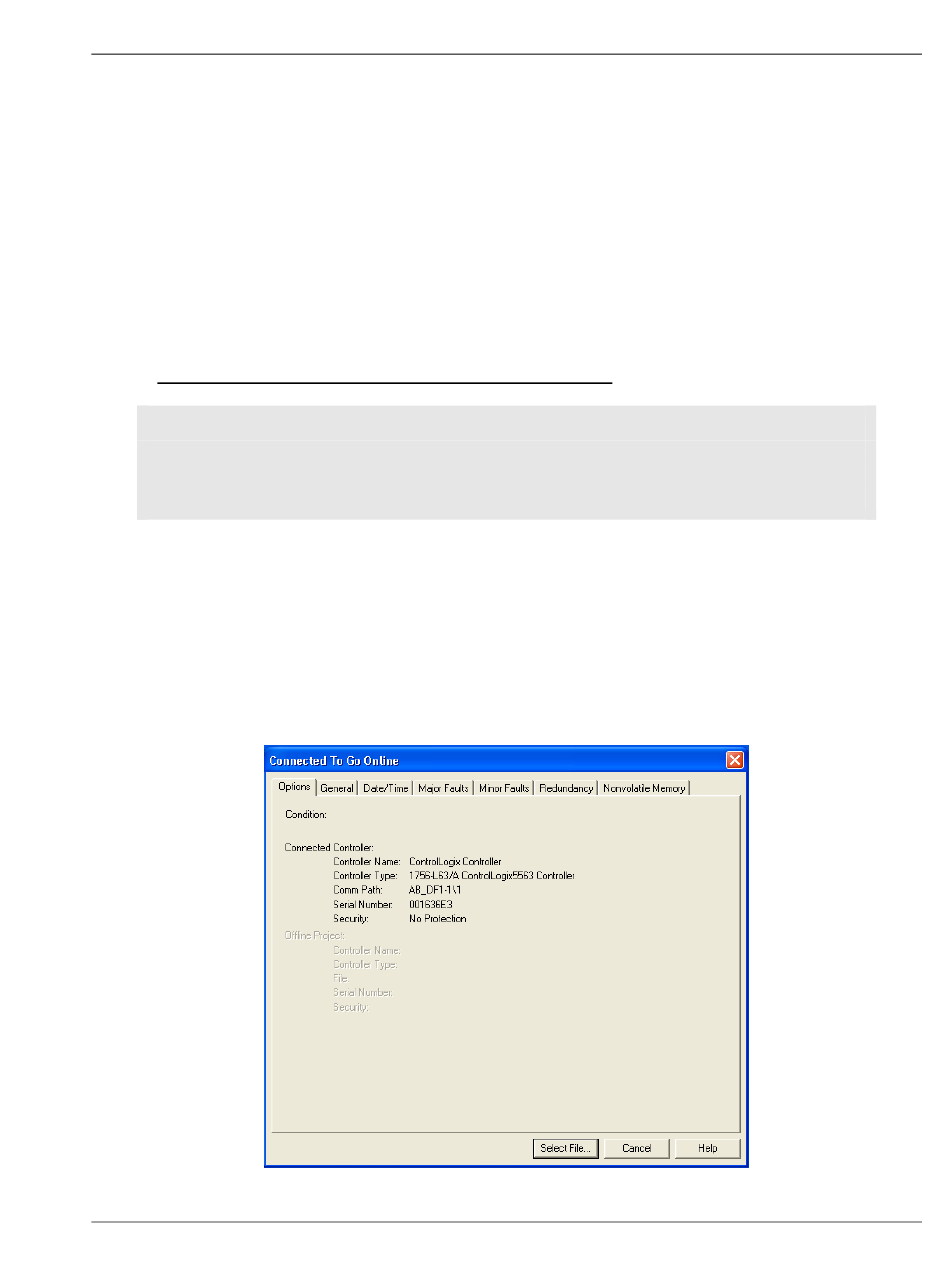

When RSLogix has established communication with the processor, the
Connected To Go Online dialog box will open.
ProSoft Technology, Inc.
menu and choose G
OMMUNICATIONS
O
. RSLogix will
O
NLINE
Start Here
User Manual
Page 23 of 155
