Transferring Data from MVI56E-FLN (Area 1) to FL/ET-T-V2 Module (Relay
Area)
The FLNETDATA.Output.Area1 controller tags transfer data from the module
Area 1 to the remote FL-net node Relay link area. For this example, use the

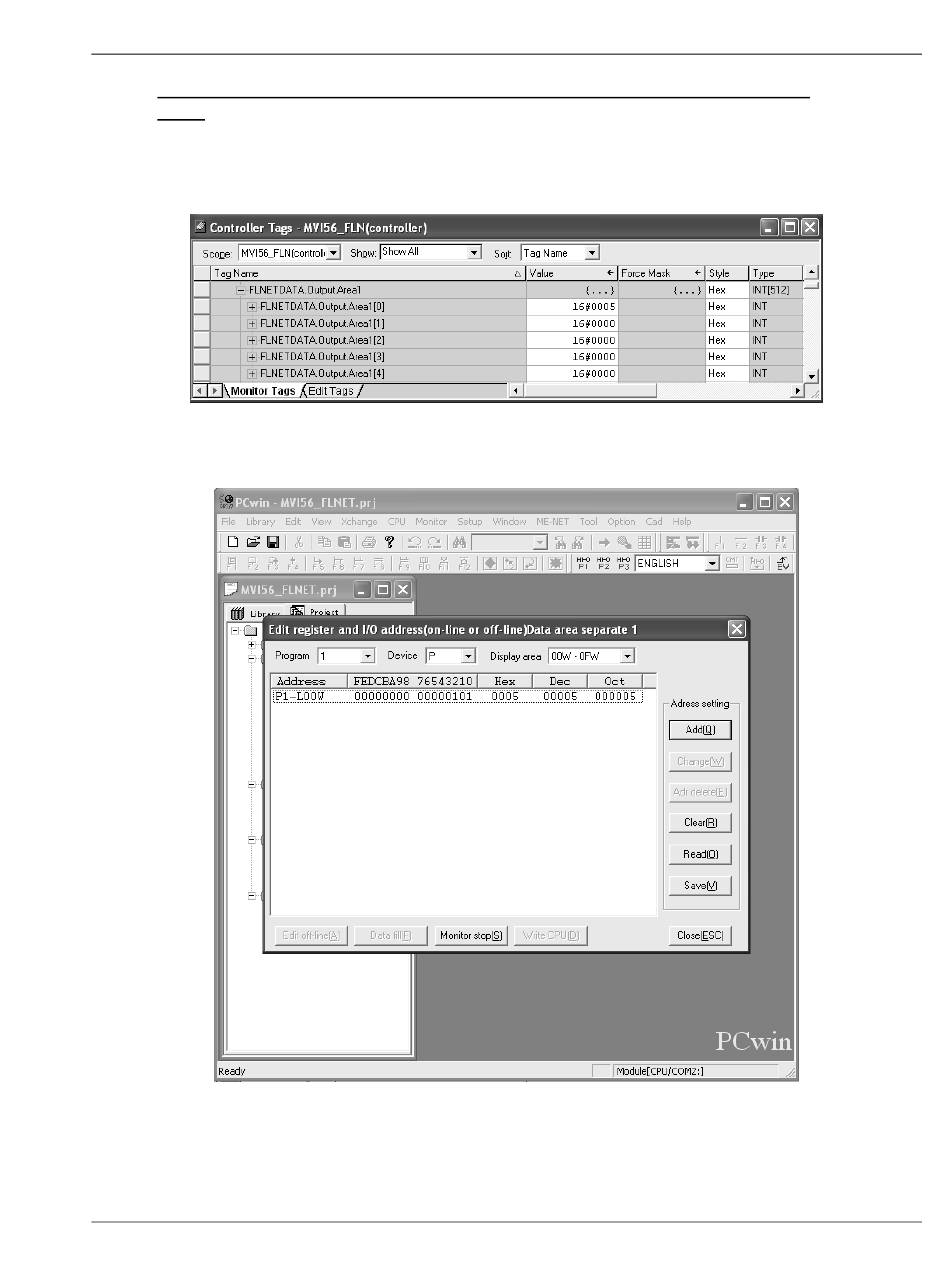

values in the following illustration:
Use the PCWin Register Address Monitor to monitor the value set by the module
(address L00W for our example).
