Setting Up A Temporary Ip Address - ProSoft MVI56E-FLN User Manual

MVI56E-FLN ♦ ControlLogix Platform
FA Control Network Ethernet Communication Module
1.8

Setting Up a Temporary IP Address

Important: ProSoft Configuration Builder locates MVI56E-FLN modules through
UDP broadcast messages. These messages may be blocked by routers or layer
3 switches. In that case, ProSoft Discovery Service will be unable to locate the
modules.
To use ProSoft Configuration Builder, arrange the Ethernet connection so that
there is no router/layer 3 switch between the computer and the module OR
reconfigure the router/layer 3 switch to allow the routing of the UDP broadcast
messages.

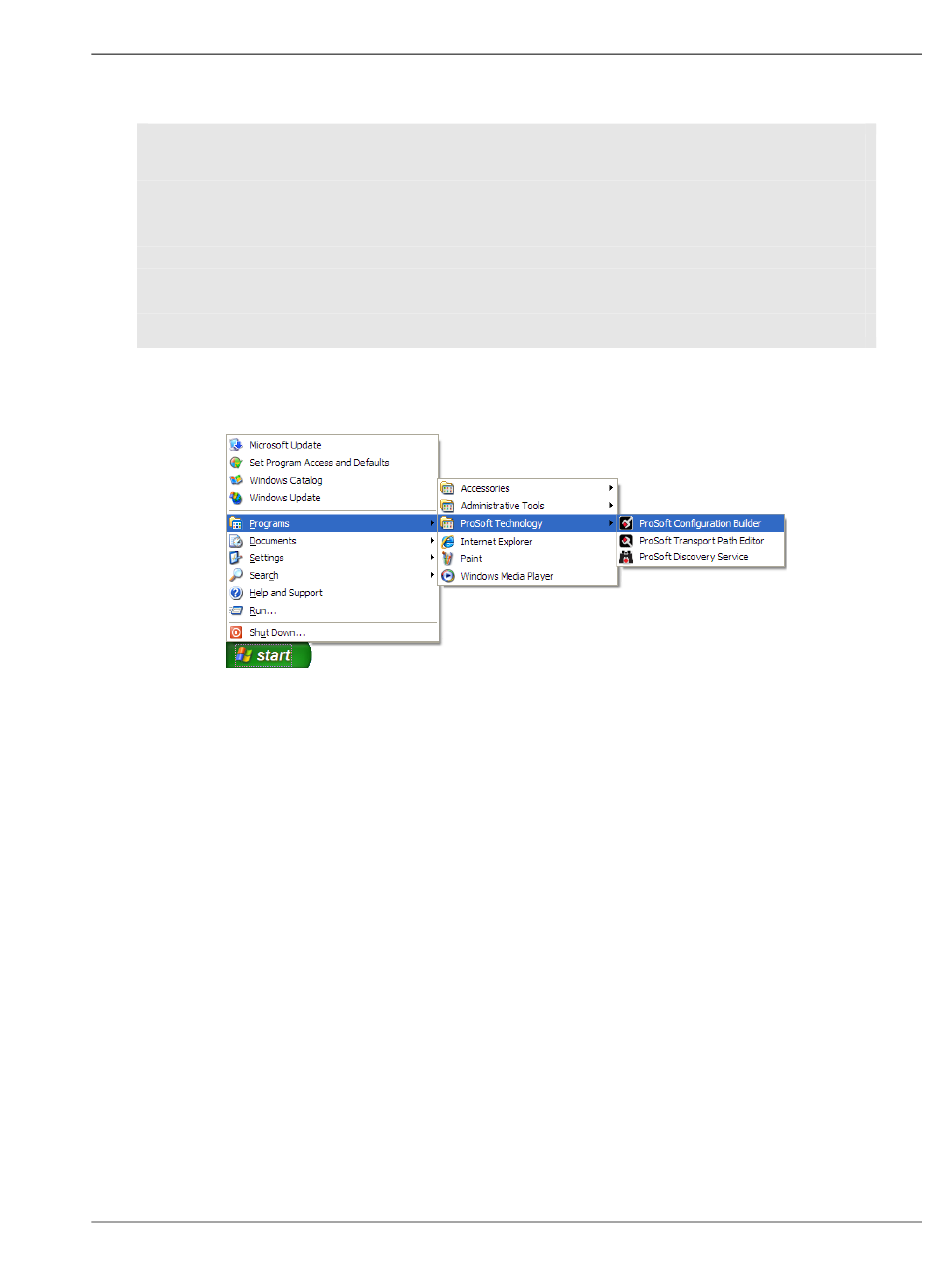

1 Click the S
T
ECHNOLOGY
2 Click to start ProSoft Configuration Builder.
ProSoft Technology, Inc.
button, and then navigate to P
TART
.
/ P S
ROGRAMS RO OFT
Start Here
User Manual
Page 17 of 155
