Chapter 5 Maintenance and Troubleshooting
5.4.1 Removal of the Fluidics Panel Assembly
To remove the Fluidics Panel Assembly:
1. Remove the four screws attaching it to the system (Figure 5-7).
2. Disconnect the Vacuum Tube from the bulkhead as shown in Figure 5-8.

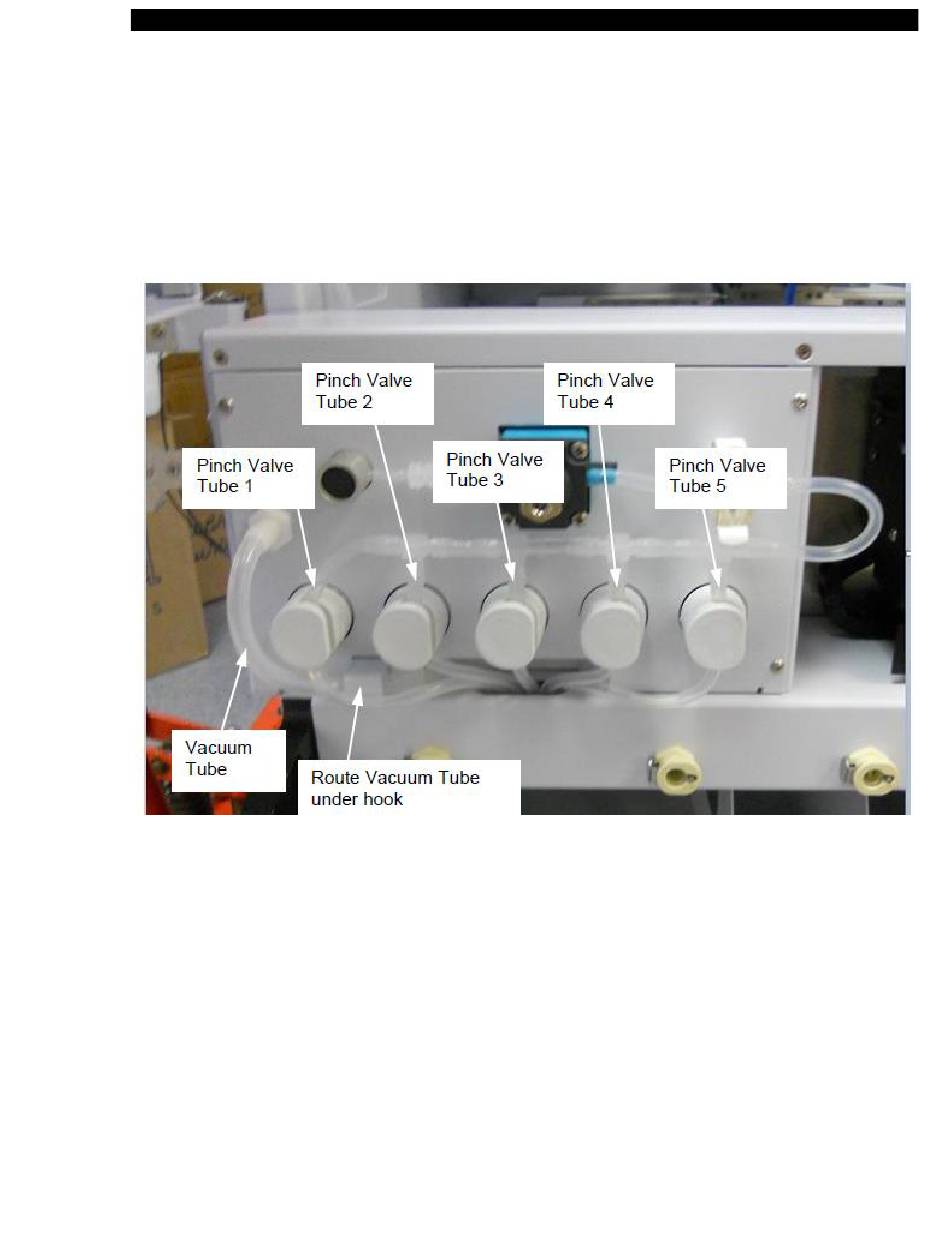

Figure 5-7: Fluidics Panel Assembly Connections
Agility System Operator's Manual
93
