1.6 Waste

a) Washer Waste Bottle
The system has a 1 X 10 L capacity washer waste bottle for holding aspirated wash
contents from the system washer. The waste bottle content weight is monitored by a weigh
cell to measure the quantity of fluid and trigger user alarm / notification / status of waste
bottle contents.
b) Tip Waste
Used sample tips are ejected to a tip waste reservoir, which is capable of holding a
minimum of 1334 sample tips (12 sample tip racks). The number of ejected tips is
recorded in the tip status and the user is notified if it requires emptying. If the user
removes the box, a prompt is provided to confirm that the tip waste reservoir was emptied
and counter reset.

1.7 Setting up for LIS-Link

LIS-Link is a separate application that may be installed to enable bidirectional communication
with the laboratory's LIS system. Worklists may be set up automatically according to
downloaded information from the LIS system. And results of processing and analysis can be
sent automatically or through operator efforts to the LIS system after completion. Consult the
LIS-Link manual for operation instructions.
Agility has been configured for serial communication to the LIS and a cable is included with
the accessory kit. It must be set up on site.
Communication port setup for LIS-Link and LIMS Host

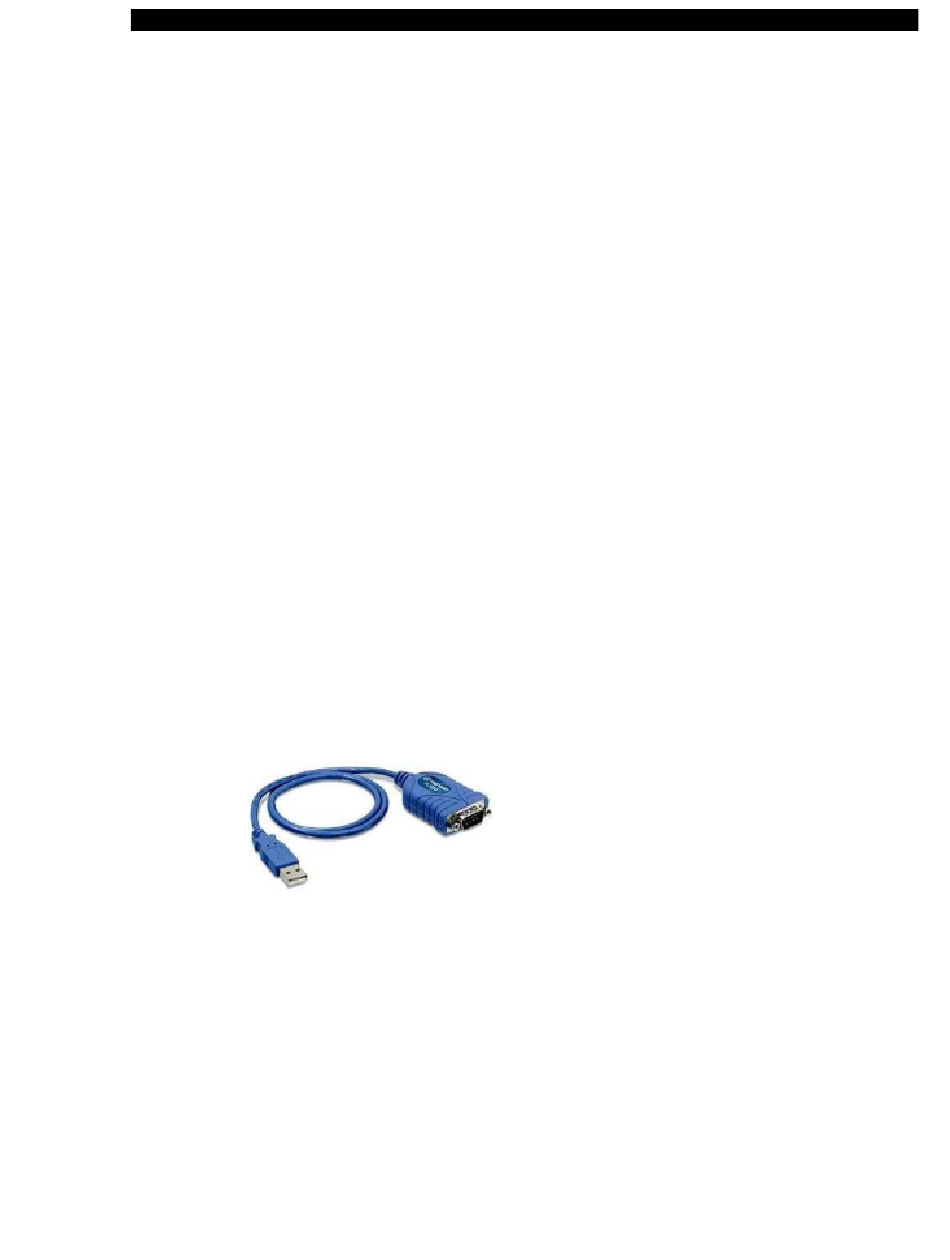

 USB to Serial converter
Figure 1-9: Serial converter cable
 Plug the converter into a USB port.
Three ports are available on the right side of the instrument at the power receptacle area in
the bottom rear as shown in Figure 1-9.
