1.3 Sample Rack

Samples are placed in a sample rack which is loaded into the system via a sample rack loader
(Figure 1-3) which houses a barcode reader and sensors for tube detection and tube size
detection. 10 sample tube racks which each hold 20 sample tubes are provided; each rack
holds sample tubes with physical dimensions of External Diameter 10-17mm, Internal
Diameter 8-14mm, Height 40-100mm. The system is capable of reading standard laboratory
sample barcode labels and identifying the position of each tube.

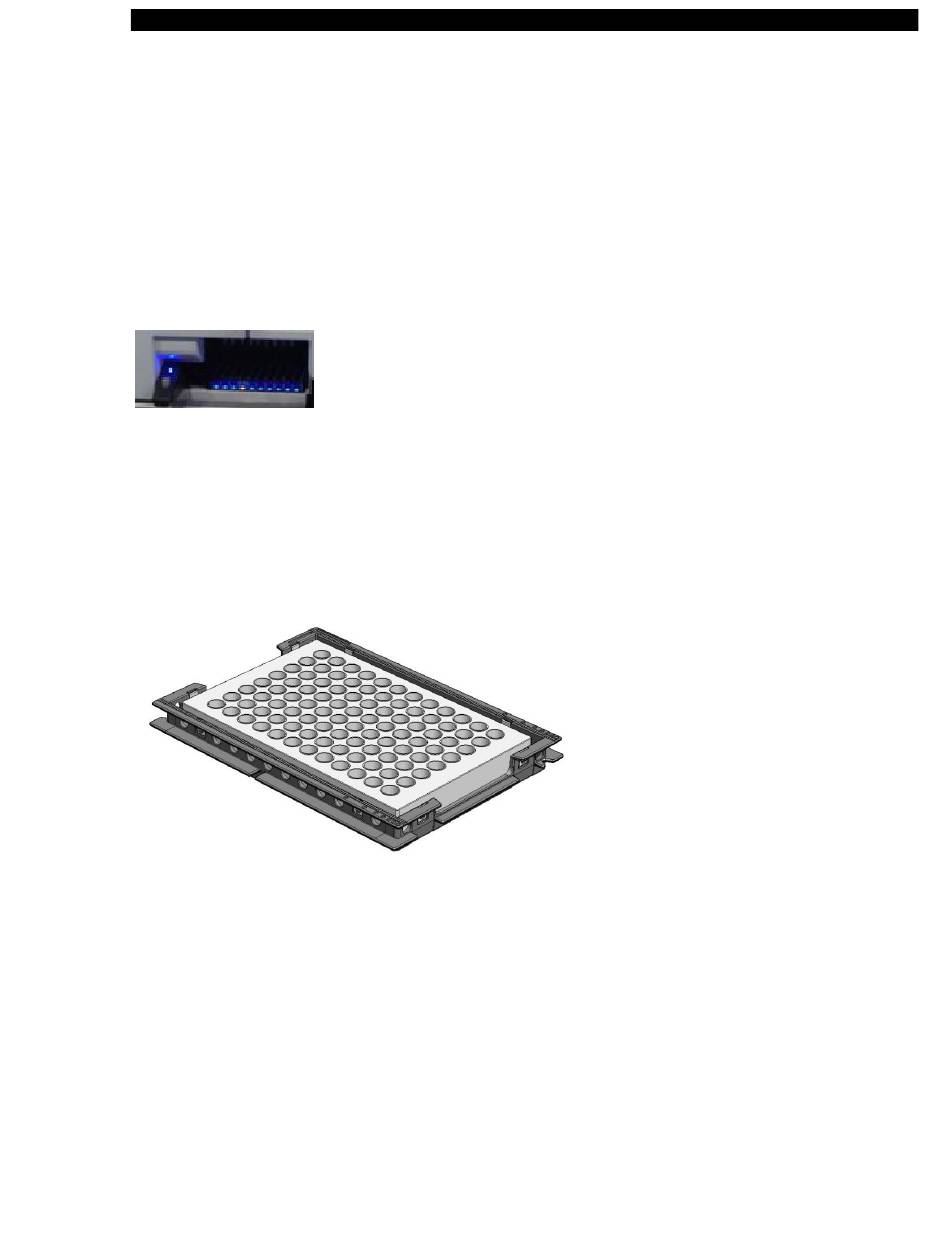

Figure 1-3: Sample Loader

1.4 Microplates

A microplate is inserted into a microplate holder (Figure 1-4) that is used to hold and aid
transportation of the microplate around the system. The microplate holder is marked with
white arrows on the end that is to be inserted into the loading bays and indicates the correct
orientation of the A1 position of the microplate relative to the holder.
Figure 1-4: Microplate and Holder
