Chapter 5 Maintenance and Troubleshooting

5.3.2 Replacing the Lamp

To replace the lamp:
1. Open the door to the Primary Optics Assembly
2. Slide out the Primary Optics Assembly (Figure 5-3).

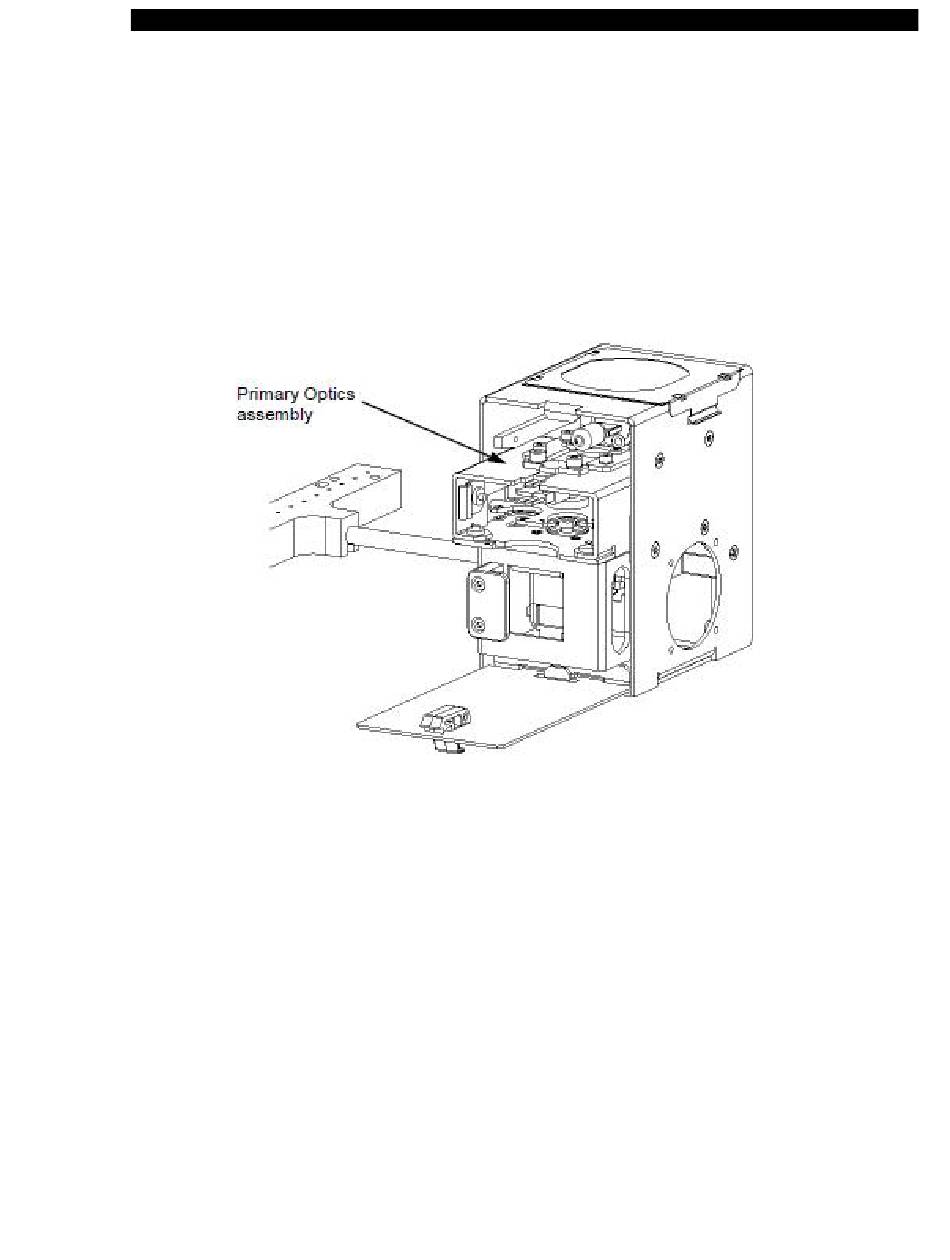

Figure 5-3: Primary Optics Assembly
3. Remove the Reader Lamp Assembly from Lamp Bracket by unscrewing the screws that
attach the assembly from the bracket. (Figure 5-4).
