Chapter 5 Maintenance and Troubleshooting

5.3 Replacing the Lamp Assembly and Filters

A lamp has a lifetime of approximately 2000 hours and can be readily replaced by the user.
Lamp replacement is described in Section 1.3.2
A 405 nm filter is placed in position 1 of the filter wheel which is mounted on the lamp
assembly and additional filters are fitted to meet the requirements of the facility. Replacement
of filters is described in Section 1.3.3.

5.3.1 Accessing the Lamp and Filters

The Reader Assembly is located in the Reader Enclosure and can be removed from the system
by removing the two fittings as shown in Figure 5-2.

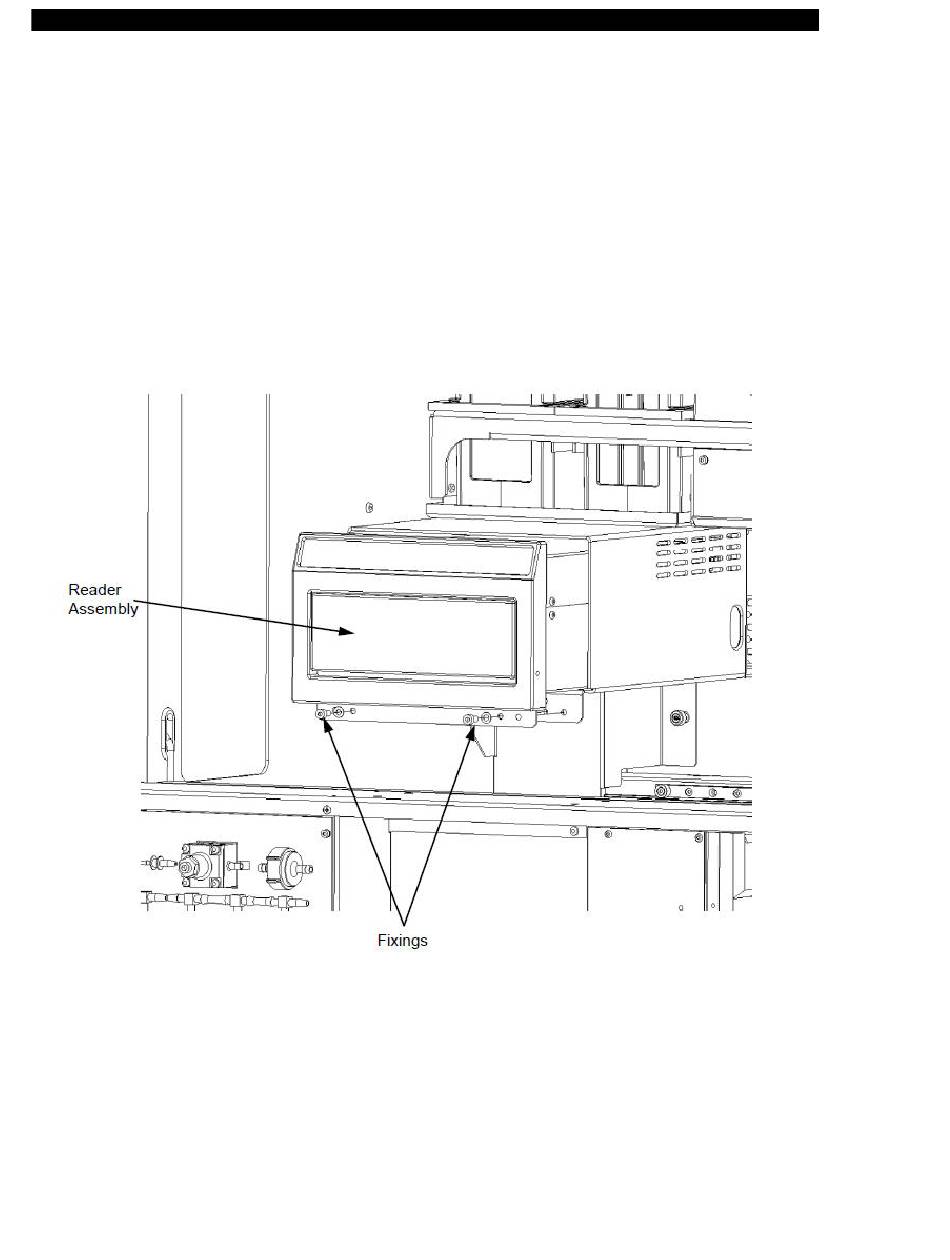

Figure 5-2: Reader Assembly
