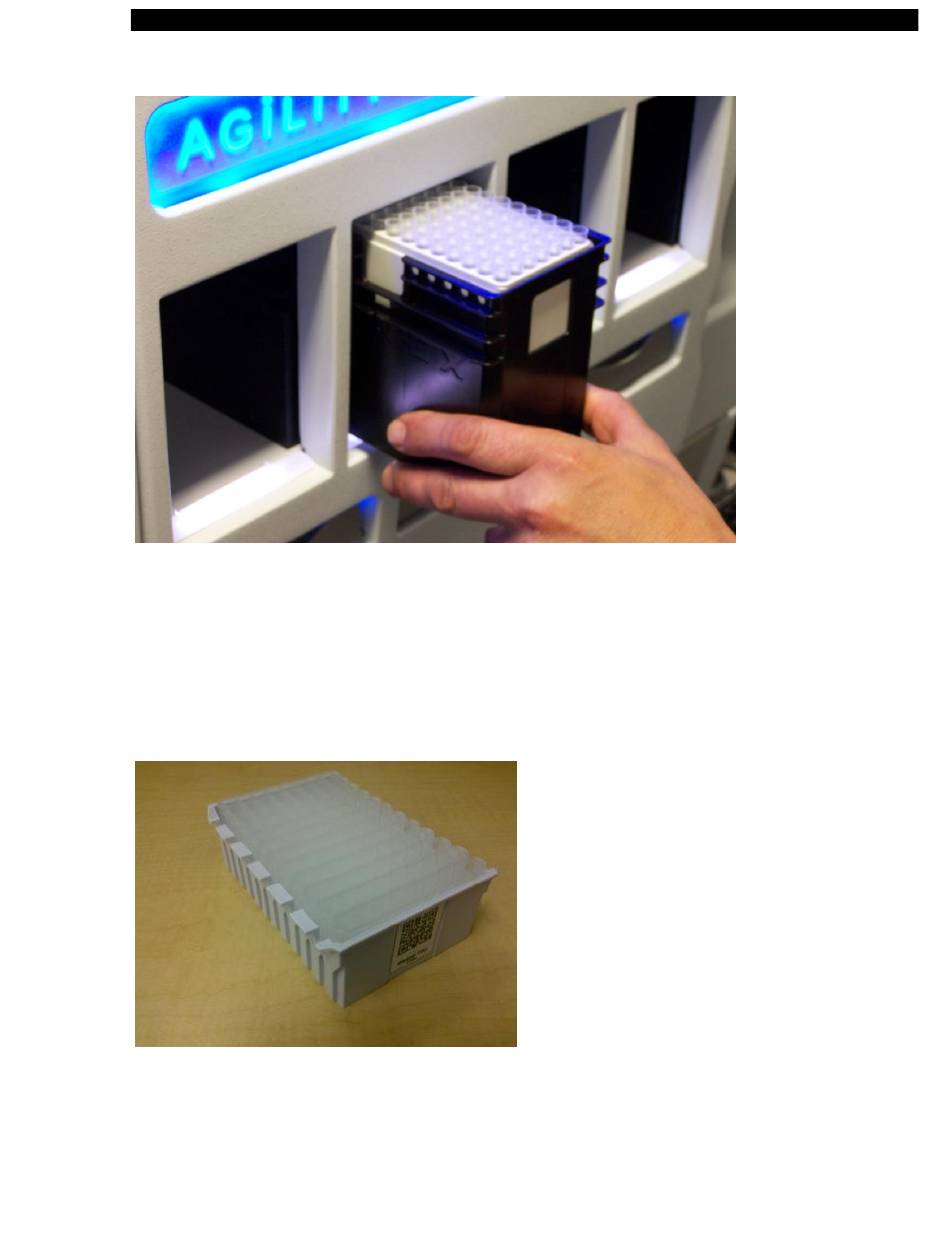

Figure 1-6: Reagent Tip Rack
c) Deep Well Strip Holder - The deep well strip holder (Figure 1-7) holds 12 deep well strips
for the system to perform deep well pre-dilutions of controls and samples. The deep well
strip holder is loaded on to a consumable drawer and may be loaded in either orientation
that fits into any of the four locations on a drawer. The deep well strip holder is refillable
with deep well strips and has a two-dimensional barcode located on one side of the narrow
end of the holder for the camera on the transport arm to identify the consumable as a deep
well strip holder.
Figure 1-7: Deep Well Strips in Holder
