Chapter 5 Maintenance and Troubleshooting

5.3.3 Replacing the Filter

A 405 nm filter is placed in position 1 of the filter wheel (Figure 5-5) which is mounted on the
lamp assembly and additional filters are fitted to meet the requirements of the facility.
On a periodic basis, it may be necessary to change a filter. To replace a filter, remove the
existing filter and install a new filter into the desired position of the Filter Wheel. Push filter
past spring tines such that annular grove aligns with the filter wheel slot.

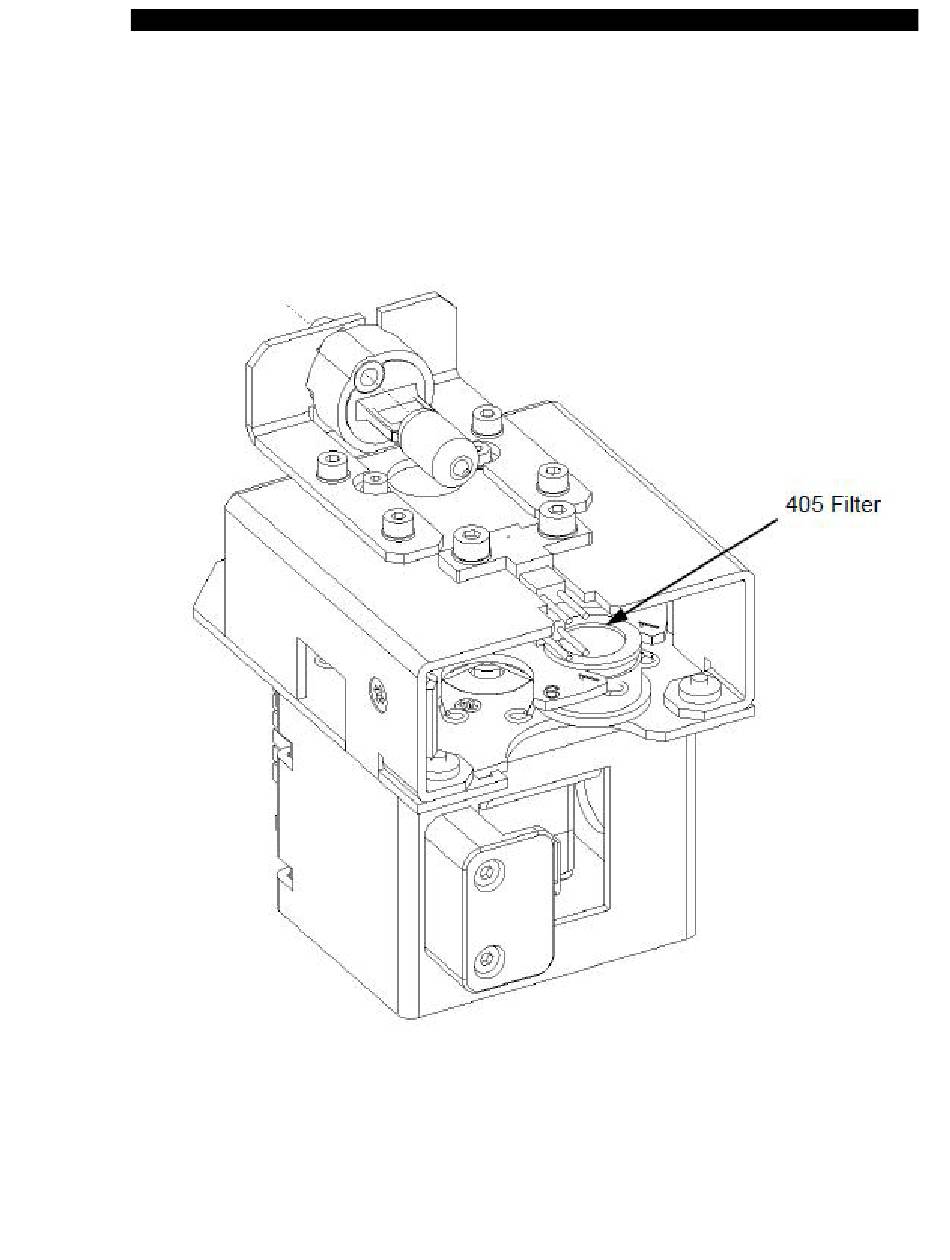

Figure 5-5: 405 Filter

Note: Position 1 must contain a 405 nm filter.
