Chapter 1 Overview

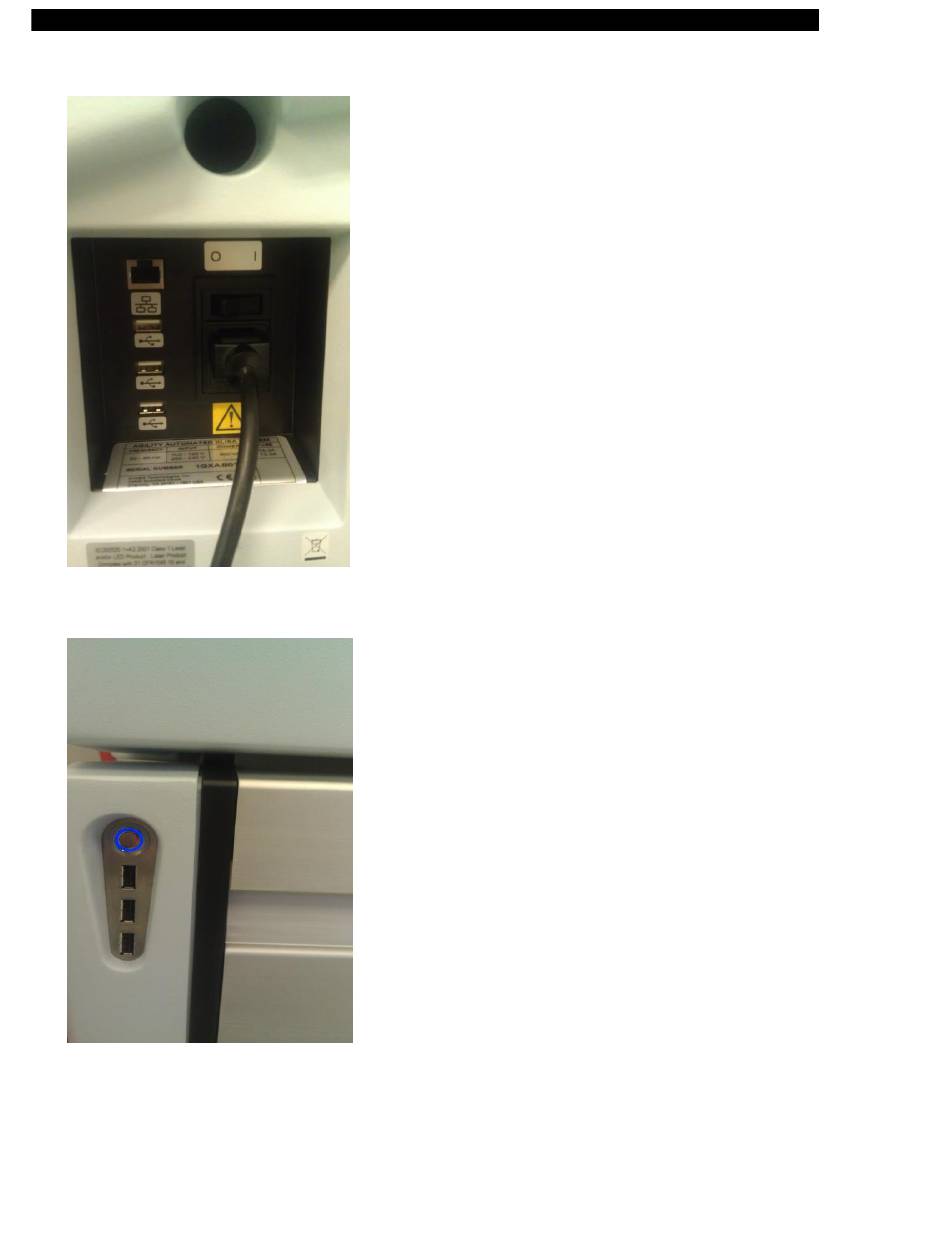

Figure 1-10: Power receptacle area
Three more are located in the power switch area in the front on the lower left.
Figure 1-11: Power switch area
 Setup of the port
Each port is automatically assigned a name by Windows. However, LIS-Link software
only recognizes port names COM1 to COM9.
16
Agility System Operator's Manual
