3.5 Reagent Pipettor Arm

3.5.1 Overview

The Reagent Pipettor arm (Figure 3-6) is used for the following operations:
 Get a new reagent tip from the reagent tip rack
 Eject a used reagent tip back to the reagent tip rack
 Transfer reagent fluid from a reagent bottle in a reagent pack to a microplate well
 Transfer reagent fluid from a reagent bottle in a reagent pack to a deep well dilution strip
well.
 Transfer reagent fluid from a reagent bottle in a reagent pack to a mixing well
 Mix reagent fluids (through aspirating/dispensing) in a mixing well
 Transfer fluid from a mixing well to a microplate well/dilution strip well

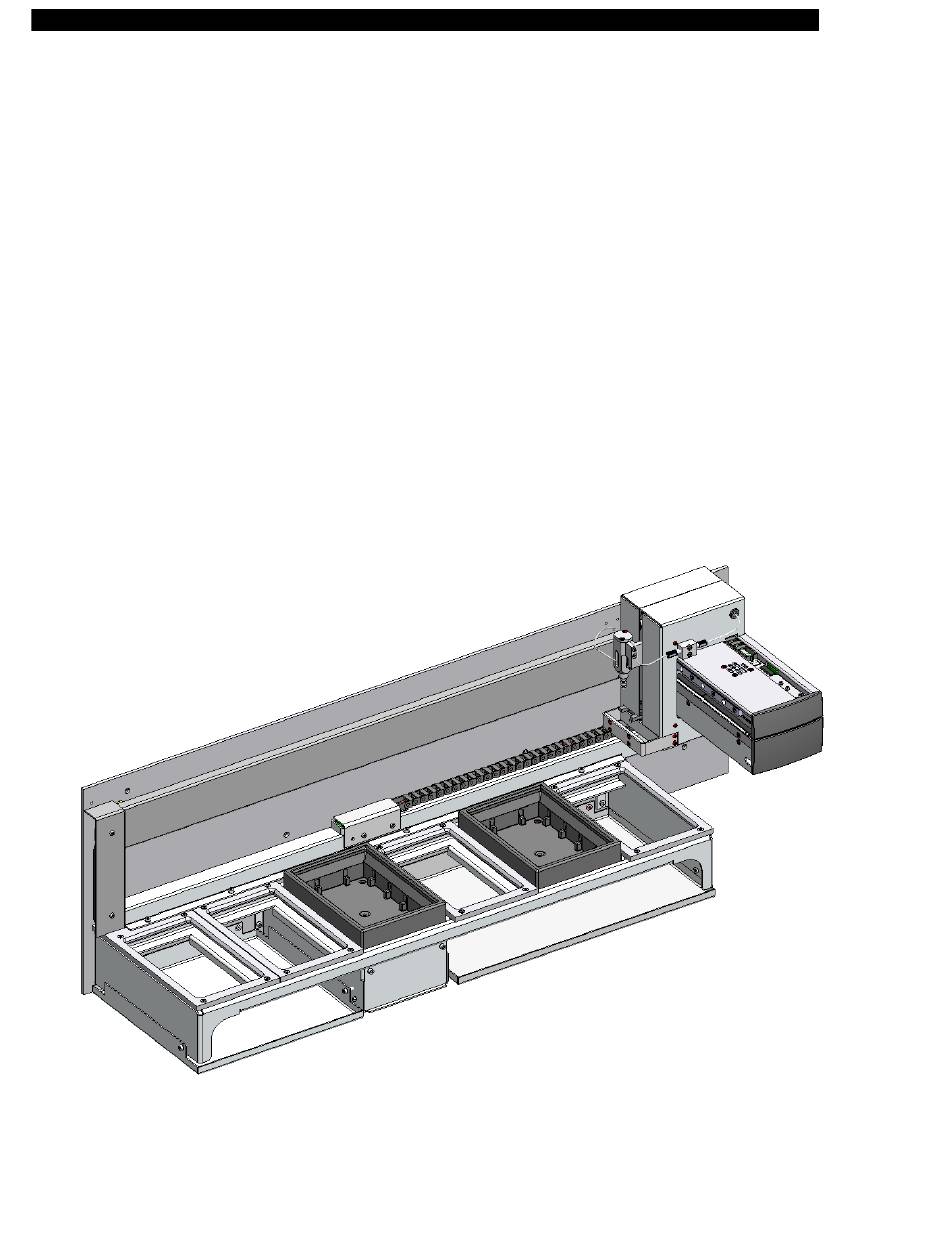

Figure 3-5: Reagent Pipettor Arm
