Icom RS-BA1 Installation Manual page 93

5

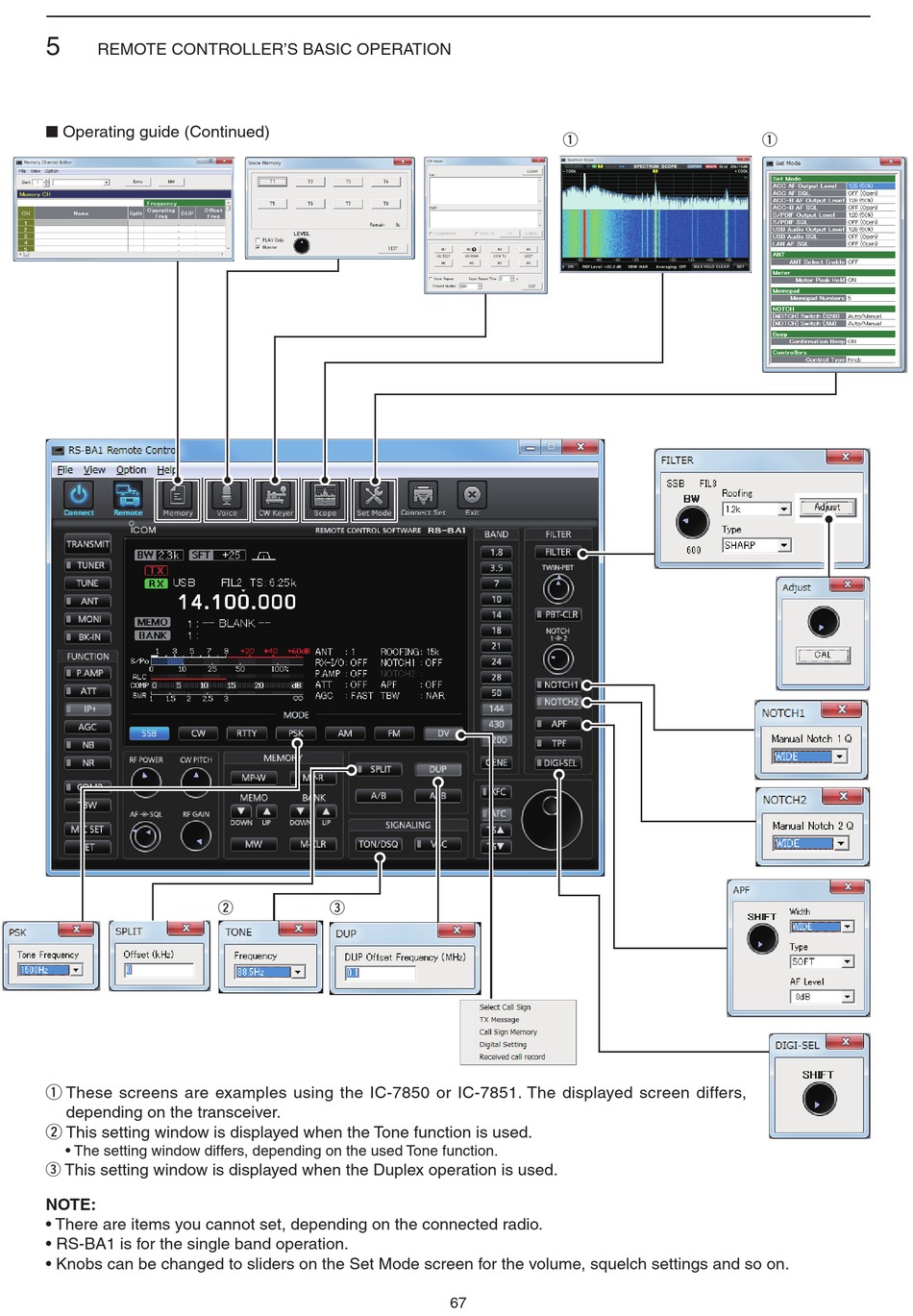

REMOTE CONTROLLER'S BASIC OPERATION
■ Operating guide (Continued)
w
q These screens are examples using the IC-7850 or IC-7851. The displayed screen differs,
depending on the transceiver.
w This setting window is displayed when the Tone function is used.
• The setting window differs, depending on the used Tone function.
This setting window is displayed when the Duplex operation is used.
e
NOTE:
• There are items you cannot set, depending on the connected radio.
• RS-BA1 is for the single band operation.
• Knobs can be changed to sliders on the Set Mode screen for the volume, squelch settings and so on.
e
67
