WHEN CONNECTING TO THE NETWORK THROUGH A PC
■ Conncting the radio to the Base station's PC (Continued)

D When connecting to the radio's [RS-232C] port

For IC-7800 users
When you turn your radio ON or OFF from the Remote Controller, connect to the radio's [Remote] jack or to the net-
work directly.
1. System requirements
• A PC that has an RS-232C port
• Icom CI-V command capable radio that has an [RS-
232C] port
• An RS-232C cable (purchase separately)
• Two S/P DIF digital cables or stereo audio cables
(purchase separately)

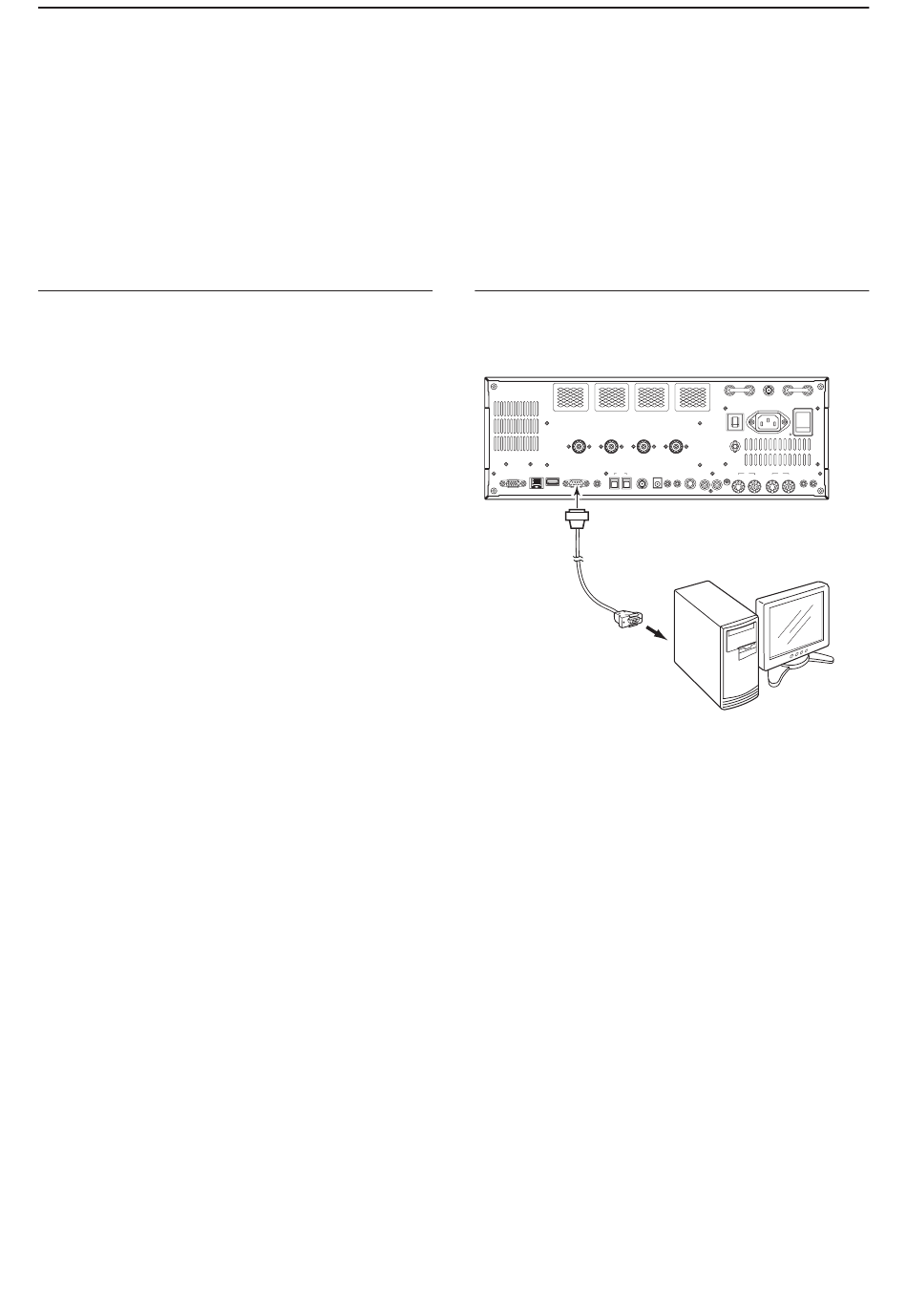

2. Connect a remote control system
Connect an RS-232C cable between the radio and
the base station's PC.
Radio (Rear panel)
RS-232C OUT
To the [RS-232C] port
RS-232C cable
To an RS-232C port
19
B
S/P DIF A
IN ACC 2 ACC 1
ACC 2 ACC 1
EXT-SP
SUB MAIN
PC
