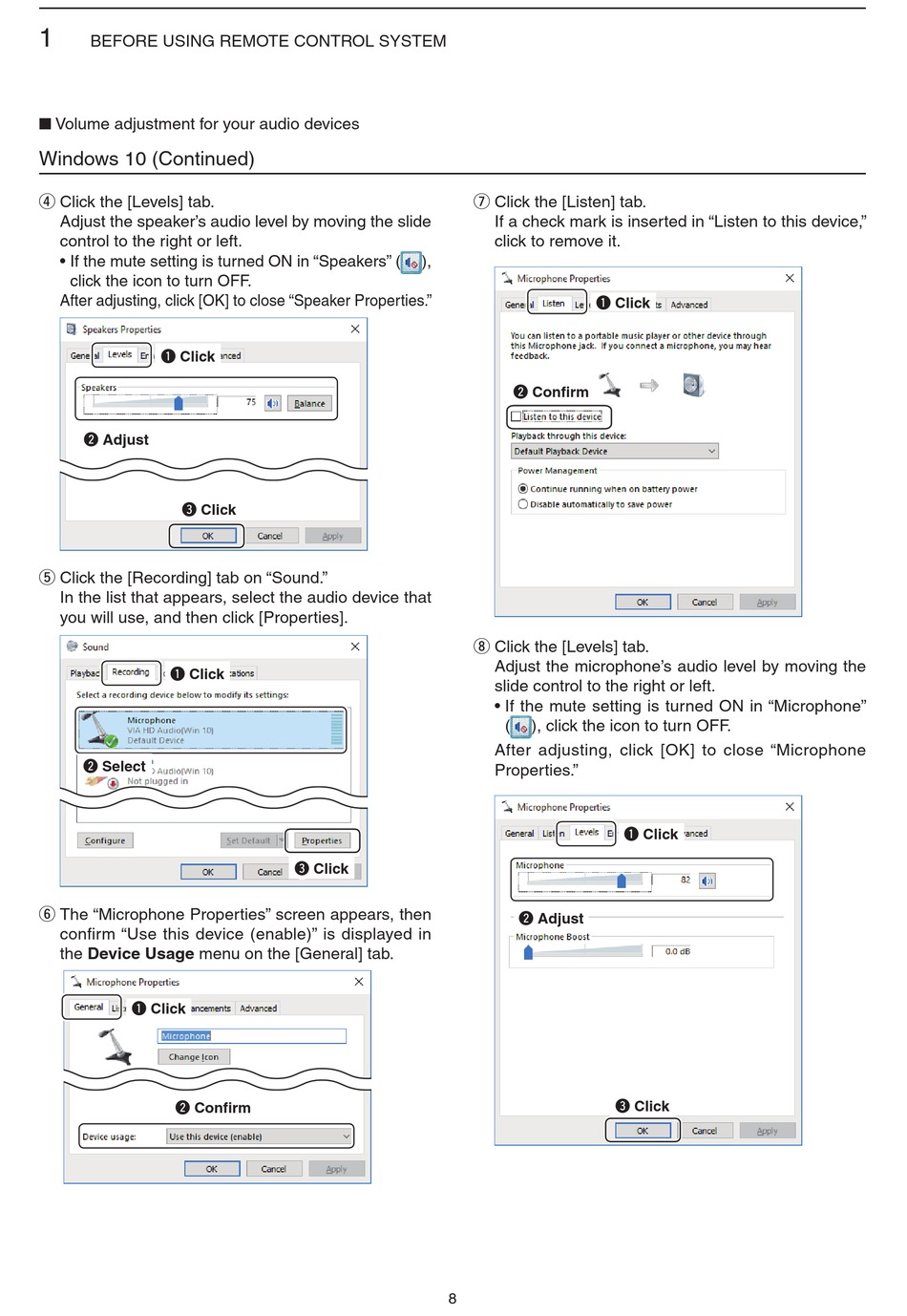

Icom RS-BA1 Installation Manual page 34

1
BEFORE USING REMOTE CONTROL SYSTEM
■ Volume adjustment for your audio devices
Windows 10 (Continued)
r Click the [Levels] tab.
Adjust the speaker's audio level by moving the slide
control to the right or left.
• If the mute setting is turned ON in "Speakers" (
click the icon to turn OFF.
After adjusting, click [OK] to close "Speaker Properties."
q Click
w Adjust
e Click
t Click the [Recording] tab on "Sound."
In the list that appears, select the audio device that
you will use, and then click [Properties].
q Click
w Select
y The "Microphone Properties" screen appears, then
confirm "Use this device (enable)" is displayed in
the Device Usage menu on the [General] tab.
q Click
w Confirm
),
e Click
8
u Click the [Listen] tab.
If a check mark is inserted in "Listen to this device,"
click to remove it.
q Click
w Confirm
i Click the [Levels] tab.
Adjust the microphone's audio level by moving the
slide control to the right or left.
• If the mute setting is turned ON in "Microphone"
( ), click the icon to turn OFF.
After adjusting, click [OK] to close "Microphone
Properties."
q Click
w Adjust
e Click
